ELECTRICAL SYSTEM
B2420, WSM
9-M15
4. LIGHTING SYSTEM
The lighting system consists of combination switch (lamp switch and hazard switch), head lamp, tail lamp, hazard
lamp, etc..
9Y1210436ELM0009US0
[1] HEAD LAMP
The head light switch, which forms a combination switch with the turn signal lamp switch and horn switch, has
three positions; OFF, LOW-BEAM and HIGH-BEAM.

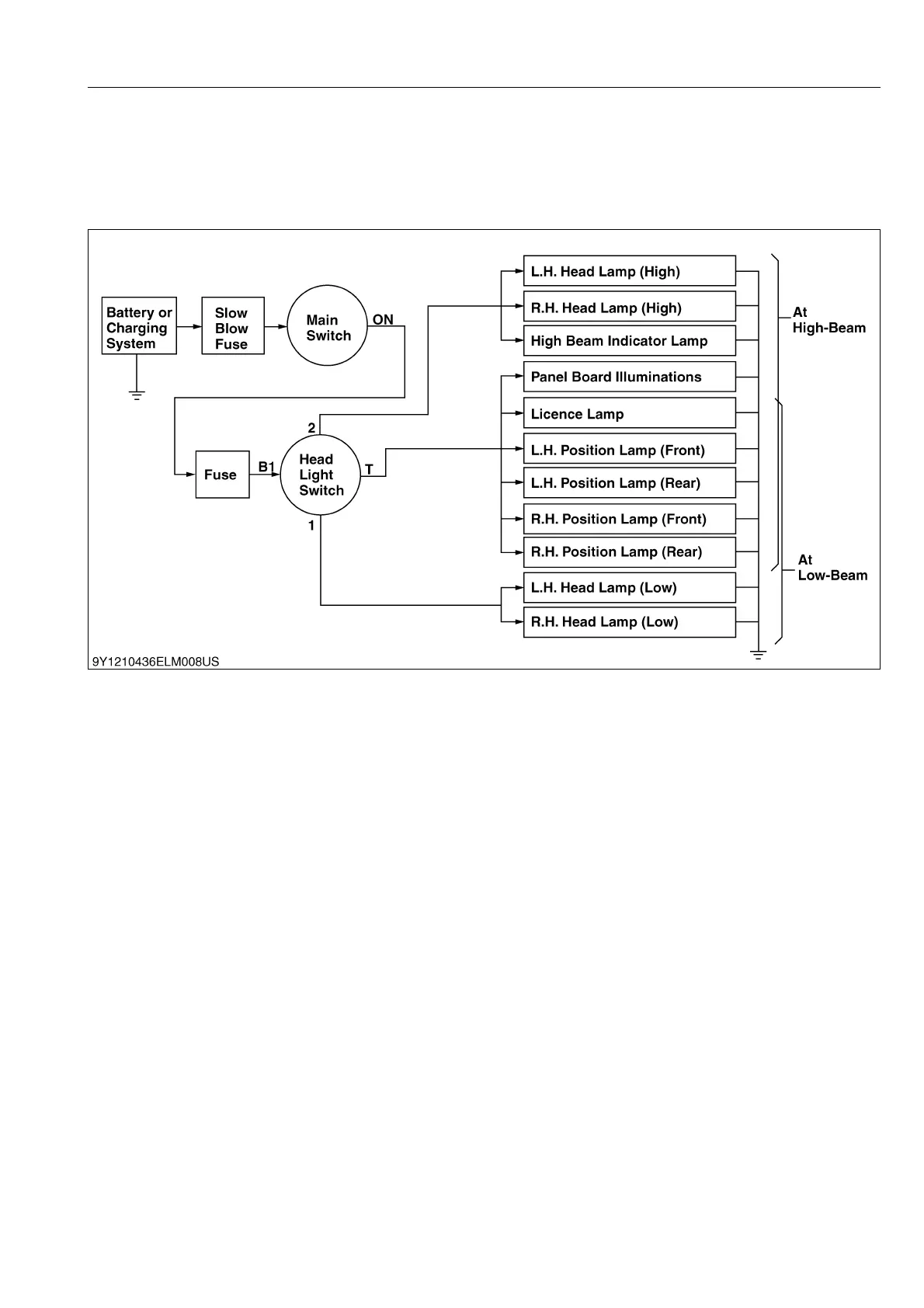

Current passes through the light circuit as shown in the figure above.
9Y1210436ELM0010US0
