CLUTCH
B2420, WSM
2-S5
[2] PREPARATION
(1) Separating Engine from Clutch Housing
Mid Mounting ROPS [If Equipped]
• See page 1-S19.
9Y1210436CLS0005US0

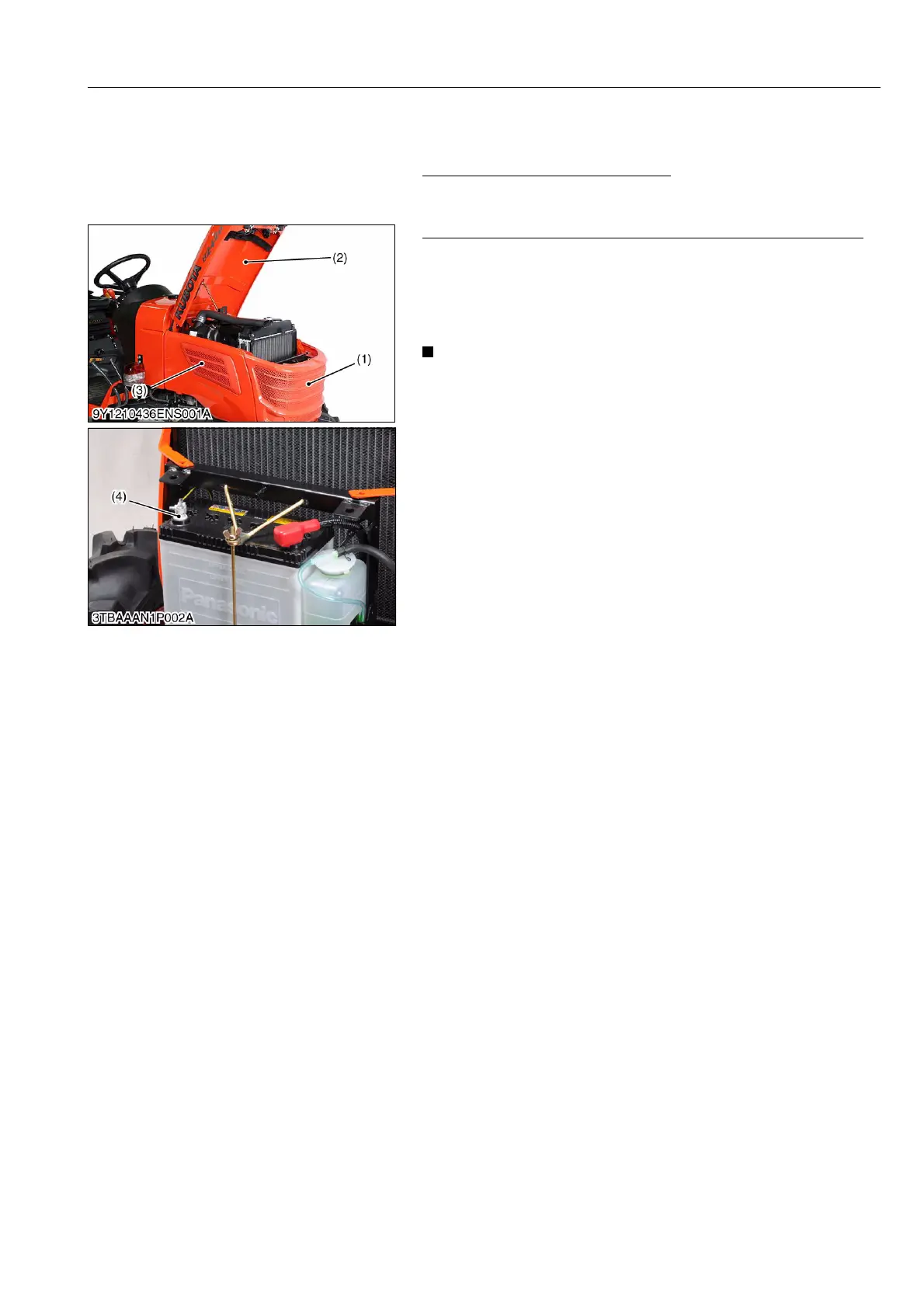

Bonnet, Front Grille, Side Cover and Battery Negative Cable
1. Open the bonnet (2) and remove the front grille (1).
2. Disconnect the battery negative cable (4).
3. Disconnect the head light connectors, horn connectors and
remove the bonnet (2).
4. Remove the side covers (3).
NOTE
• When disconnecting the battery cables, disconnect the
negative cable (4) first. When connecting, positive cable
first.
9Y1210436ENS0020US0
(1) Front Grille
(2) Bonnet
(3) Side Cover
(4) Battery Negative Cable
KiSC issued 06, 2012 A
