ELECTRICAL SYSTEM
B2420, WSM
9-M13
[2] WITH OPC MODEL
The charging system supplies electric power for various electrical devices and also charges the battery while the
engine runs. It consists of a alternator.
9Y1210436ELM0029US0

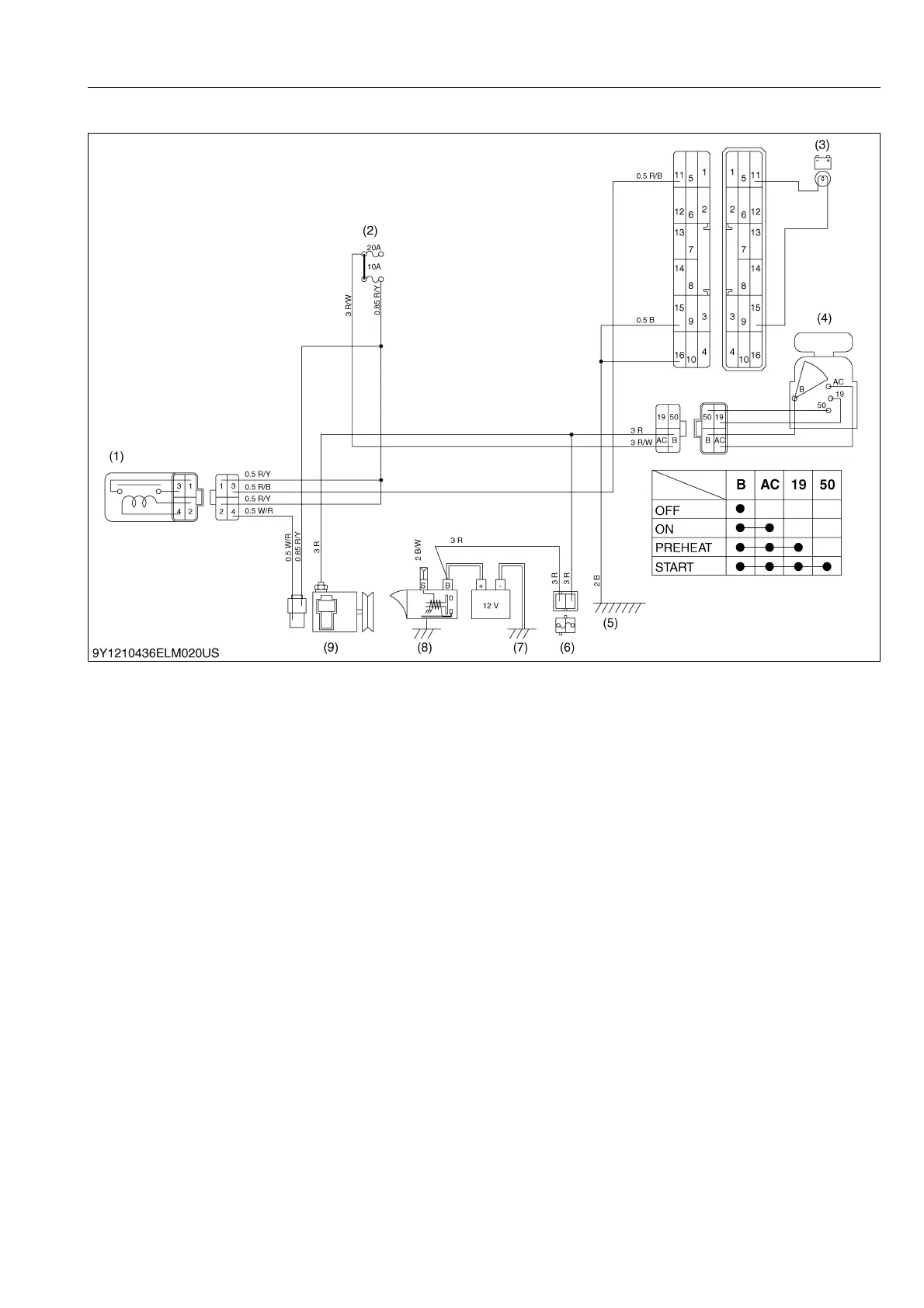

(1) Relay
(2) Fuse
(3) Charging Lamp
(4) Main Switch
(5) Frame Earth
(6) Slow Blow Fuse
(7) Battery
(8) Starter Motor
(9) Alternator
