wsm B2420 - 5. AUXILIARY HYDRAULICS

HYDRAULIC SYSTEM
B2420, WSM
8-M9
5. AUXILIARY HYDRAULICS
[1] HYDRAULIC BLOCK TYPE OUTLET
The hydraulic block type outlet is located at the right
hand side of the engine.
This hydraulic block type outlet is provided to take
power out from the tractor to operate the hydraulic
cylinders on the implement, such as front end loader,
front blade and so on.
9Y1210436HYM0012US0

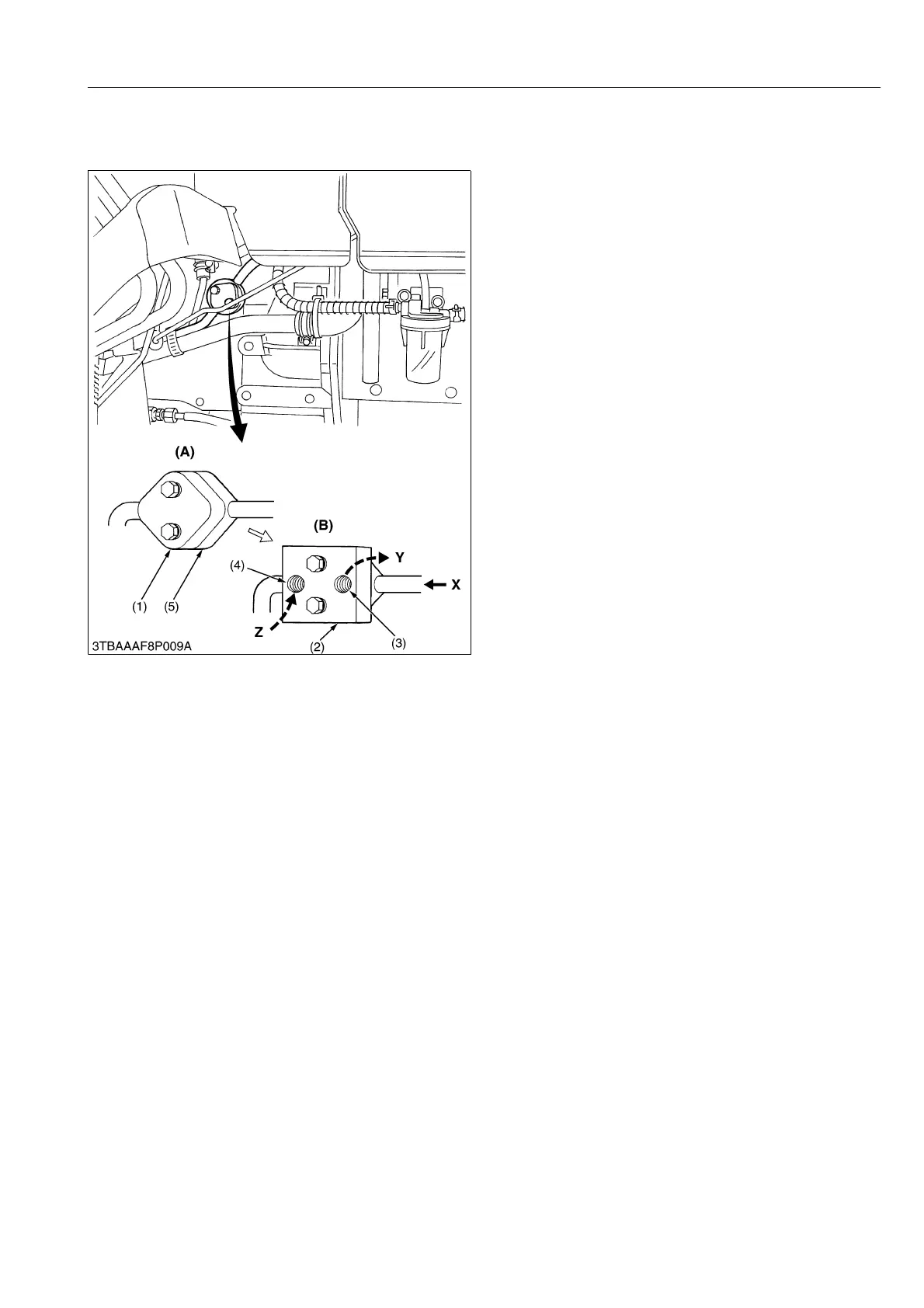

(1) Block Cover
(2) Block Outlet Cover (Option)
(3) Outlet
(4) Inlet
(5) Hydraulic Block
(A) When implement is not
attached
(B) When implement is
attached
X: From Gear Pump
Y: To Implement Inlet Max.
flow
16.6 L/min
(4.4 U.S.gals/min)
No relief valve in the
hydraulic block.
Z: From Implement Outlet
KiSC issued 06, 2012 A
