wsm B2420 - Starter

ELECTRICAL SYSTEM
B2420, WSM
9-M8
[3] STARTER

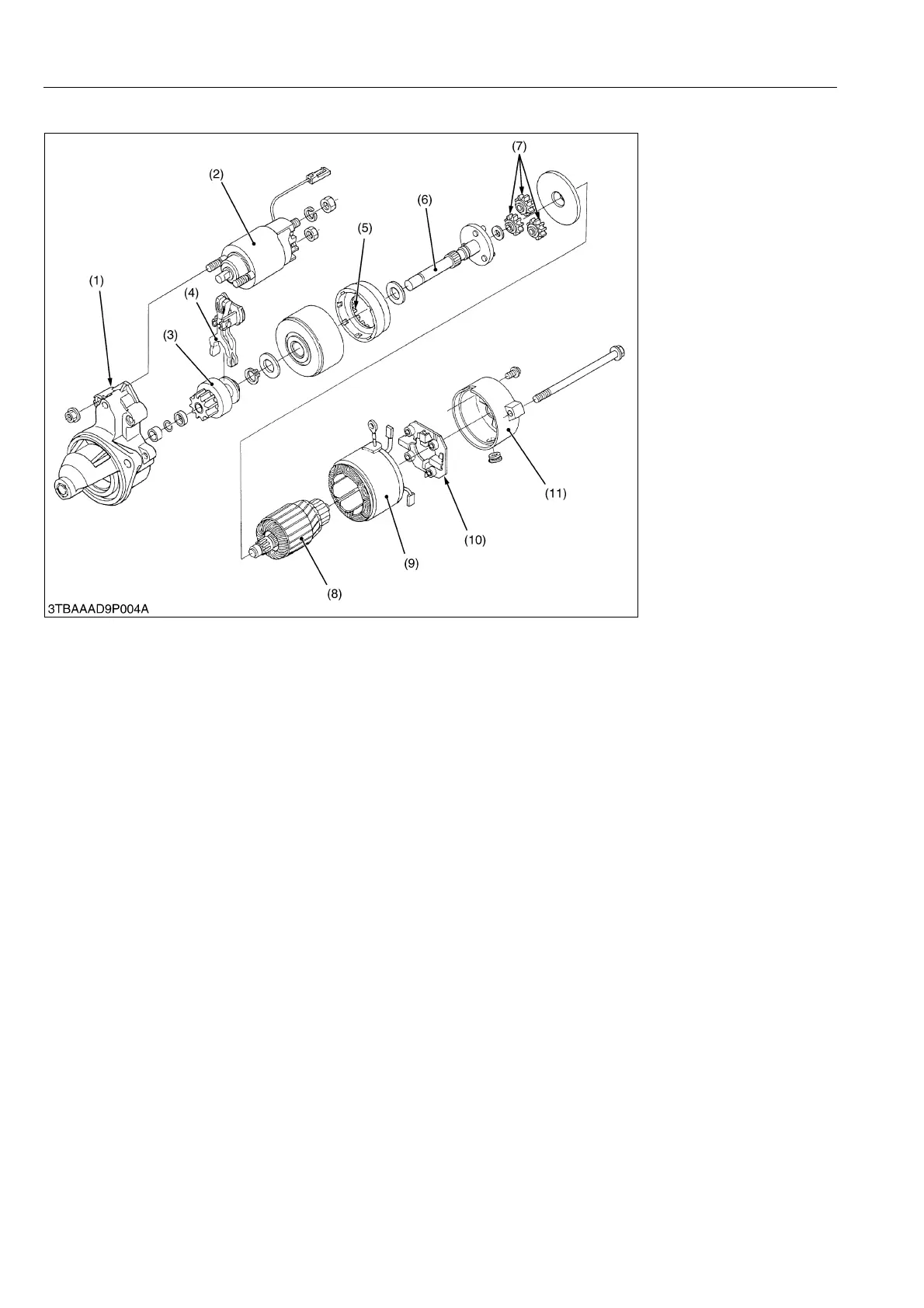

The starter is a reduction type.
The reduction system uses planetary gears, and the speed of gear shaft (6) is reduced to approximately one fifth
of the armature shaft (8).
9Y1210436ELM0003US0
(1) Housing
(2) Magnetic Switch
(3) Overrunning Clutch
(4) Drive Lever
(5) Internal Gear
(6) Gear Shaft
(7) Planetary Gear
(8) Armature Shaft
(9) Yoke
(10) Brush Holder
(11) Rear End Frame
KiSC issued 06, 2012 A
