BRAKES
B2420, WSM
5-S5
[2] DISASSEMBLING AND ASSEMBLING
(1) Brake Pedal
1. Remove the cotter pins of brake rods (3) and pull out the brake rods (3).
2. Remove the return spring (2), (12).
3. Remove the external snap ring (1) at the end of the brake pedal shaft (13).
4. Remove the pin (17) of the brake pedal, L.H. (18).
5. Remove the clutch pedal rod (16).
6. Pull the right and left brake pedals from the brake pedal shaft (13).
7. Tap out the brake pedal shaft (13) to the left, and remove it with the clutch pedal (14).
8. Remove the snap pins of parking brake rods (4), (6) and pull out the parking brake rod (4), (6).
9. Remove the pin (8) of the parking brake lever, L.H. (7) and remove the parking brake rod 2 (9).
10. Remove the parking brake lever, L.H. (7) and pull out the parking brake lever, R.H. (5).
(When reassembling)
• Apply grease to the brake pedal shaft (13) and parking brake lever, R.H. (5).
9Y1210436BRS0001US0

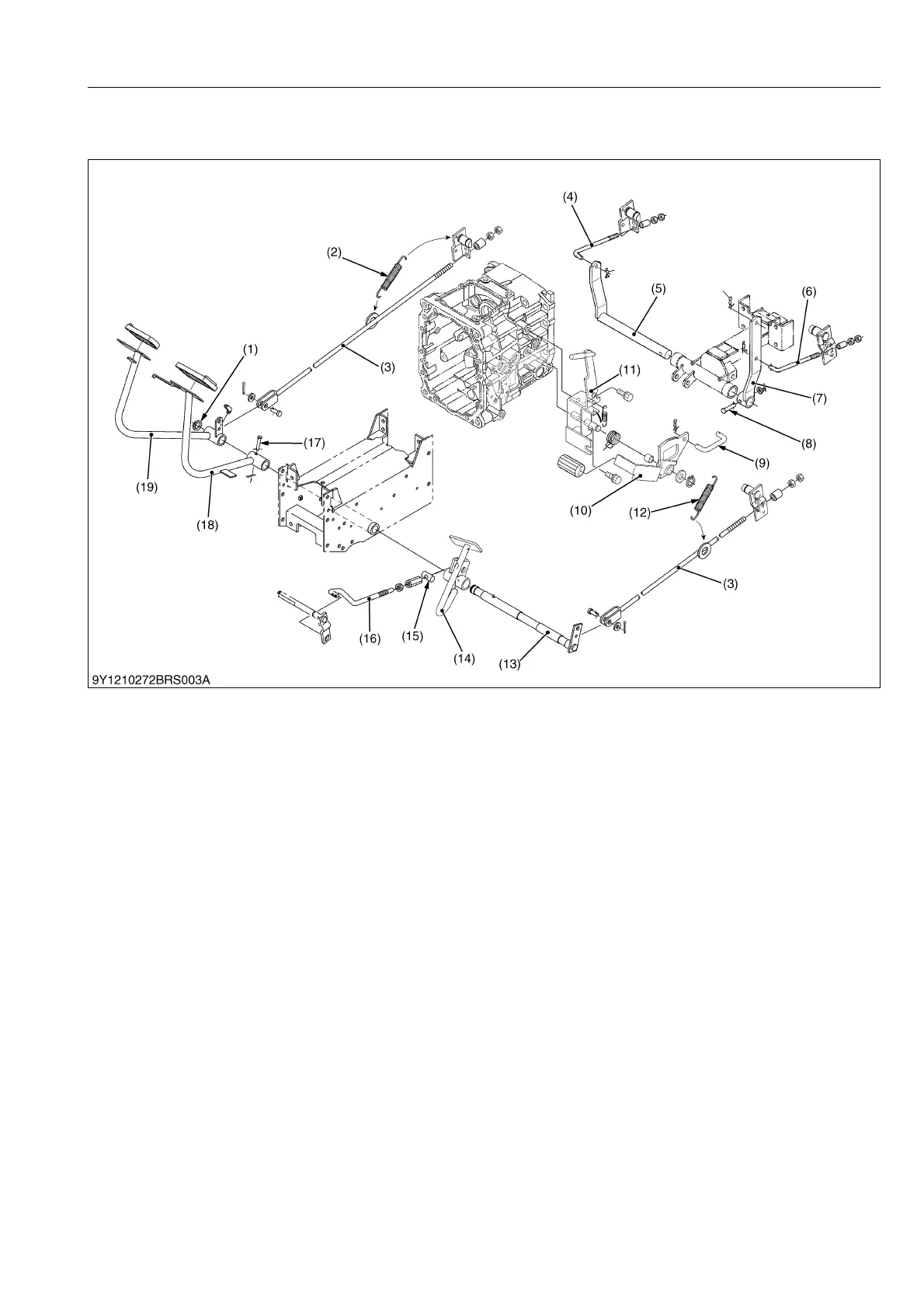

(1) External Snap Ring
(2) Return Spring
(3) Brake Rod
(4) Parking Brake Rod, R.H.
(5) Parking Brake Lever, R.H.
(6) Parking Brake Rod, L.H.
(7) Parking Brake Lever, L.H.
(8) Pin
(9) Parking Brake Rod 2
(10) Parking Brake Pedal
(11) Parking Release Lever
(12) Return Spring
(13) Brake Pedal Shaft
(14) Clutch Pedal
(15) Pin
(16) Clutch Pedal Rod
(17) Pin
(18) Brake Pedal, L.H.
(19) Brake Pedal, R.H.
