ENGINE
B2420, WSM
1-S27

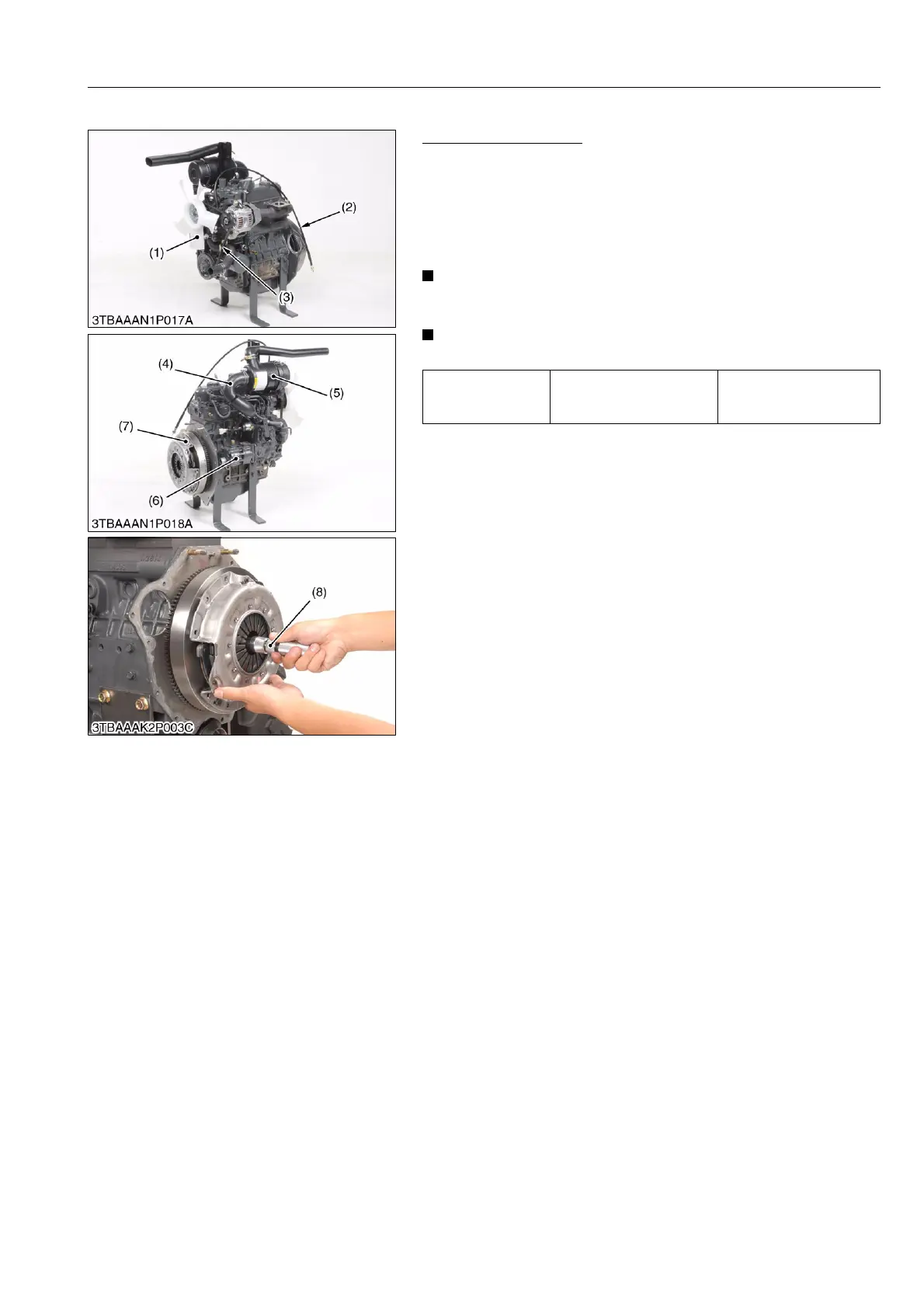

(2) External Components
Outer Parts of Engine
1. Remove the cooling fan (1), fan belt (3), fan pulley, hour meter
cable (2), alternator and radiator hoses.
2. Remove the air cleaner (5), inlet hose (4) and air cleaner
bracket.
3. Remove the hydraulic pump (6) and pump holder.
4. Remove the clutch assembly (7).
IMPORTANT
• Be sure to align the center of disc and flywheel by inserting
the clutch center tool (8).
NOTE
• Do not allow grease and oil on the clutch disc facing.
9Y1210436ENS0032US0
Tightening torque
Clutch cover mounting
screw
24 to 27 N·m
2.4 to 2.8 kgf·m
18 to 20 lbf·ft
(1) Cooling Fan
(2) Hour Meter Cable
(3) Fan Belt
(4) Inlet Hose
(5) Air Cleaner
(6) Hydraulic Pump
(7) Clutch Assembly
(8) Clutch Center Tool
KiSC issued 06, 2012 A
