ENGINE
B2420, WSM
1-S26

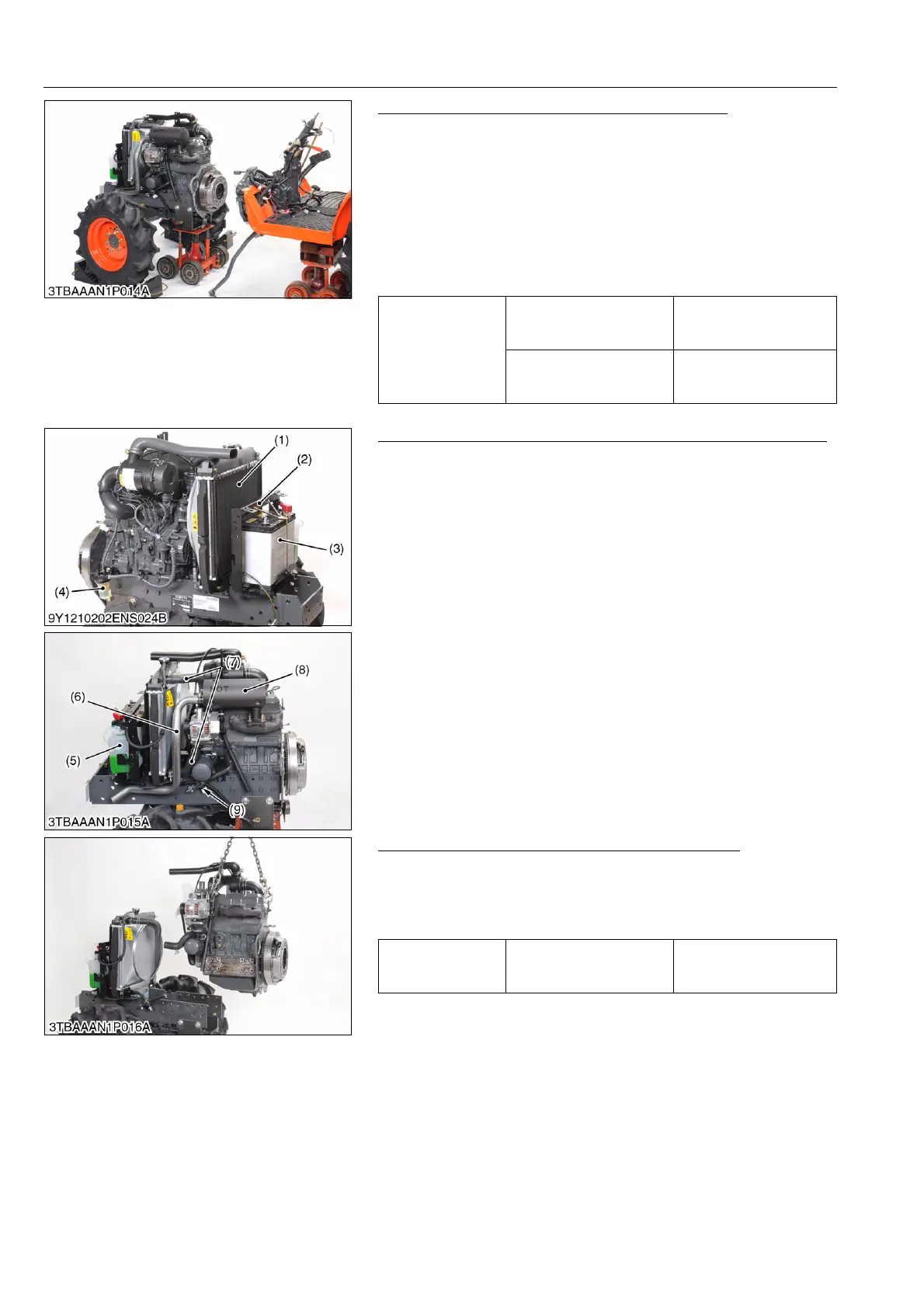

Separating the Engine from the Clutch Housing
1. Place the disassembling jack under the engine and center
frame.
2. Remove the engine mounting screws and nut, then separate the
engine from the clutch housing with starter motor.
(When reassembling)
• Apply liquid gasket (Three Bond 1211 or equivalent) to joint face
of the engine and clutch housing.
• Apply liquid gasket (Three Bond 1211 or equivalent) to joint face
of the engine and starter motor.
9Y1210436ENS0029US0
Battery, Recovery Tank, Battery Stay and Radiator Assembly
1. Remove the positive cable.
2. Remove the battery retainer and then remove the battery (3).
3. Remove the recovery tank (5).
4. Remove the battery stay (2).
5. Remove the fuel filter (4).
6. Remove the muffler pipe (6) and muffler (8).
7. Disconnect the radiator hoses (7).
8. Disconnect the drain cock assembly (9).
9Y1210436ENS0030US0
Separating the Engine from Front Axle Assembly
1. Place the disassembling stand under the front axle frame.
2. Remove the front axle frame mounting screws.
3. Separate the engine from the front axle assembly.
(When reassembling)
9Y1210436ENS0031US0
Tightening torque
Clutch housing and engine
mounting screw (M8)
18 to 21 N·m
1.8 to 2.1 kgf·m
13 to 15 lbf·ft
Clutch housing and engine
mounting screw (M10)
48 to 21 N·m
4.9 to 5.7 kgf·m
36 to 41 lbf·ft
(1) Radiator Assembly
(2) Battery Stay
(3) Battery
(4) Fuel Filter
(5) Recovery Tank
(6) Muffler Pipe
(7) Radiator Hose
(8) Muffler
(9) Drain Cock Assembly
Tightening torque
Front axle frame mounting
screw
78 to 90 N·m
7.9 to 9.2 kgf·m
58 to 66 lbf·ft
To Next Page
