wsm B2420 - Without OPC Model

ELECTRICAL SYSTEM
B2420, WSM
9-M17
(1) Without OPC Model

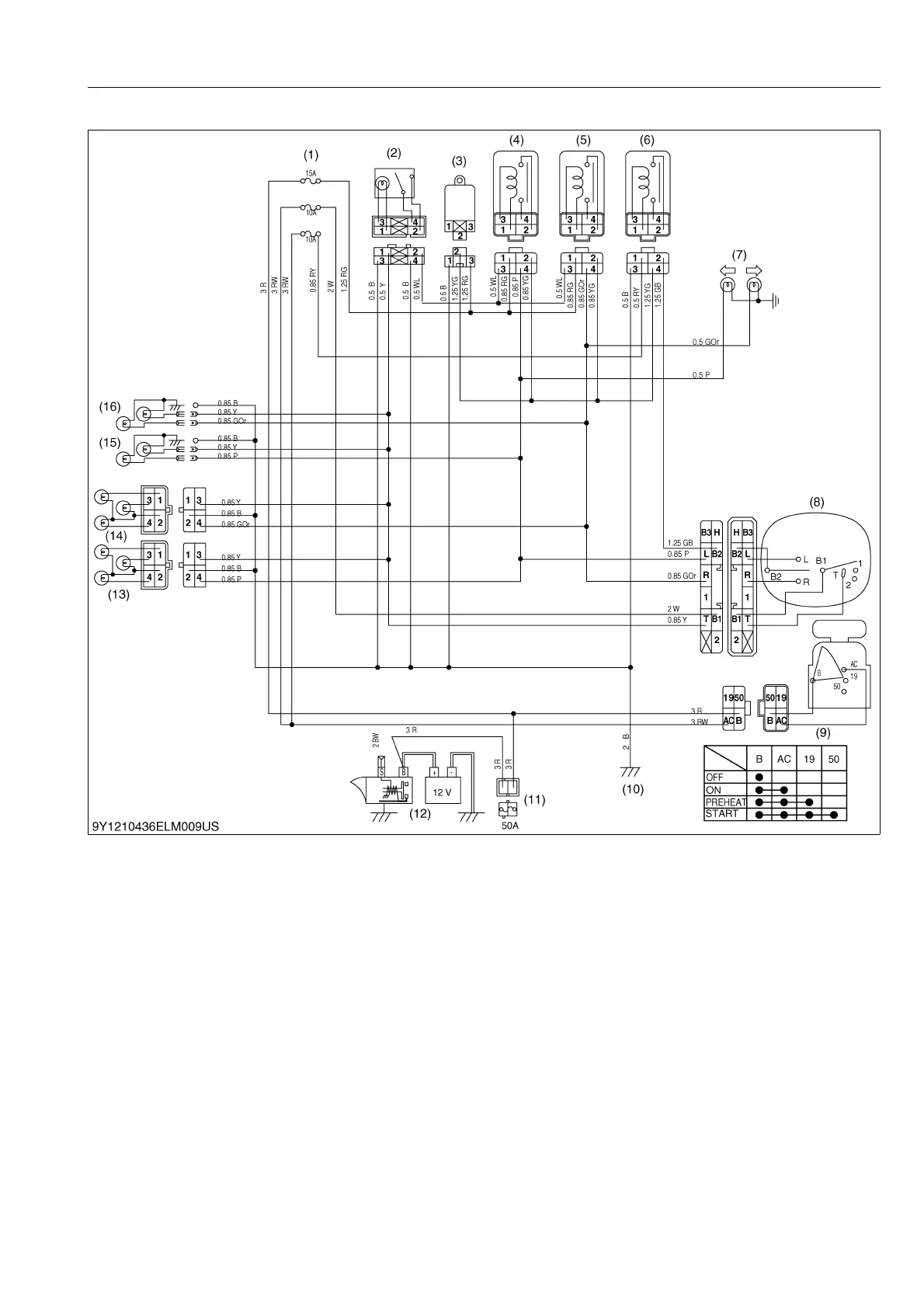

Hazard switch has two positions; ON and OFF. Blinking the hazard lamp and indicator lamps as shown in the
figure above. The hazard lamp is operative when the key switch is in either the ON or OFF positions.
9Y1210436ELM0013US0
(1) Fuse
(2) Hazard Switch
(3) Flasher Unit
(4) Flasher Relay (L)
(5) Flasher Relay (R)
(6) Turn Switch Relay
(7) Meter Panel
(8) Combination Switch
(9) Main Switch
(10) Frame Earth
(11) Slow Blow Fuse
(12) Battery
(13) Rear Combination Lamp
(L.H.)
(14) Rear Combination Lamp
(R.H.)
(15) Front Combination Lamp
(L.H.)
(16) Front Combination Lamp
(R.H.)
KiSC issued 06, 2012 A
