(17) Brake Lamp
Brake Lamp Switch

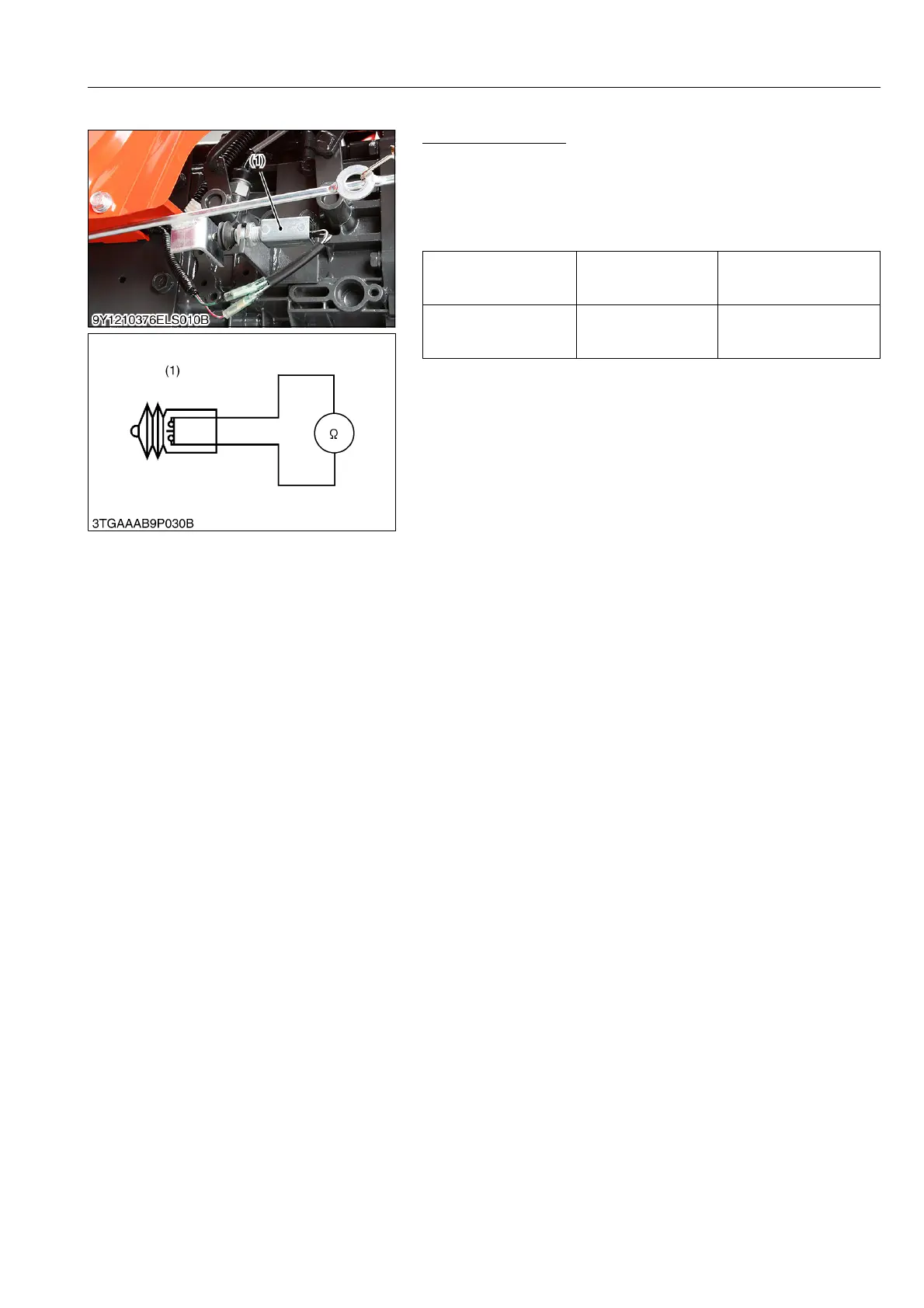

1. Disconnect the leads, and measure the resistance with an
ohmmeter across the brake lamp switch leads.
2. If the measurement differs from the table below, the brake lamp
switch (1) faulty or need to adjust the brake lamp switch
position.
9Y1210436ELS0069US0
Resistance
(When stepping the
brake pedal)
Lead – Lead 0 Ω
Resistance
(When brake pedal is
released)
Lead – Lead Infinity
(1) Brake Lamp Switch
