HYDRAULIC SYSTEM
B2420, WSM
8-M2
2. OIL FLOW

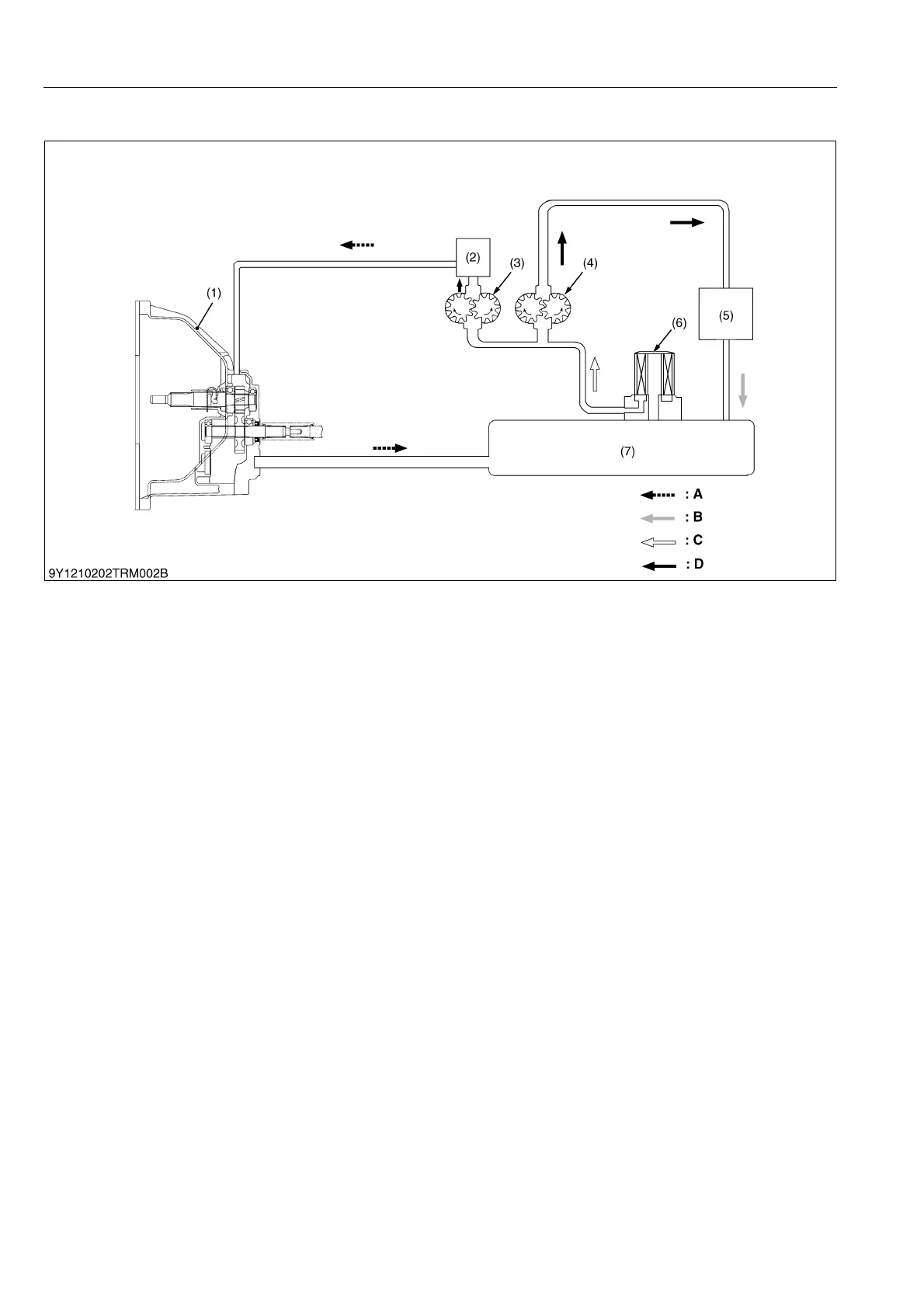

This figure is schematic of hydraulic oil flow.
"A" of the oil flow is low pressure oil. Basically this oil works to lubricant.
"B" of the oil flow is free oil. This oil works to return to transmission case (7).
"C"of the oil flow is suction oil. This oil works to suck from transmission case (7).
"D" of the oil flow is high pressure oil. This oil works to move steering and three position.
9Y1210436HYM0002US0
(1) Clutch Housing
(Front Transmission Case)
(2) Power Steering Controller
(3) Hydraulic Pump (for Power
Steering)
(4) Hydraulic Pump (for Main
Circuit)
(5) Position Control Valve
(6) Oil Filter
(7) Transmission Case
A: Low Pressure Oil
B: Free Oil
C: Suction Oil
D: High Pressure Oil
