wsm B2420 - Hi-MID-Lo Gear Shift Section; Front Wheel Drive Section

TRANSMISSION
B2420, WSM
3-M3

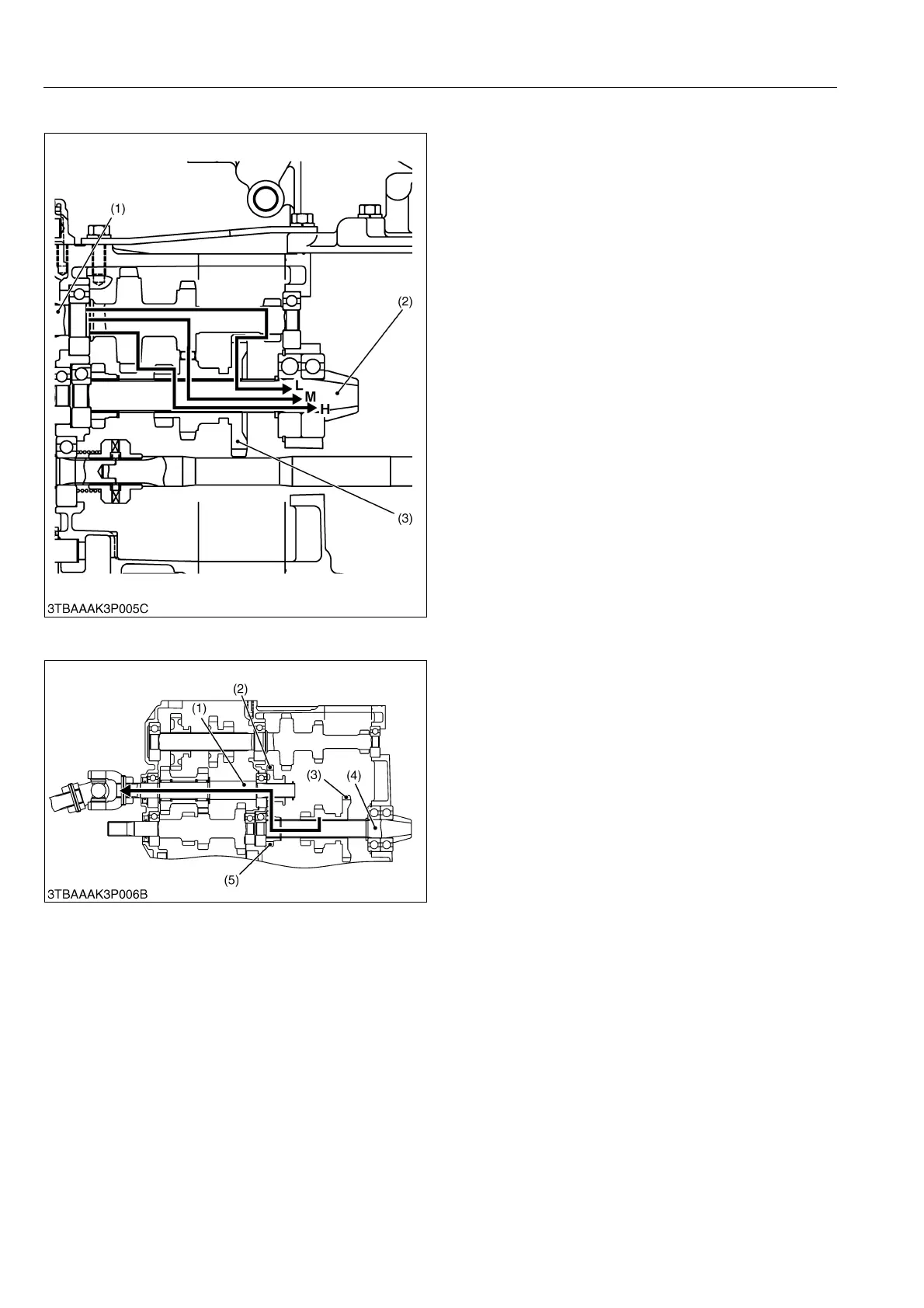

[2] HI-MID-LO GEAR SHIFT SECTION
Q L: Low Range
4th Gear Shaft (1) → 10T Gear (1) → 34T Gear (3)
→ Spline Boss → Spiral Bevel Pinion Shaft (2)
Q M: Mid Range
4th Gear Shaft (1) → 21T Gear (1) → 22T Gear (3)
→ Spline Boss → Spiral Bevel Pinion Shaft (2)
Q H: High Range
4th Gear Shaft (1) → 24T Gear (1) → 13T Gear (3)
→ Spline Boss → Spiral Bevel Pinion Shaft (2)
9Y1210436TRM0003US0
[3] FRONT WHEEL DRIVE SECTION
Q Engage
Spiral Bevel Pinion Shaft (4) → Spline Boss → 13T
Gear (5) → 20T Shifter Gear (2) → Spline Boss → Front
Wheel Drive Shaft (1)
9Y1210436TRM0004US0
(1) 4th Gear Shaft with
24T-21T-10T Gear
(2) Spiral Bevel Pinion Shaft
(3) 13T-22T-34T Shifter Gear
(1) Front Wheel Drive Shaft
(2) 20T Shifter Gear
(3) 13T-22T-34T Shifter Gear
(4) Spiral Bevel Pinion Shaft
(5) 13T Gear
KiSC issued 06, 2012 A
