wsm B2420 - Safety Switch (Main Gear Shift Lever, Rear PTO Switch, Parking Brake and Seat Switch)

ELECTRICAL SYSTEM
B2420, WSM
9-S13
(5) Safety Switch (Main Gear Shift Lever, Rear PTO Switch, Parking Brake
and Seat Switch)
Main Gear Shift Switch
1. Disconnect the main gear shift switch connectors.
2. Connect the circuit tester leads to the main gear shift switch 2P
connector.
(When the main gear shift lever is in "NEUTRAL" position)
1. Measure the resistance between terminals.
2. If the continuity is not 0 Ω, the switch is faulty, replace it.
(When the main gear shift lever is in "1st or 3rd" position)
1. Measure the resistance between terminals.
2. If the continuity is not infinity, the switch is faulty, replace it.
(When the main gear shift lever is in "2nd or REVERSE"
position)
1. Measure the resistance between terminals.
2. If the continuity is not infinity, the switch is faulty, replace it.
9Y1210436ELS0035US0
Resistance
When the main gear
shift lever is in
"NEUTRAL" position
0 Ω
When the main gear
shift lever is in "1st or
3rd" position
Infinity
When the main gear
shift lever is in "2nd or
REVERSE" position

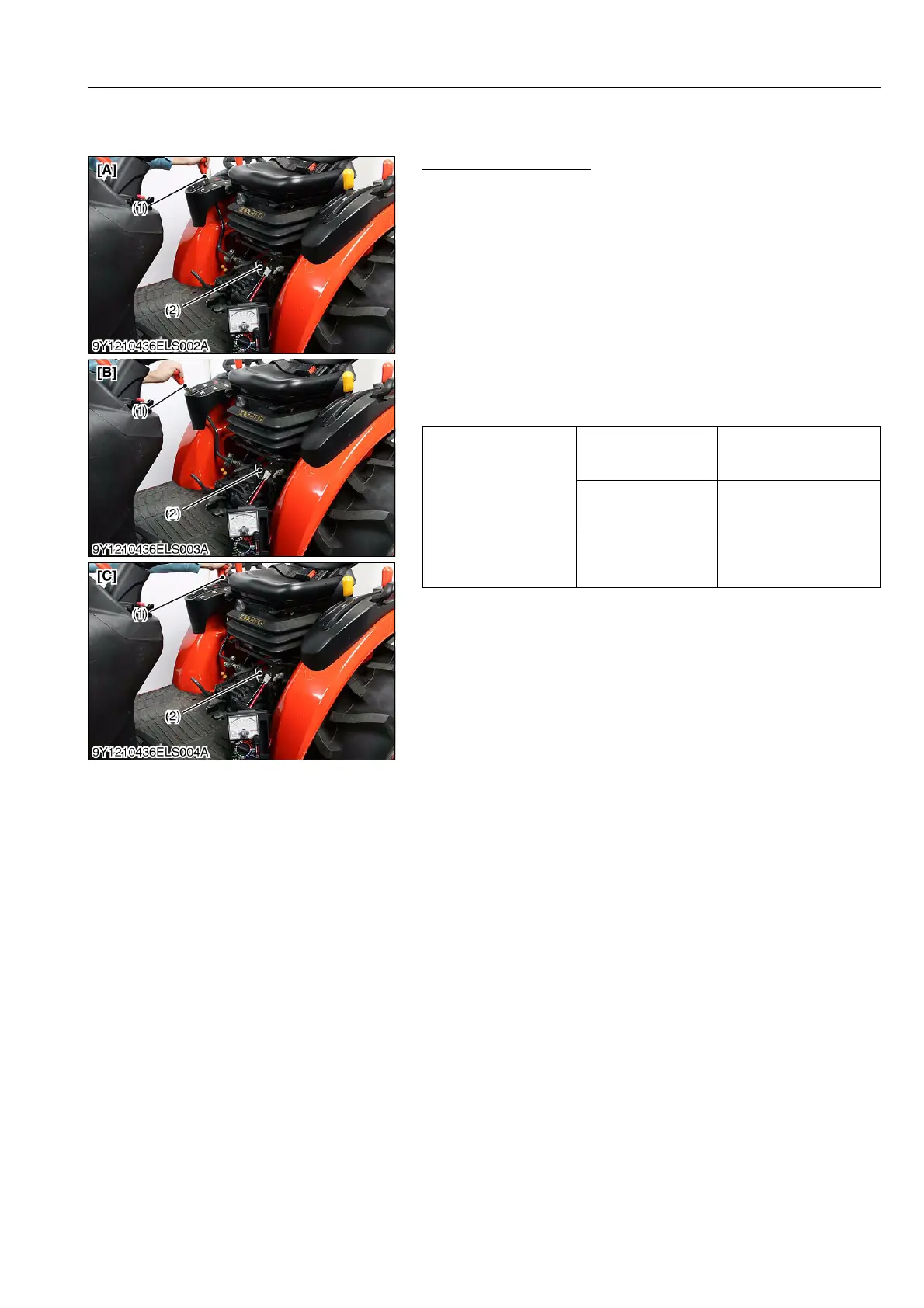

(1) Main Gear Shift Lever
(2) Main Gear Shift Switch
[A] Main Gear Shift Lever
"NEUTRAL" position
[B] Main Gear Shift Lever "1st or 3rd"
position
[C] Main Gear Shift Lever "2nd or
REVERSE" position
KiSC issued 06, 2012 A
