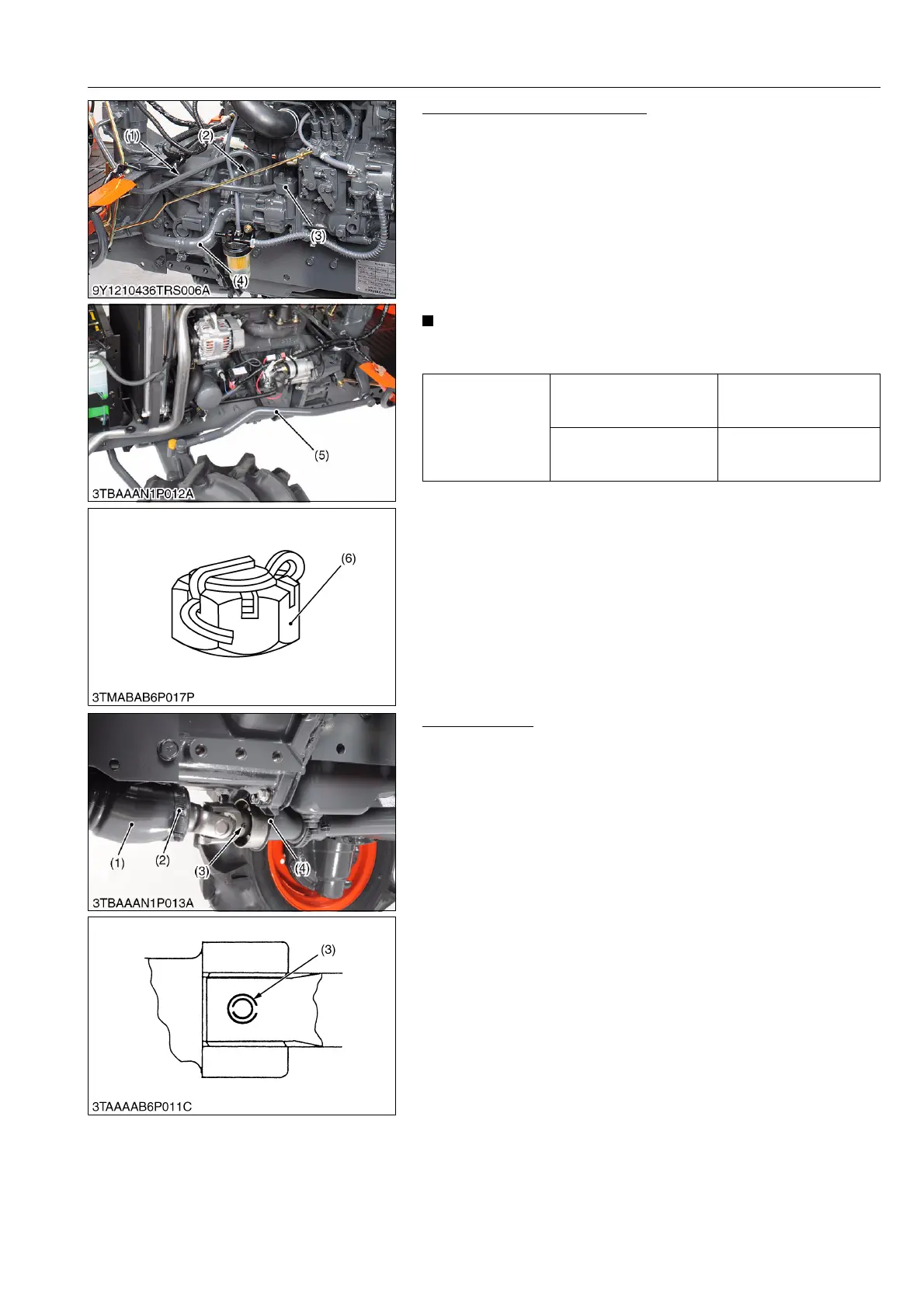

Hydraulic Pipes and Drag Link
1. Remove the accelerator rod (2).
2. Remove the power steering delivery pipe (1).
3. Disconnect the pipe clamp and disconnect the 3-point hitch
delivery pipe (3).
4. Disconnect the suction hose (4).
5. Disconnect the glow plug lead wire, thermo sensor lead wire,
stop solenoid connector, oil pressure switch lead wire,
alternator connector and starter motor lead wire.
6. Disconnect the drag link (5) with a tie-rod end lifter.
(When reassembling)
IMPORTANT
• Do not loosen the slotted nut (6) to align the hole.
• Install the cotter pin as shown in the figure.
9Y1210436ENS0027US0
Universal Joint
1. Loosen the clamp (2) and slide the universal joint cover (1) to
the rear.
2. Tap out the spring pins (3).
3. Disconnect the bearing holder (4) and then slide the universal
joint to the rear.
(When reassembling)
• Apply grease to the splines of the propeller shaft and universal
joint.
• When inserting the spring pins (3), face their splits in the
direction parallel to the universal joint as shown in the figure.
• Arrange the position of the clamp (2) at side as shown in figure.
• Replace the spring pins (3) with new ones.
9Y1210436ENS0028US0
Tightening torque
Power steering delivery
pipe nut
65 to 75 N·m
6.7 to 7.6 kgf·m
48 to 55 lbf·ft
Slotted nut
18 to 35 N·m
1.9 to 3.5 kgf·m
14 to 25 lbf·ft
(1) Power Steering Delivery pipe
(2) Accelerator Rod
(3) 3-point Hitch Delivery Pipe
(4) Suction Hose
(5) Drag Link
(6) Slotted Nut
(1) Universal Joint Cover
(2) Clamp
(3) Spring Pin
(4) Bearing Holder
