Fuel Tank
1. Disconnect the fuel hose (2) at the fuel filter side, then drain fuel
completely.
2. Disconnect the wire harness clamps (1).
3. Remove the fuel tank frame stay (4). Disconnect the overflow
hoses (3) and pull out the hour meter cable (5).
4. Disconnect the flasher unit connector (11), relays (7) and lead
wires (9), (10) for fuel gauge.
5. Disconnect the OPC timer connector. (Only OPC model)
6. Disconnect the front combination lamp lead wires (12) and
flame earth cable (13).

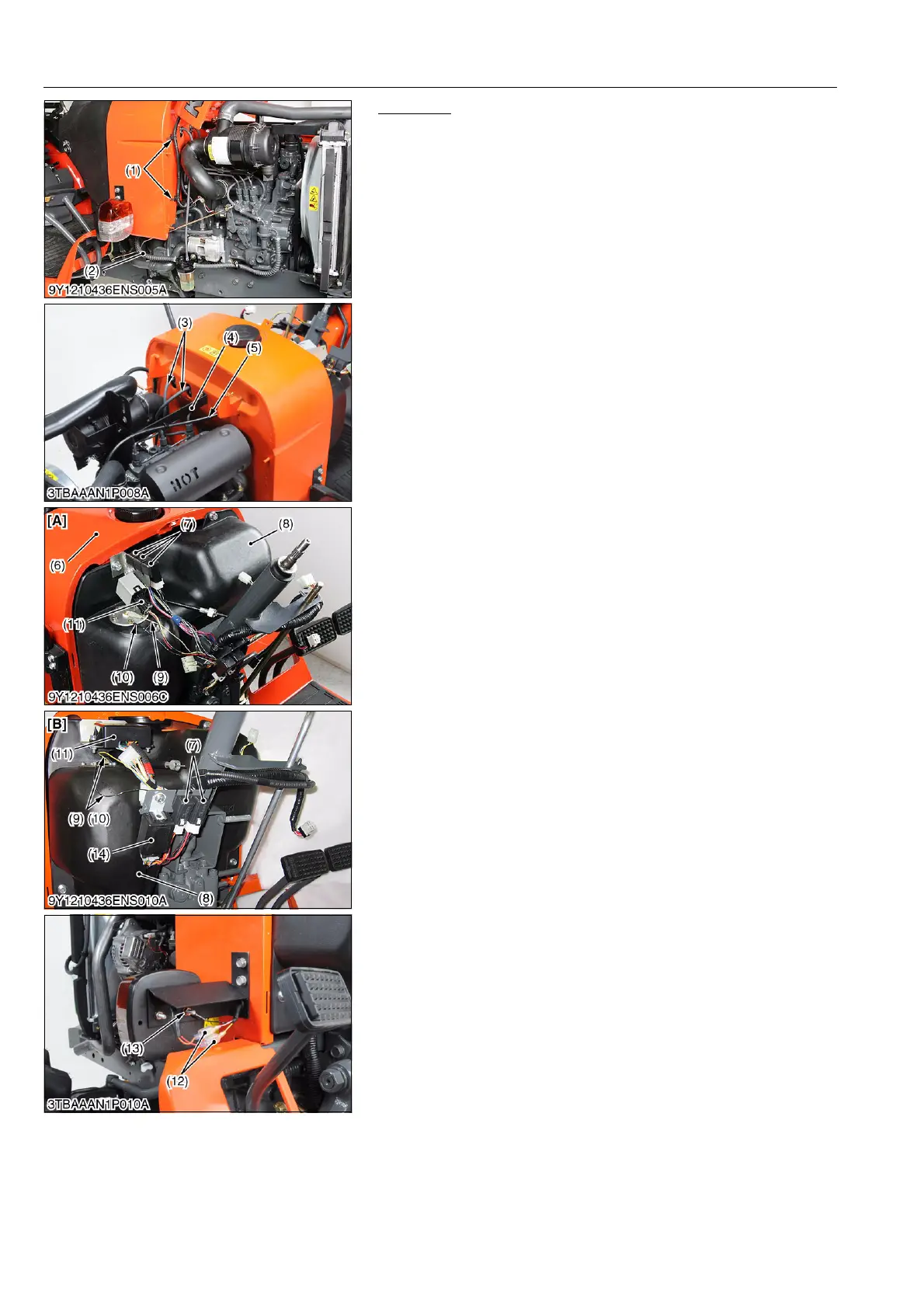

7. Remove the fuel tank (8) with tank frame (6).
9Y1210436ENS0026US0
(1) Wire Harness Clamp
(2) Fuel Hose
(3) Overflow Hose
(4) Fuel Tank Frame Stay
(5) Hour Meter Cable
(6) Fuel Tank Frame
(7) Relay
(8) Fuel Tank
(9) Lead Wire
(10) Lead Wire
(11) Flasher Unit Connector
(12) Front Combination Lamp Lead Wire
(13) Flame Earth Cable
(14) OPC Timer
[A] Without OPC Model
[B] With OPC Model
