Meter Panel and Panel Under Cover
1. Tap out the spring pin (2) and remove the hand accelerator
lever (1).
2. Open the meter panel (3) and disconnect the hourmeter cable,
meter panel connector (6), combination switch connector (4)
and hazard switch connector (7). Then remove the meter panel
(3).
3. Disconnect the main switch connector (8) and remove the panel
under cover (5).
9Y1210436ENS0025US0

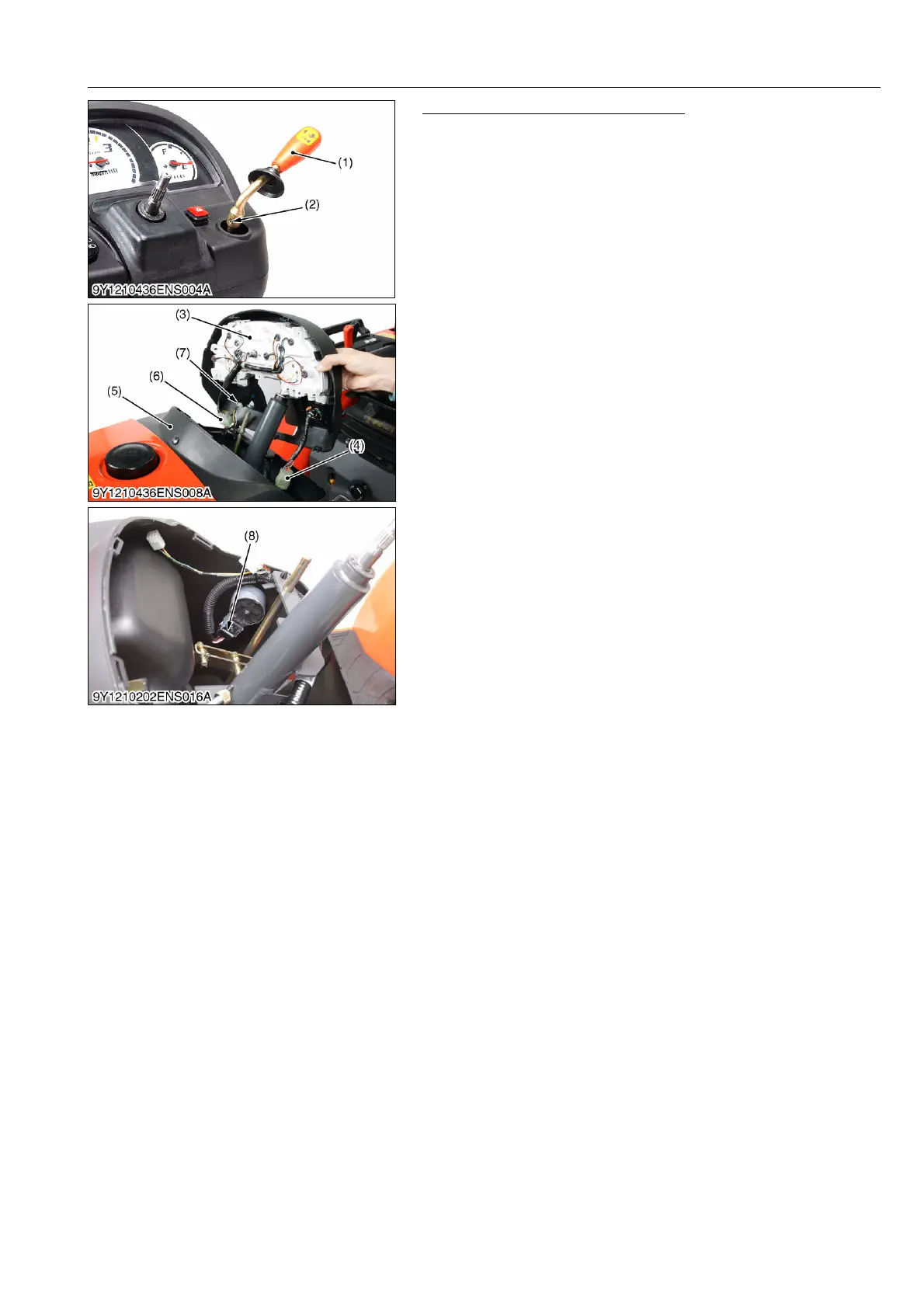

(1) Hand Accelerator Lever
(2) Spring Pin
(3) Meter Panel
(4) Combination Switch Connector
(5) Panel Under Cover
(6) Meter Panel Connector
(7) Hazard Switch Connector
(8) Main Switch Connector
