Draining Transmission Fluid
1. Place an oil pan underneath the transmission case, and remove
the drain plugs (1).
2. Drain the transmission fluid.
3. Reinstall the drain plugs (1).
(When refilling)
• Fill new oil from filling port after removing the filling plug (2) up
to the upper notch on the dipstick (3).
• After running the engine for few minutes, stop it and check the
oil level again, if low, add oil prescribed level.
• Use only multi-grade transmission oil. Use of other oils
may damage the transmission or hydraulic system. Refer
to "LUBRICANTS, FUEL AND COOLANT" (See page G-8).
• Never work the tractor immediately after changing the
transmission oil. Keeping the engine at medium speed for
a few minutes to prevent damage to the transmission.
• Do not mix different brands oil together.
9Y1210436ENS0023US0
Steering Wheel
1. Remove the steering wheel cap.
2. Remove the steering wheel mounting nut and remove the
steering wheel (1) with a steering wheel puller (2).
(When reassembling)
9Y1210436ENS0024US0
Transmission fluid Capacity
14 L
3.7 U.S.gals
3.1 lmp.gals

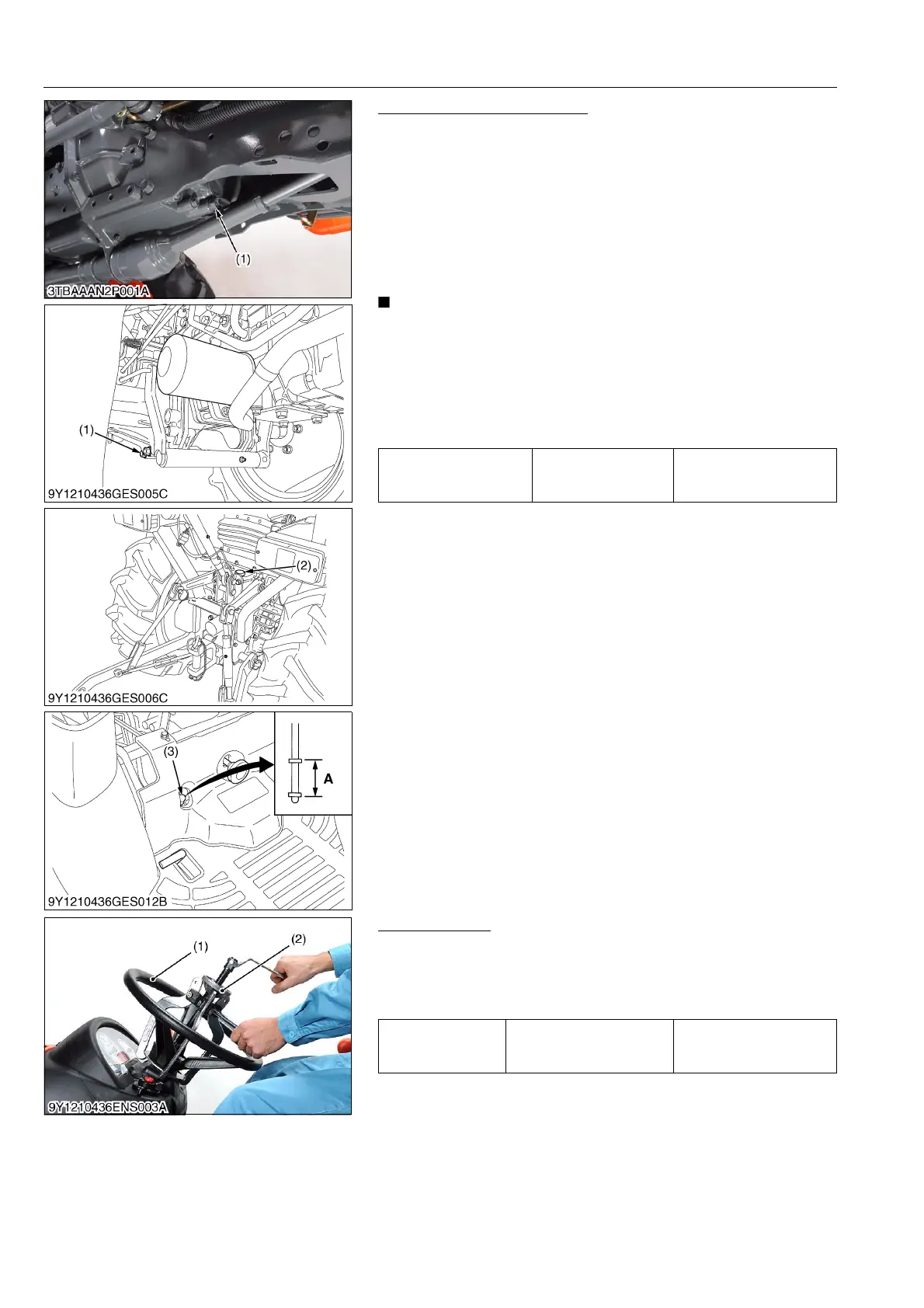

(1) Drain Plug
(2) Filling Plug
(3) Dipstick
A: Oil level is acceptable within this
range
Tightening torque
Steering wheel mounting
nut
30 to 49 N·m
3.0 to 5.0 kgf·m
22 to 36 lbf·ft
(1) Steering Wheel (2) Steering Wheel Puller
