HYDRAULIC SYSTEM
B2420, WSM
8-S8
Position Control Lever
• When checking, park the tractor on flat ground and fully
engage the parking brake.
1. Attach the approx. 1960 N (200 kg, 441 lbs) weight (1) to the
end of the lower links.
2. Loosen lever stopper (3). Temporally render it immovable.
3. Start the engine and set the engine revolutions at 2000 min
-1
(rpm).
4. When moving the hydraulic control lever (2) to the inching up
position C, the 3-point hitch has to move up (inching up) slowly.
5. When moving the hydraulic control lever (2) to highest position
D, the 3-point hitch has to move up (uninterrupted moving up)
fast.
6. When moving the hydraulic control lever (2) to the inching up
position and releasing your hand from the hydraulic control lever
(2), the hydraulic control lever (2) has to automatically return to
the neutral position N.
7. If the lever does not automatically return to the neutral position
N when moving the hydraulic control lever (2) to the inching up
position C and releasing your hand from the hydraulic control
lever (2), readjust the position of the lever stopper (3). Recheck
the inching operation following the above procedures.
(Reference)
• Distance a
7 mm (0.3 in.)
9Y1210436HYS0008US0

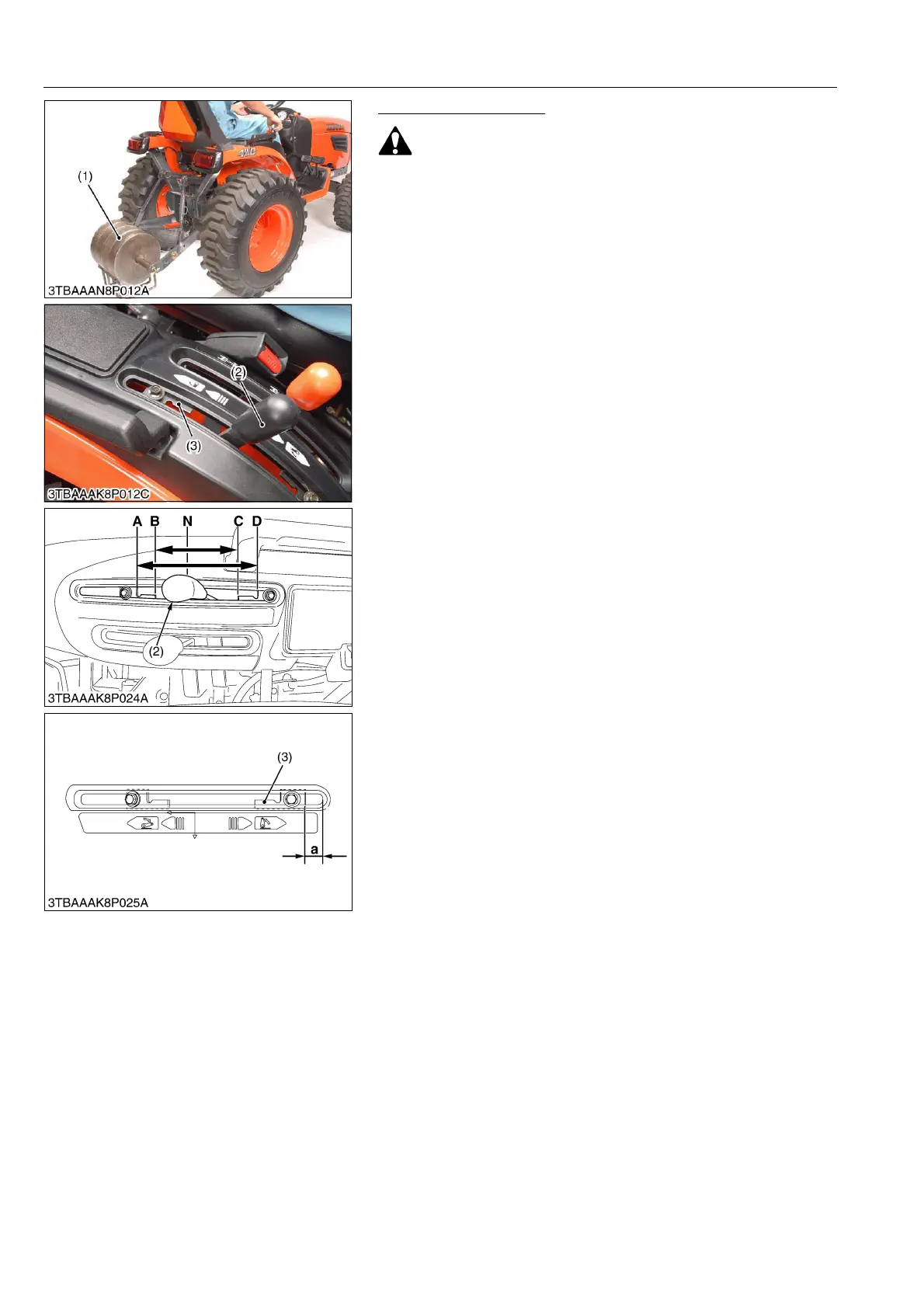

(1) Weight
(2) Hydraulic Control Lever
(3) Lever Stopper
A: Down Position
B: Slow Down Position
C: Slow Up Position
D: Up Position
N: Neutral Position
To Next Page
