ELECTRICAL SYSTEM
B2420, WSM
9-M10

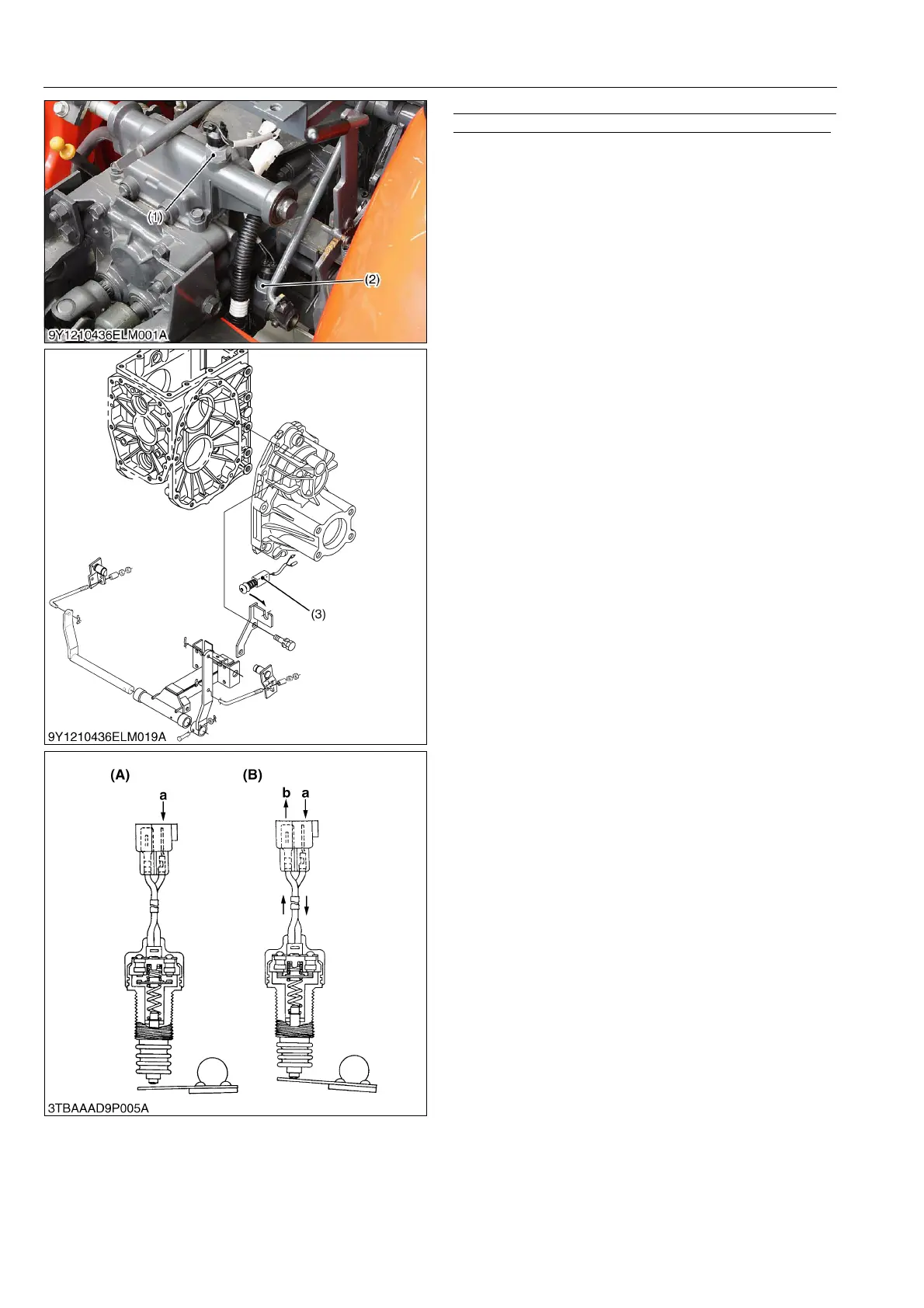

Main Gear Shift Lever Switch, Rear PTO Switch and
Parking Brake Switch (Serial Number Above 33598)
Main gear shift lever switch (1), rear PTO switch (2)
and parking brake switch (3) are connected with OPC
controller on the start circuit.
When the main gear shift lever and rear PTO switch
(2) are neutral an the parking brake lever (3) is unlocked,
the engine can be started.
Main gear shift lever switch (1) is located under the
main gear shift cover.
Rear PTO switch (2) is located need the rear PTO
gear shift lever.
Parking brake switch (3) is located on the left side of
rear axle case.
When the these switches is released to neutral
unlocked position, the electric circuit is opened.
9Y1210436ELM0027US0
(1) Main Gear Shift Lever Switch
(2) Rear PTO Switch
(3) Parking Brake Switch
(A) Released (When Shifted)
(B) Depressed (When Neutral)
a: From Starter Relay
b: GND (Frame Earth)
To Next Page
