FRONT AXLE
B2420, WSM
6-S7

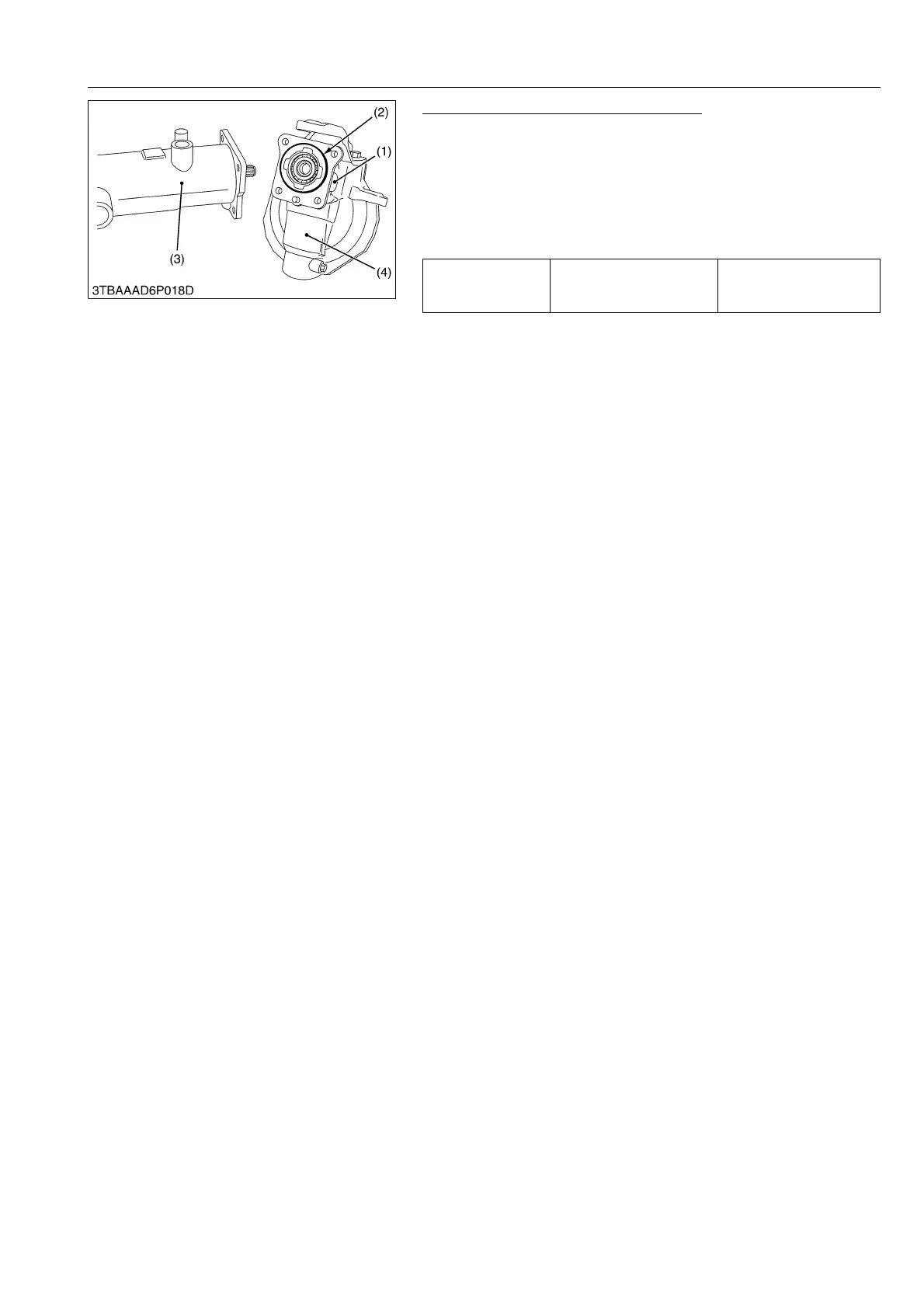

Bevel Gear Case and Front Gear Case
1. Remove the bevel gear case mounting screws.
2. Remove the bevel gear case (1) and front gear case (4) as a unit
from the front axle case (3).
(When reassembling)
• Apply grease to the O-ring (2) and take care not to damage it.
• Do not interchange right and left bevel gear case assemblies
and right and left gear case assemblies.
9Y1210436FAS0011US0
Tightening torque
Bevel gear case mounting
screw
78 to 90 N·m
7.9 to 9.2 kgf·m
58 to 66 lbf·ft
(1) Bevel Gear Case
(2) O-ring
(3) Front Axle Case
(4) Front Gear Case
