TRANSMISSION
B2420, WSM
3-S13

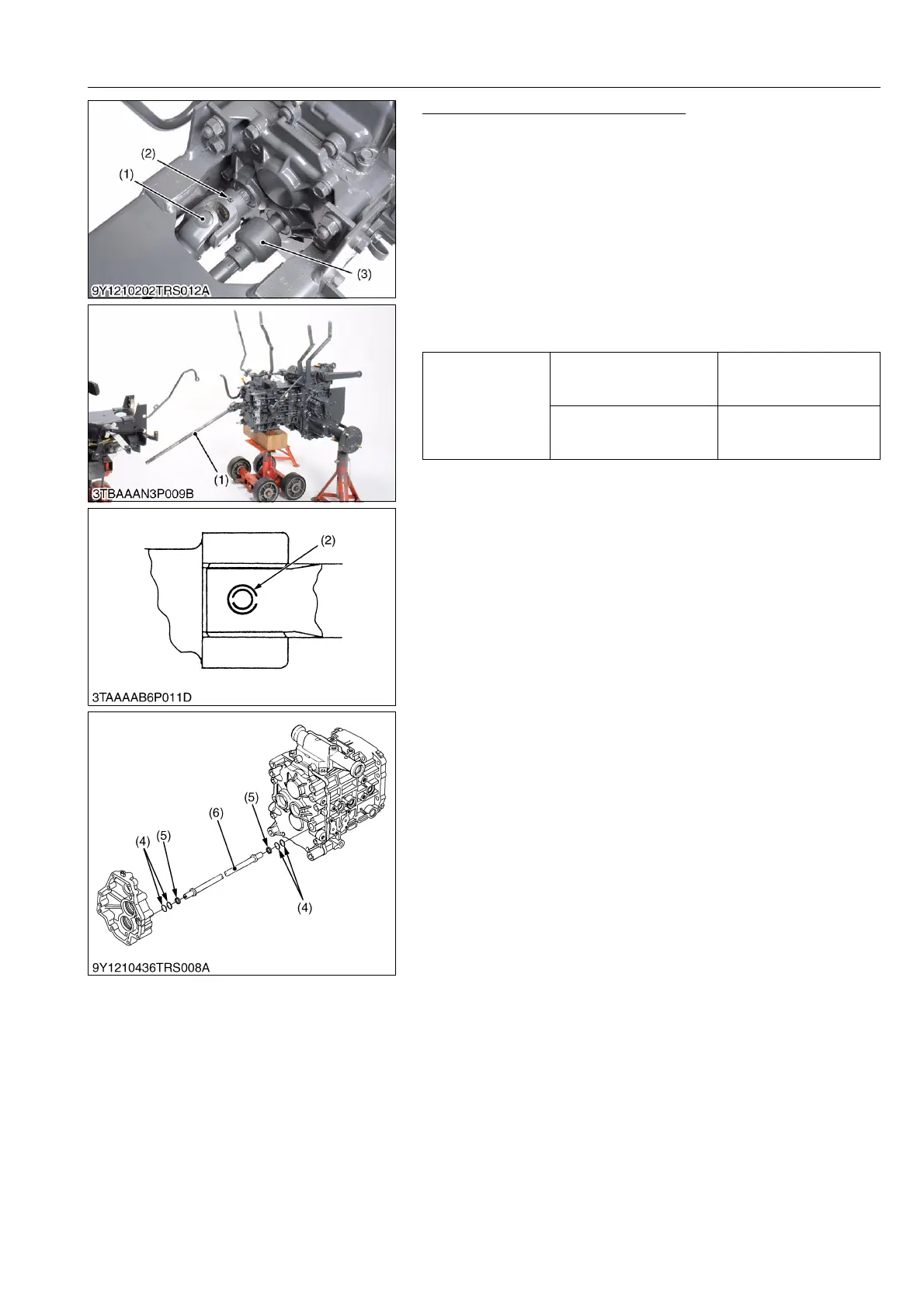

Separating Transmission Assembly
1. Top out spring pins (2) and disconnect the universal joint (1) of
front wheel drive propeller shaft.
2. Separate the transmission assembly from center frame.
(When reassembling)
• When inserting the spring pins (2), face their splits in the
direction parallel the universal joint as shown in the figure
below.
• When inserting the pipe (6), install the o-rings (4) and rings (5)
as shown in the figure with new one.
• Apply grease to the spline of the front wheel drive propeller
shaft, universal joint and ball coupling (3).
• Replace the spring pins (2) with new one.
9Y1210436TRS0013US0
Tightening torque
Transmission case and
center frame mounting nut
(M10)
40 to 44 N·m
4.0 to 4.5 kgf·m
29 to 32 lbf·ft
Transmission case and
center frame mounting bolt
(M12)
63 to 72 N·m
6.4 to 7.4 kgf·m
47 to 53 lbf·ft
(1) Universal Joint
(2) Spring Pin
(3) Ball Coupling
(4) O-ring
(5) Ring
(6) Pipe
KiSC issued 06, 2012 A
