TRANSMISSION
B2420, WSM
3-S19

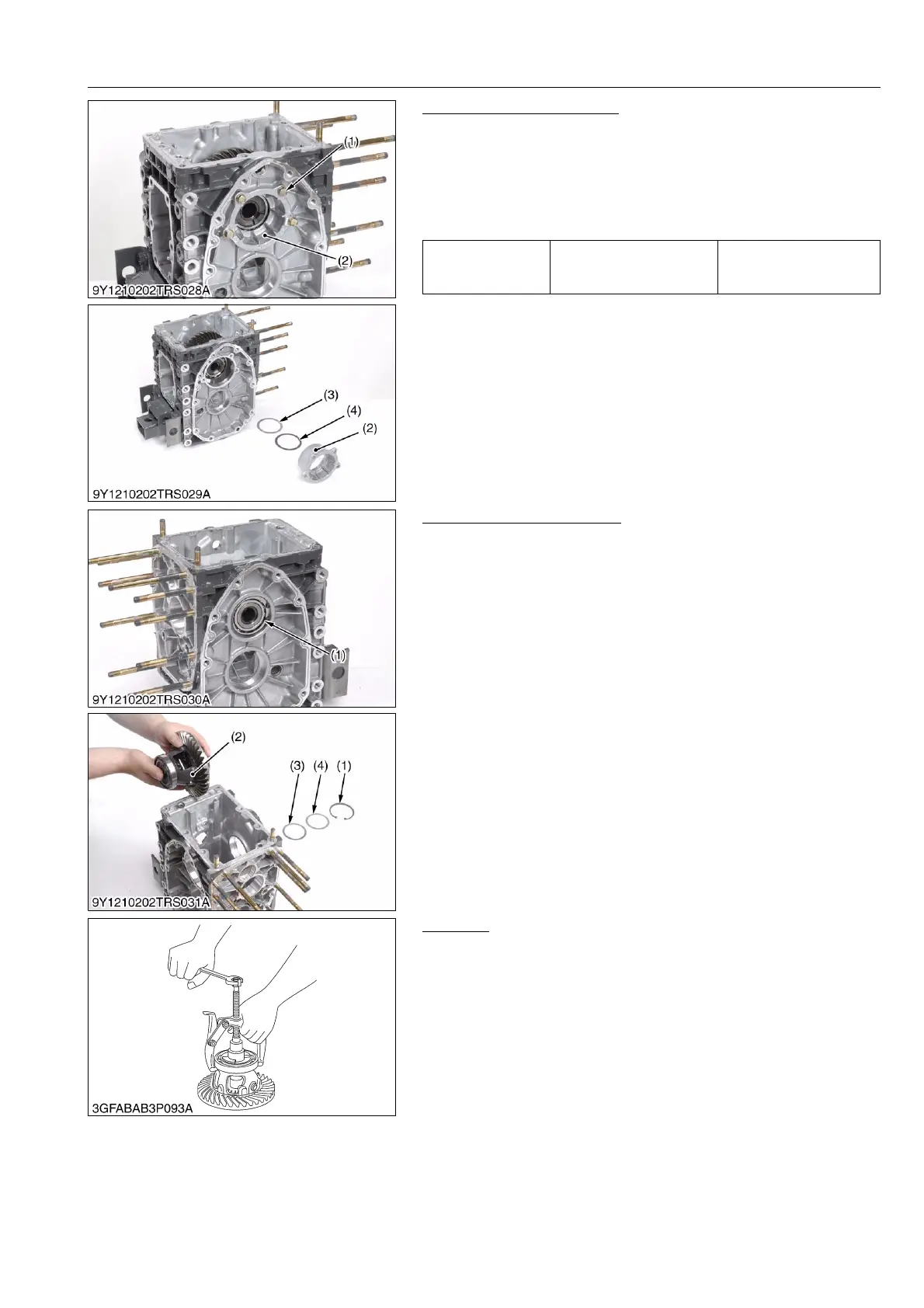

Differential Bearing Holder
1. Remove the differential bearing holder mounting screws (1).
2. Remove the differential bearing holder (2) and shims (3), (4).
(Reference)
• Thickness of adjusting shim (3), (4)
0.2 mm (0.008 in.) shim. [Code No. 66611-15150]
0.5 mm (0.020 in.) shim. [Code No. 66611-15140]
9Y1210436TRS0026US0
Differential Gear Assembly
1. Remove the internal snap ring (1) from the differential case.
2. Remove the shims (3), (4).
3. Remove the differential gear assembly (2) from the differential
case.
(Reference)
• Thickness of adjusting shim (3), (4)
0.2 mm (0.008 in.) shim. [Code No. 66591-14990]
0.5 mm (0.020 in.) shim. [Code No. 66591-14980]
9Y1210436TRS0027US0
Bearings
1. Remove the right and left bearings from the differential case.
9Y1210436TRS0028US0
Tightening torque
Differential bearing holder
mounting screw (M8)
18 to 20 N·m
1.8 to 2.1 kgf·m
13 to 15 lbf·ft
(1) Screw
(2) Differential Bearing Holder
(3) Shim
(4) Shim
(1) Internal Snap RIng
(2) Differential Gear Assembly
(3) Shim
(4) Shim
