ELECTRICAL SYSTEM
B2420, WSM
9-S17

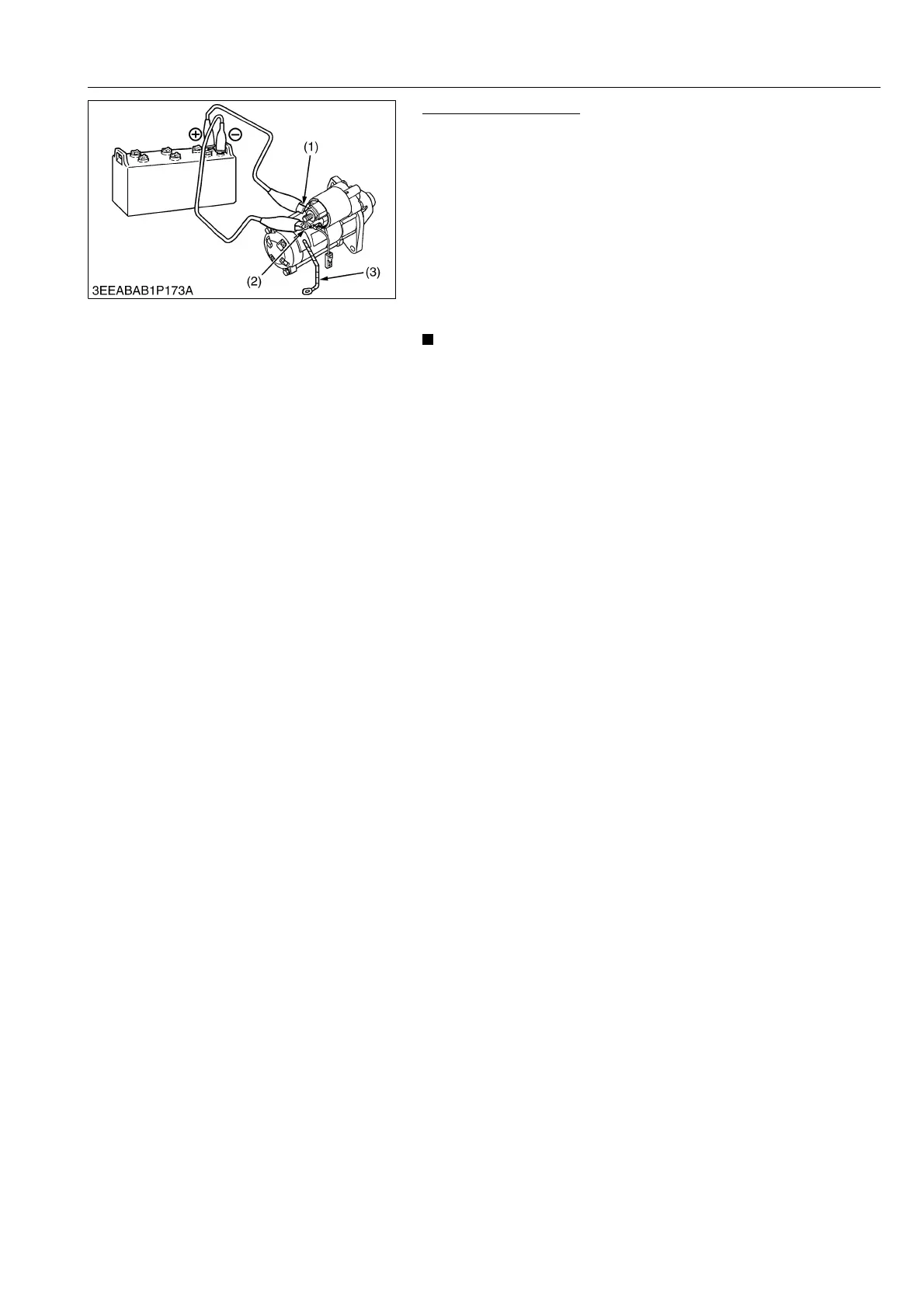

Magnetic Switch Test
1. Disconnect the battery negative cable from the battery.
2. Disconnect the battery positive cable and the leads from the
starter M terminal.
3. Remove the starter from the engine.
4. Disconnect the connecting lead (3) from the starter C terminal
(2).
5. Connect a jumper lead from the starter S terminal (1) to the
battery positive terminal post.
6. Connect a jumper lead momentarily between the starter C
terminal (2) and the battery negative terminal post.
7. If the pinion gear does not pop out, check the magnetic switch.
• This test should be carried out for a short time, about 3 to
5 seconds.
9Y1210436ELS0040US0
(1) S Terminal
(2) C Terminal
(3) Connecting Lead
