GENERAL
B2420, WSM
G-18
Checking Engine Start System (Serial Number Below 33597)
CAUTION
• Do not allow anyone near the tractor while testing.
• If the tractor does not pass the test do not operate the
tractor.
Q Preparation before testing
1. Sit on operator's seat.
2. Set the parking brake and stop the engine.
3. Shift the main gear shift lever (2) in "NEUTRAL" position.
4. Shift the PTO gear shift lever (3) to "NEUTRAL" position.
5. Fully depress the clutch pedal (1).
Q Test: Switch for the main gear shift lever (2).
1. Fully depress the clutch pedal (1).
2. Shift the main gear shift lever (2) to "Desired" position.
3. Turn the key to "START" position.
4. The engine must not crank.
Q Test: Switch for the PTO gear shift lever (3).
1. Fully depress the clutch pedal (1).
2. Shift the main gear shift lever (2) to "NEUTRAL" position.
3. Shift the PTO gear shift lever (3) to "ON" (Engaged) position.
4. Turn the key to "START" position.
5. The engine must not crank.
NOTE
• If the engine cranks during any of these tests, adjust or
replace the required safety switch.
9Y1210436GEG0006US0

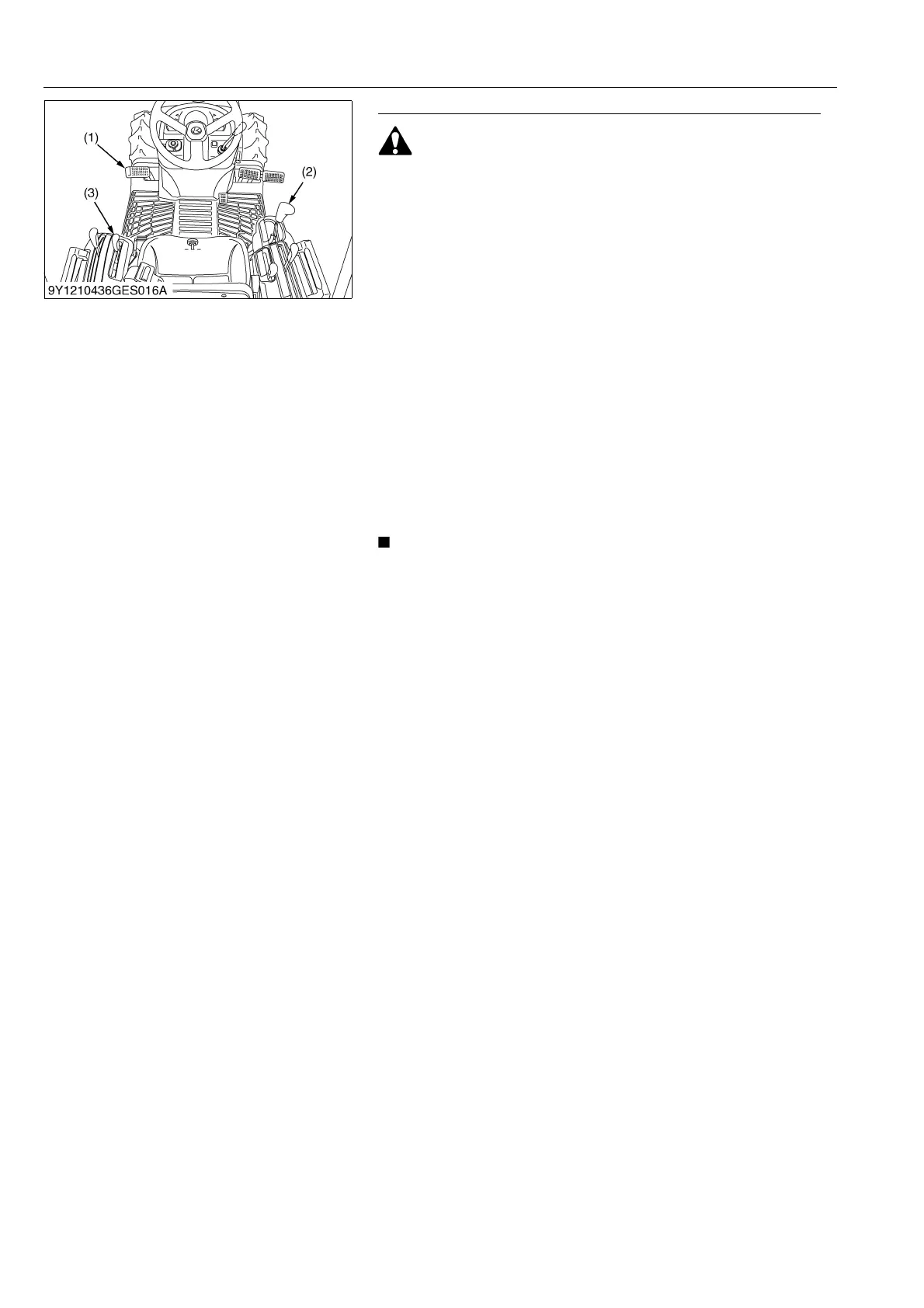

(1) Clutch Pedal
(2) Main Gear Shift Lever
(3) PTO Gear Shift Lever
KiSC issued 06, 2012 A
