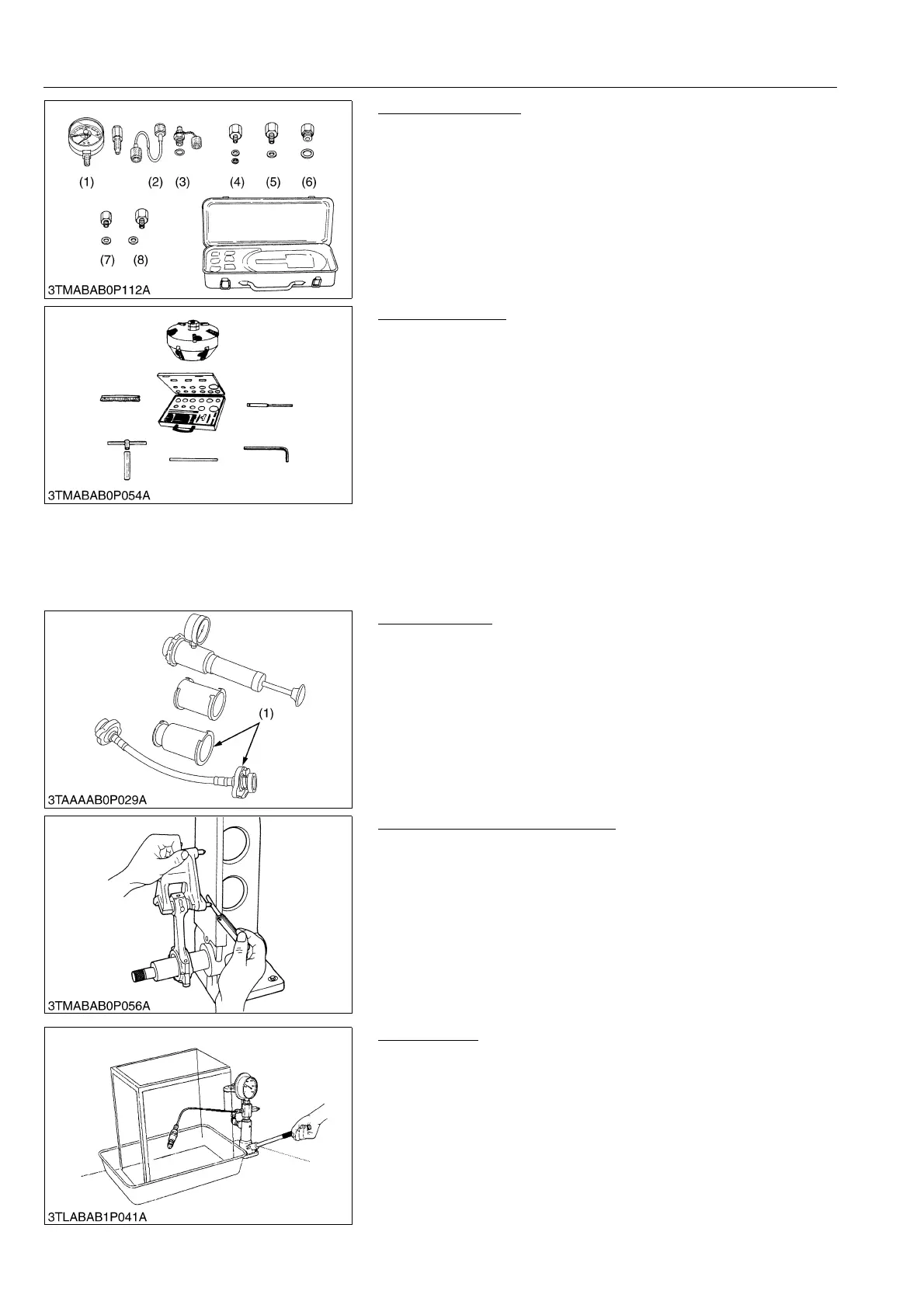

Oil Pressure Tester
Code No.
• 07916-32032
Application
• Use to measure lubricating oil pressure.
WSM000001GEG0015US0
Valve Seat Cutter
Code No.
• 07909-33102
Application
• Use to reseat valves.
Angle
• 0.79 rad (45 °)
• 0.26 rad (15 °)
Diameter
• 28.6 mm (1.13 in.)
• 31.6 mm (1.24 in.)
• 35.0 mm (1.38 in.)
• 38.0 mm (1.50 in.)
• 41.3 mm (1.63 in.)
• 50.8 mm (2.00 in.)
WSM000001GEG0016US0
Radiator Tester
Code No.
• 07909-31551
Application
• Use to check of radiator cap pressure, and leaks from cooling
system.
Remarks
• Adaptor (1) BANZAI Code No. RCT-2A-30S.
WSM000001GEG0017US0
Connecting Rod Alignment Tool
Code No.
• 07909-31661
Application
• Use to check the connecting rod alignment.
Applicable range
• Connecting rod big end I.D.
30 to 75 mm dia. (1.2 to 2.9 in. dia.)
• Connecting rod length
65.0 to 300 mm (2.56 to 11.8 in.)
WSM000001GEG0020US0
Nozzle Tester
Code No.
• 07909-31361
Application
• Use to check the fuel injection pressure and spray pattern of
nozzle.
Measuring range
• 0 to 50 MPa (0 to 500 kgf/cm
2
, 0 to 7200 psi)
WSM000001GEG0021US0
(1) Gauge
(2) Cable
(3) Threaded Joint
(4) Adaptor 1
(5) Adaptor 2
(6) Adaptor 3
(7) Adaptor 4
(8) Adaptor 5
(1) Adaptor
