GENERAL
B2420, WSM
G-36
NOTE
• The following special tools are not provided, so make them referring to the figure.
WSM000001GEG0026US0

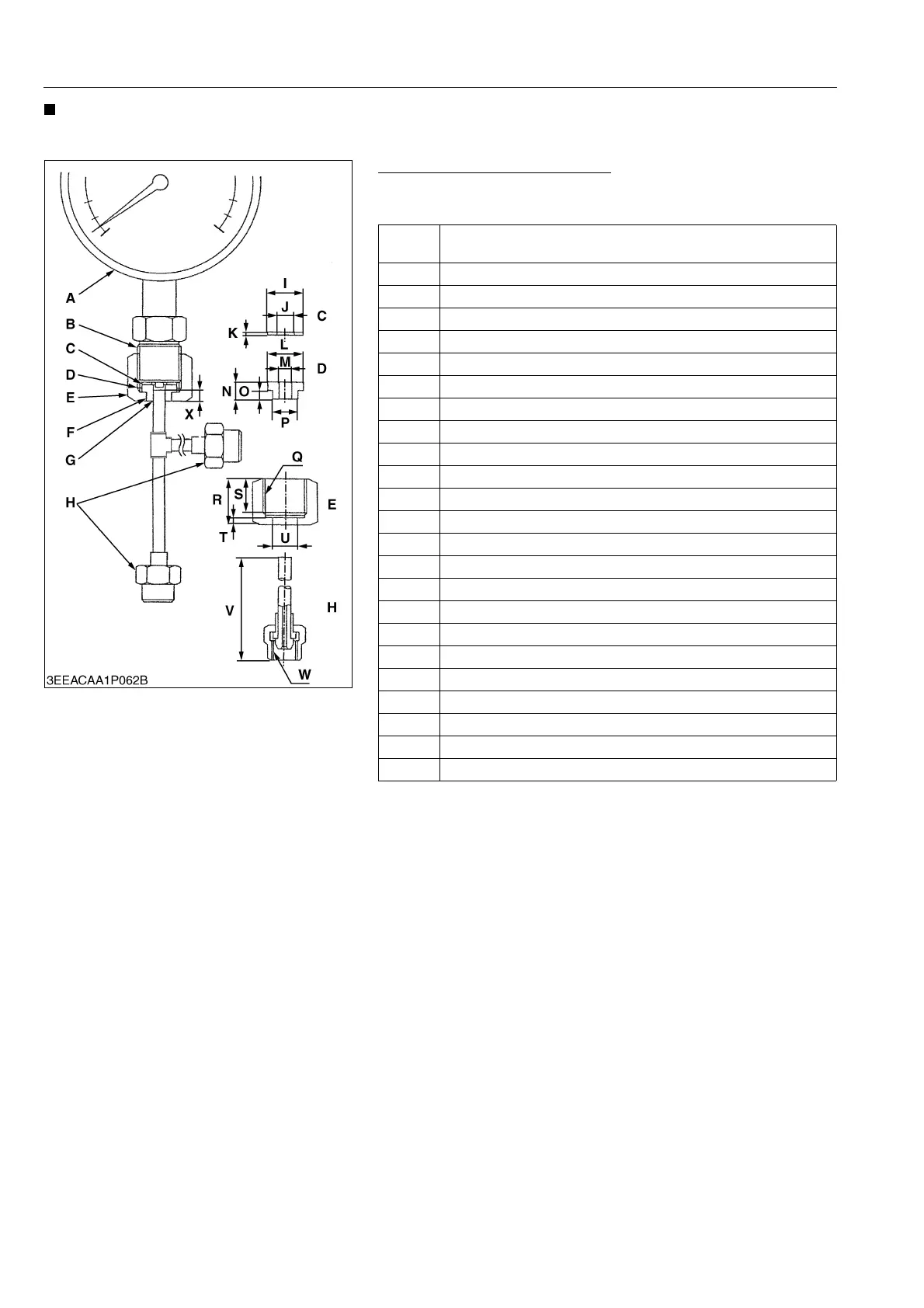

Injection Pump Pressure Tester
Application
• Use to check fuel tightness of injection pumps.
9Y1210436GEG0014US0
A
Pressure gauge full scale:
More than 29.4 MPa (300 kgf/cm
2
, 4267 psi)
B PF 1/2
C Copper gasket
D Flange (Material: Steel)
E Hex. nut 27 mm (1.1 in.) across the plat
F Adhesive application
G Fillet welding on the enter circumference
H Retaining nut
I 17 mm dia. (0.67 in. dia.)
J 8.0 mm dia. (0.31 in. dia.)
K 1.0 mm (0.039 in.)
L 17 mm dia. (0.67 in. dia.)
M 6.10 to 6.20 mm dia. (0.241 to 0.244 in. dia.)
N 8.0 mm (0.31 in.)
O 4.0 mm (0.16 in.)
P 11.97 to 11.99 mm dia. (0.4713 to 0.4720 in. dia.)
Q PF 1/2
R 23 mm (0.91 in.)
S 17 mm (0.67 in.)
T 4.0 mm (0.16 in.)
U 12.00 to 12.02 mm dia. (0.4725 to 0.4732 in. dia.)
V 100 mm (3.94 in.)
W M12 × P1.5
X 5.0 mm (0.20 in.)
