wsm B2420 - Page 52

GENERAL
B2420, WSM
G-38

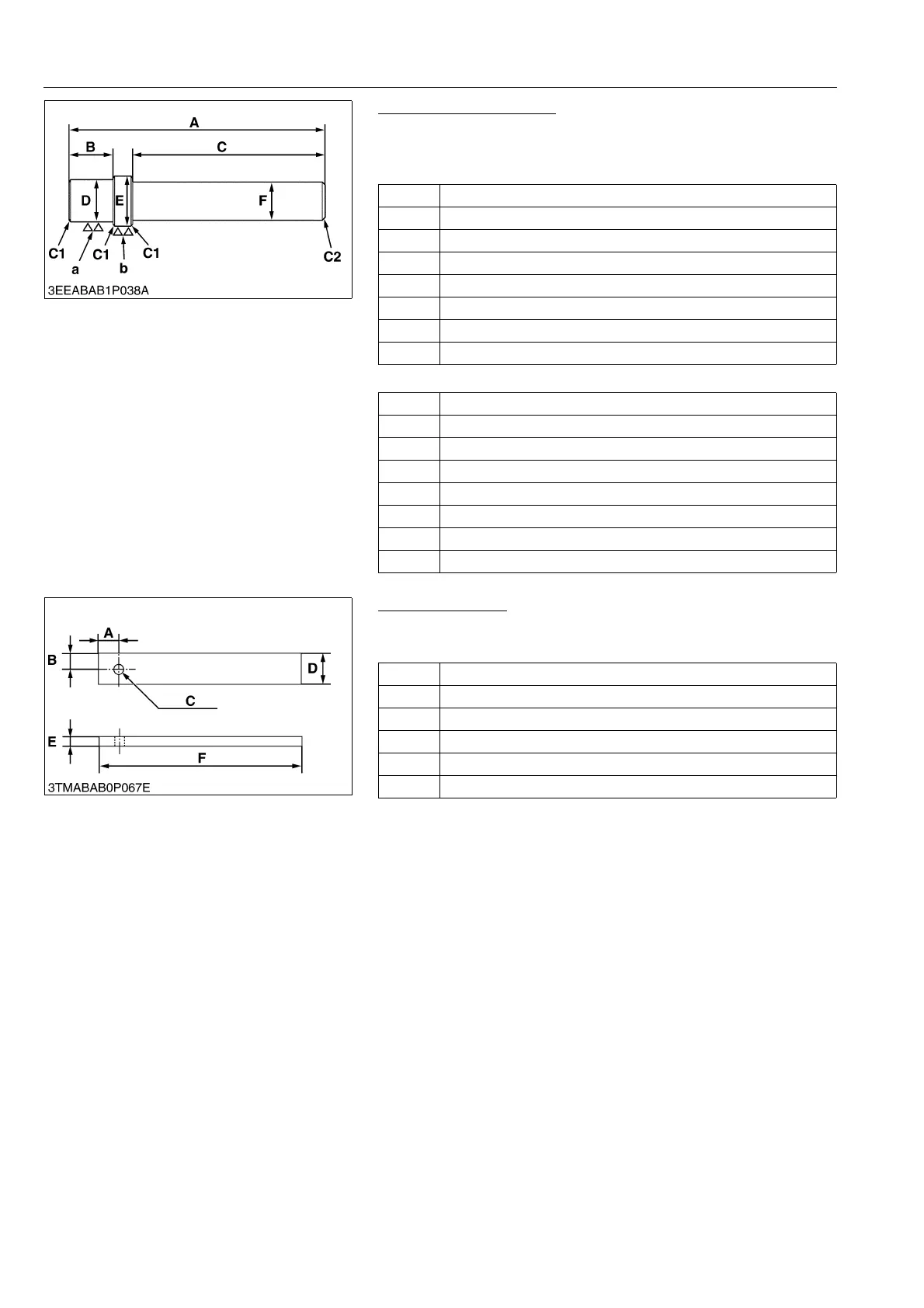

Bushing Replacing Tool
Application
• Use to press out and press in the bushing.
1. For small end bushing
2. For idle gear bushing
9Y1210436GEG0017US0
Flywheel Stopper
Application
• Use to loosen and tighten the flywheel screw.
9Y1210436GEG0018US0
A 157 mm (6.18 in.)
B 24 mm (0.94 in.)
C 120 mm (4.72 in.)
D 21.8 to 21.9 mm dia. (0.859 to 0.862 in. dia.)
E 24.8 to 24.9 mm dia. (0.977 to 0.980 in. dia.)
F 20 mm dia. (0.79 in. dia.)
a 6.3 µm (250 µin.)
b 6.3 µm (250 µin.)
A 196 mm (7.72 in.)
B 26 mm (1.0 in.)
C 150 mm (5.91 in.)
D 25.80 to 25.90 mm dia. (1.016 to 1.019 in. dia.)
E 28.80 to 28.90 mm dia. (1.134 to 1.137 in. dia.)
F 20 mm dia. (0.79 in. dia.)
a 6.3 µm (250 µin.)
b 6.3 µm (250 µin.)
A 20 mm (0.79 in.)
B 15 mm (0.59 in.)
C 10 mm dia. (0.39 in. dia.)
D 30 mm (1.2 in.)
E 8.0 mm (0.31 in.)
F 200 mm (7.87 in.)
KiSC issued 06, 2012 A
