OVERVIEW AND SETUP
1-5
Unlatching the Instrument Shoe
The shoe can be pivoted open 180° from its closed position.
This feature is useful when taking measurements on a surface
that does not allow room for the shoe, or a measurement fixture
that does not require the shoe. Measurements are then activated
using the Read key (see Instrument Configuration for more
details on the Read key).
NOTE: The instrument must be calibrated with the target window
removed when using the instrument with the shoe extended.

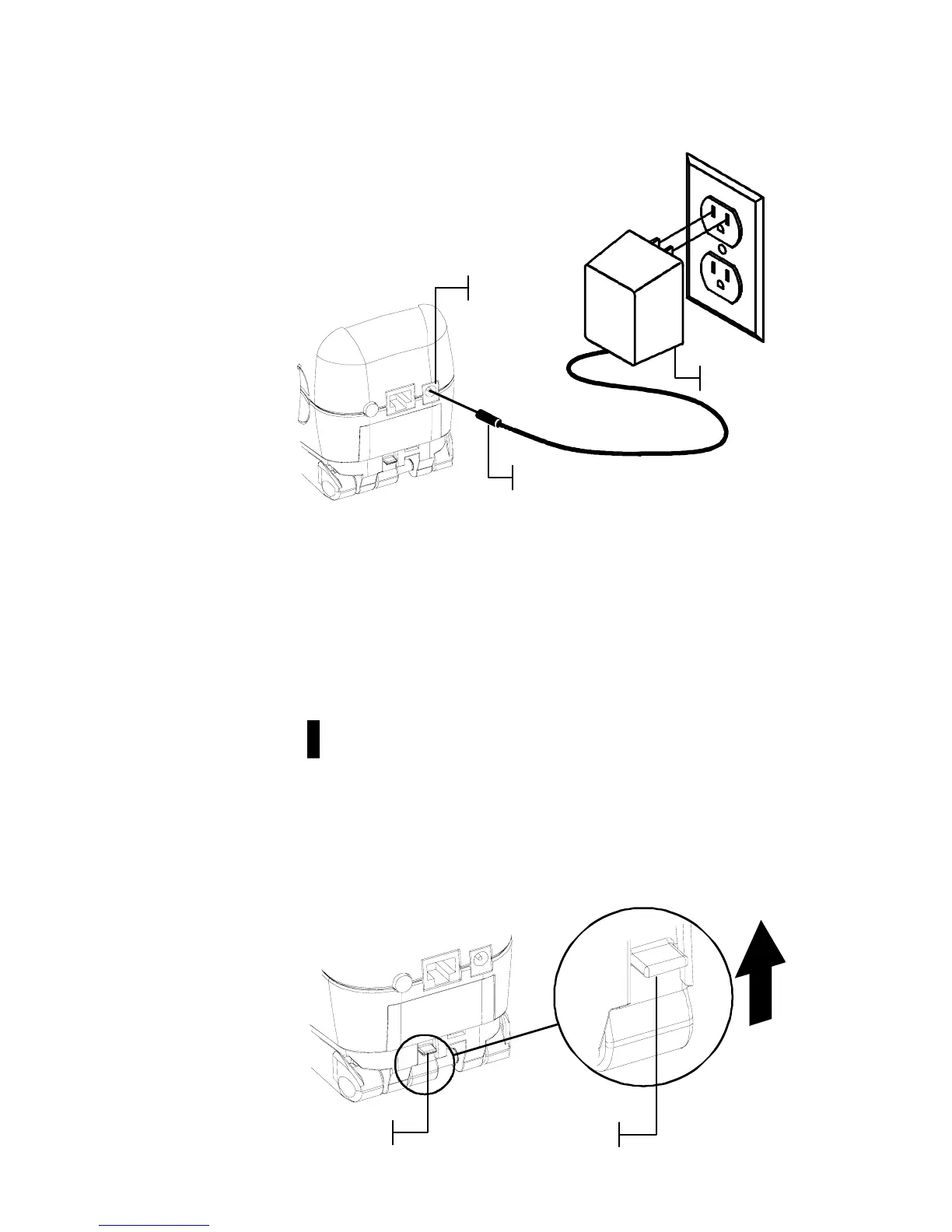

To Unlatch the Instrument Shoe:
1. Hold the shoe next to the instrument housing and lift
upward on the spring-loaded latch.
2. Slowly allow the shoe to pivot toward the back of the
instrument and release the latch.
Shoe Latch
Lift Upwards
Small Plug
Adapter
Power Input
