Chapter 5 Lubrication
System
,;;;,5:..·
;,:R~o,:;,;ta;;;.r.:.:..Y...:W,.;.;;;as;;.;;'t;.:;;.e..;O;,.;,,i.;.;.l
.;;.P.;.;u.;;,;,m;;:;p_(_O..:.p_t_io_n_a..;.1)
___________________
3,4JH3(B)(C)E

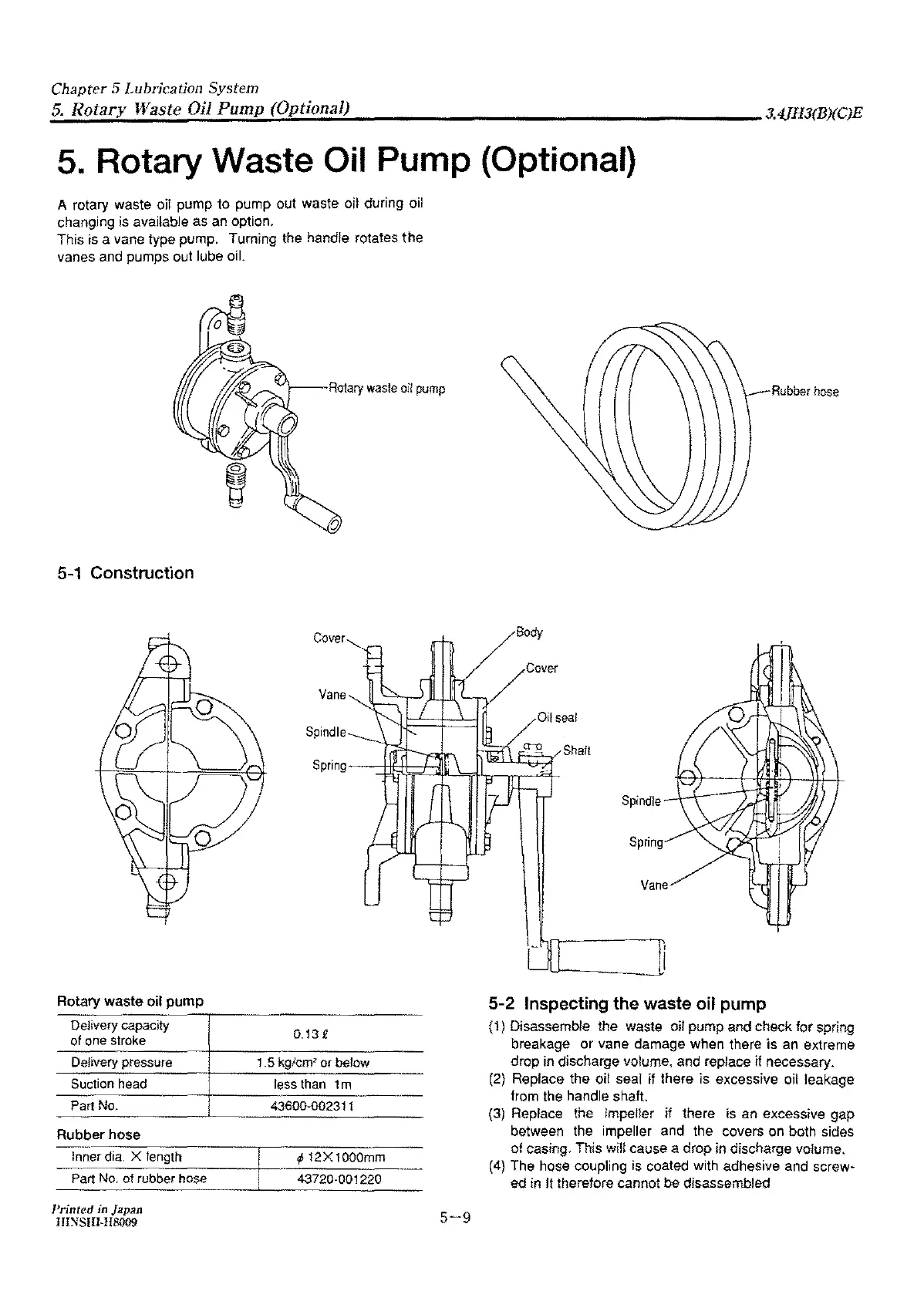

5. Rotary Waste Oil Pump (Optional)
A rotary waste oil pump to pump out waste oil
dur1ng
oil
changing is available as
an
option.
This is a vane type pump. Turning the handle rotates
the
vanes and pumps out lube oil.
5-1 Construction
Rotary
waste
oil
pump
Delivery capacity
of one stroke
Delivery
pressure
Suction
head
Part No.
Rubber hose
Inner
dia,
X length
Part
No.
o1
rubber hose
/'rinted in
Japan
HI:-.'SHI-HB009
Vane
Spindle
0.13.€
1 5 kg/cm
2
or
below
less
than
1m
43600-002311
¢
12XlO00mm
43720-001220
5-9
Rubber
hose
Body
Shalt
Spindle
~._,___Jj
5-2 Inspecting the waste oil pump
{1) Disassemble the waste oit pump and check for spring
breakage or vane damage when there is an extreme
drop in discharge volume, and replace
if
necessary.
(2) Replace the oil seal
if
there is excessive oil leakage
from the handle shaft.
{3}
Replace the impeller
if
there is an excessive gap
between the impeller and the covers on both sides
of casing. This wilt cause a drop in discharge volume.
(4)
The hose coupling is coated with adhesive and screw·
ed in
It therefore cannot be disassembled
