Yanmar 3JH3E - 8-3 Ring gear; 8-4 Position of top dead center and fuel injection timing

Chapter 2 Basic Engine
_S._F_"'l_y_w_h_e_el ___________________________ 3,4JH3(B)(C)E

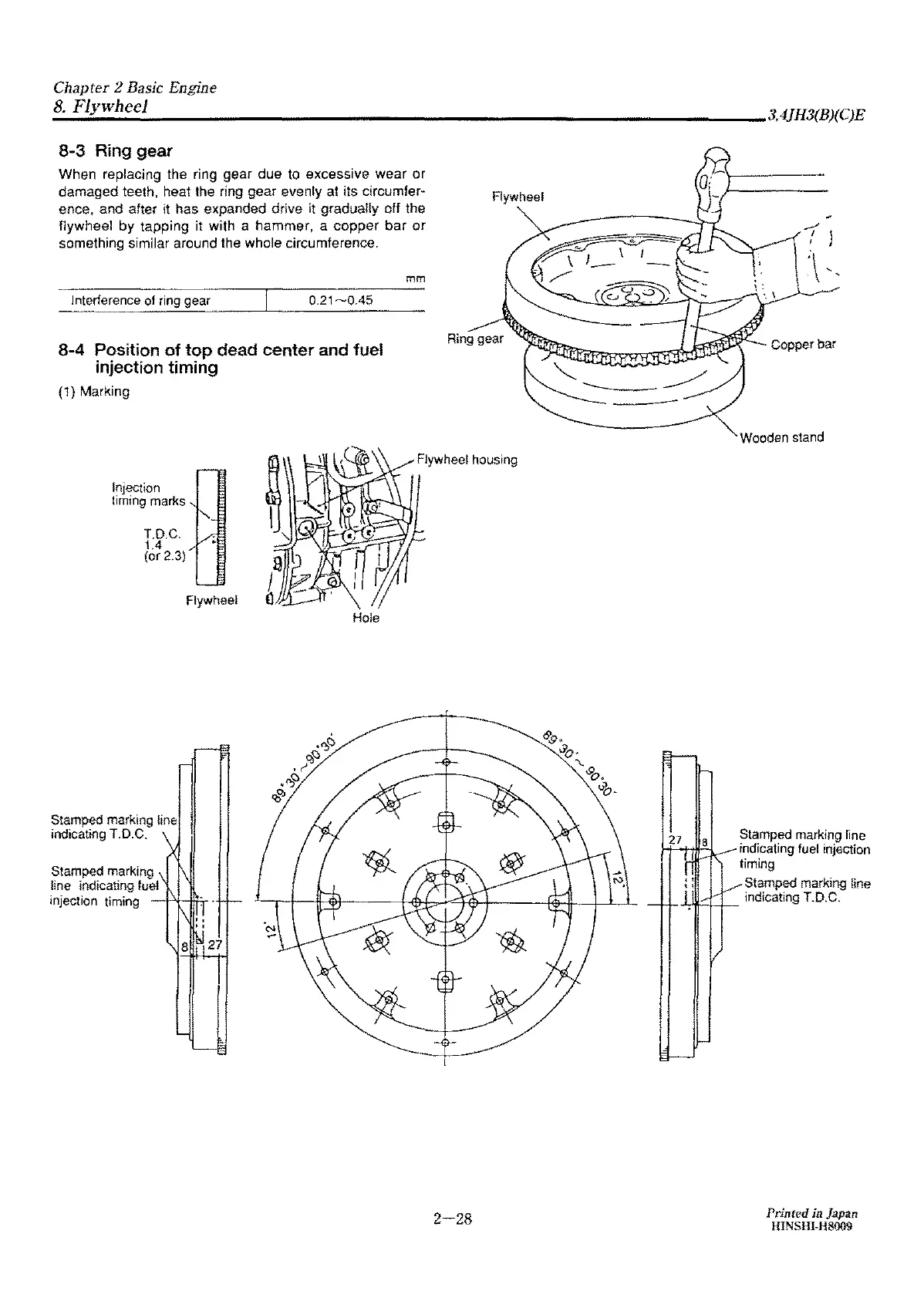

8-3 Ring gear
When replacing the ring gear due to excessive wear or
damaged teeth, heat the ring gear evenly
at its drcumfer-
ence, and after
it has expanded drive it gradually off the
flywheel
by tapping it with a hammer, a copper bar or
something similar around the whole circumference.
Interference of ring gear
0.21 ~0A5
8-4 Position of top dead center and fuel
injection timing
(1} Marking
mm
Flywheel
Flywheel housing
Injection
timing
marks
T.D.C.
1.4
(or 2.3)
Stamped marking line
indicating T.O.C.
Stamped marking
line indicating
fuel
injection timing
Flywheel
Hole
2-28
Wooden stand
Stamped marking fine
indicating fuel injection
timing
Stamped marking line
..._..i.:....J__j__ indicating T.D.C.
