Yanmar 3JH3E - 4. Disassembly; 4-1 Dismantling the clutch

Chapter 7 Reduction and Reversing Gear
~4;... ;;:;D.::is:::a.:::ss;;.:e:::m:;,,;b;;.:l::.,Y ___________________________ 3,4JH3(BXC)E
4. Disassembly

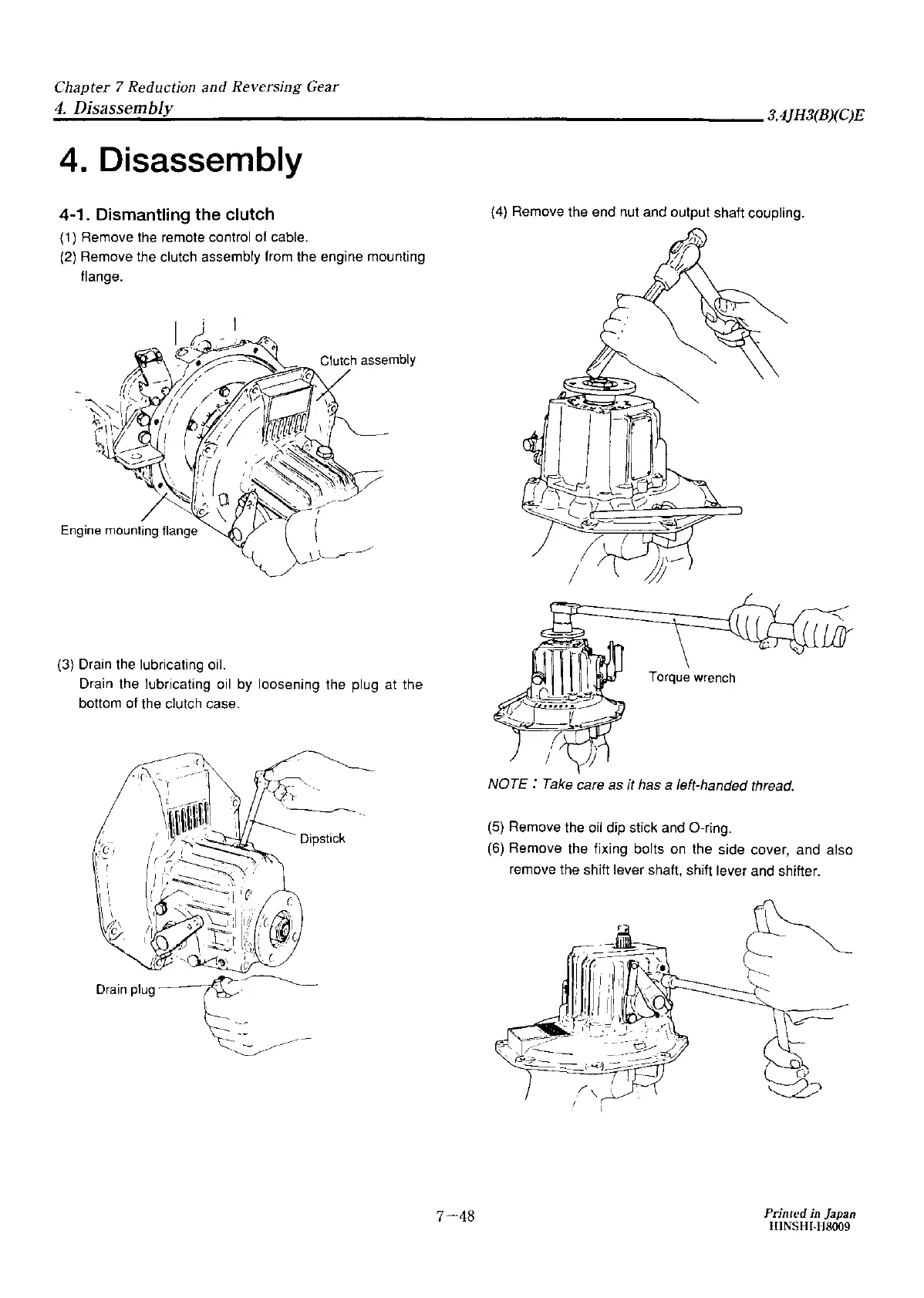

4-1. Dismantling the clutch
(1) Remove the remote control of cable.
(2) Remove the clutch assembly from the engine mounting
flange.
Clutch assembly
(3) Drain the lubricating oil.
Drain the lubricating oil by loosening the plug at the
bottom of the clutch case.
Dipstick
(4) Remove the end nut and output shaft coupling.
Torque wrench
NOTE: Take care as it has a left-handed thread.
(5) Remove the oil dip stick and O-ring.
(6) Remove the fixing bolts on the side cover, and also
remove the shift lever shalt, shift lever and shifter.
~j/,. ,.----.
--- . ' •-- - - ,\
- G~~,-~
1
~f~-~~-
