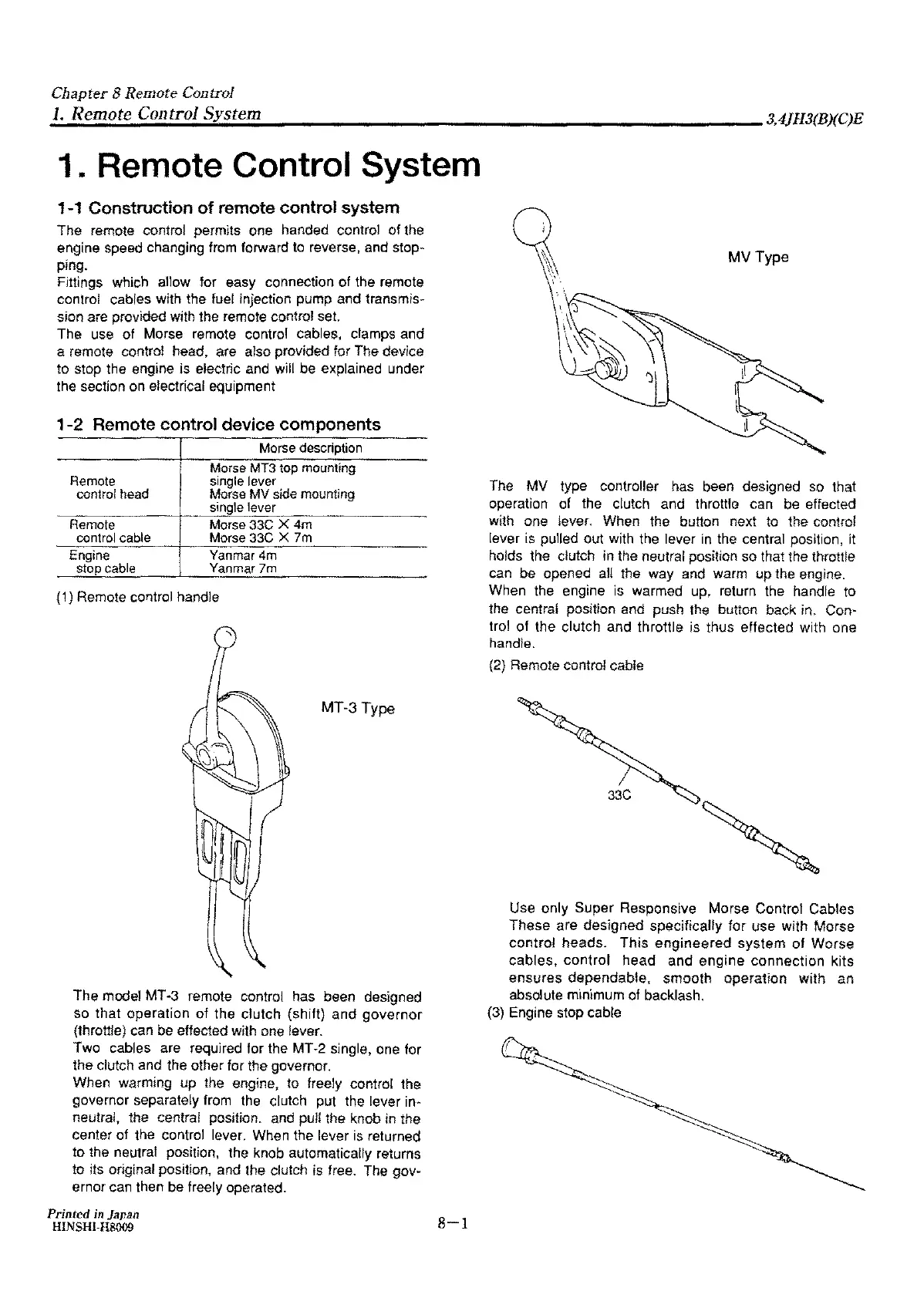

Chapter 8 Remote Control
_1_.
_R_e_m_o_te_C_o_11_tr_o_l_S
....
y_s_te_m
________________________
3,4JH3(B)(C)E
1 . Remote Control System
1-1 Construction
of
remote control system
The remote control permits one handed control of the
engine speed changing from forward to reverse, and stop-
ping.
Fittings which allow for easy connection of the remote
control cables with the fuel injection pump and transmis-
sion are provided with the remote control set.
The use of Morse remote control cables, clamps and
a remote contra! head, are also provided for The device
to stop the engine is electric and will be explained under
the section on electrical equipment
1-2
Remote control device components
Remote
control
head
Remote
control
cable
Engine
stop
cable
Morse
description
Morse
MT3
top
mounting
single
lever
Morse
MV
side
mounting
single
lever
Morse
33C
X
4m
Morse
33C
X 7 m
Yanmar 4m
Yanmar7m
{1) Remote control handle
The model MT-3 remote control has been designed
so that operation of the clutch {shift) and
governor
{throttle) can be effected with one !ever.
Two cables are required for the MT-2 single, one for
the clutch and the other for the governor,
When warming up the engine, to freely control the
governor separately from the clutch put the lever in•
neutral, the central position. and pull the knob in the
center of the control
lever. When the lever
is
returned
to the neutral position, the knob automatically returns
to its original position, and the clutch is tree. The gov•
ernor can then be freely operated.
Printed
in
Japan
HINSHI-H8009
8-1
MVType
The
MV
type controller has been designed
so
that
operation of the clutch and throttlo can
be
effected
with one iever. When the button next to the control
lever
is
pulled out with the lever
in
the central position,
it
holds the clutch in the neutral positron so that the throttle
can be opened all the way and warm up the engine.
When the engine is warmed up, return the handle to
the central position and push the button back in, Con-
trol ot the clutch and throttle is thus effected with one
handle.
(2)
Remote control cable
Use only Super Responsive Morse Control Cables
These are designed specifically
for
use with Morse
control
heads.
This
engineered
system
of
Worse
cables, control head and engine connection kits
ensures dependable, smooth operation with an
absolute minimum of backlash.
{3) Engine stop cable
