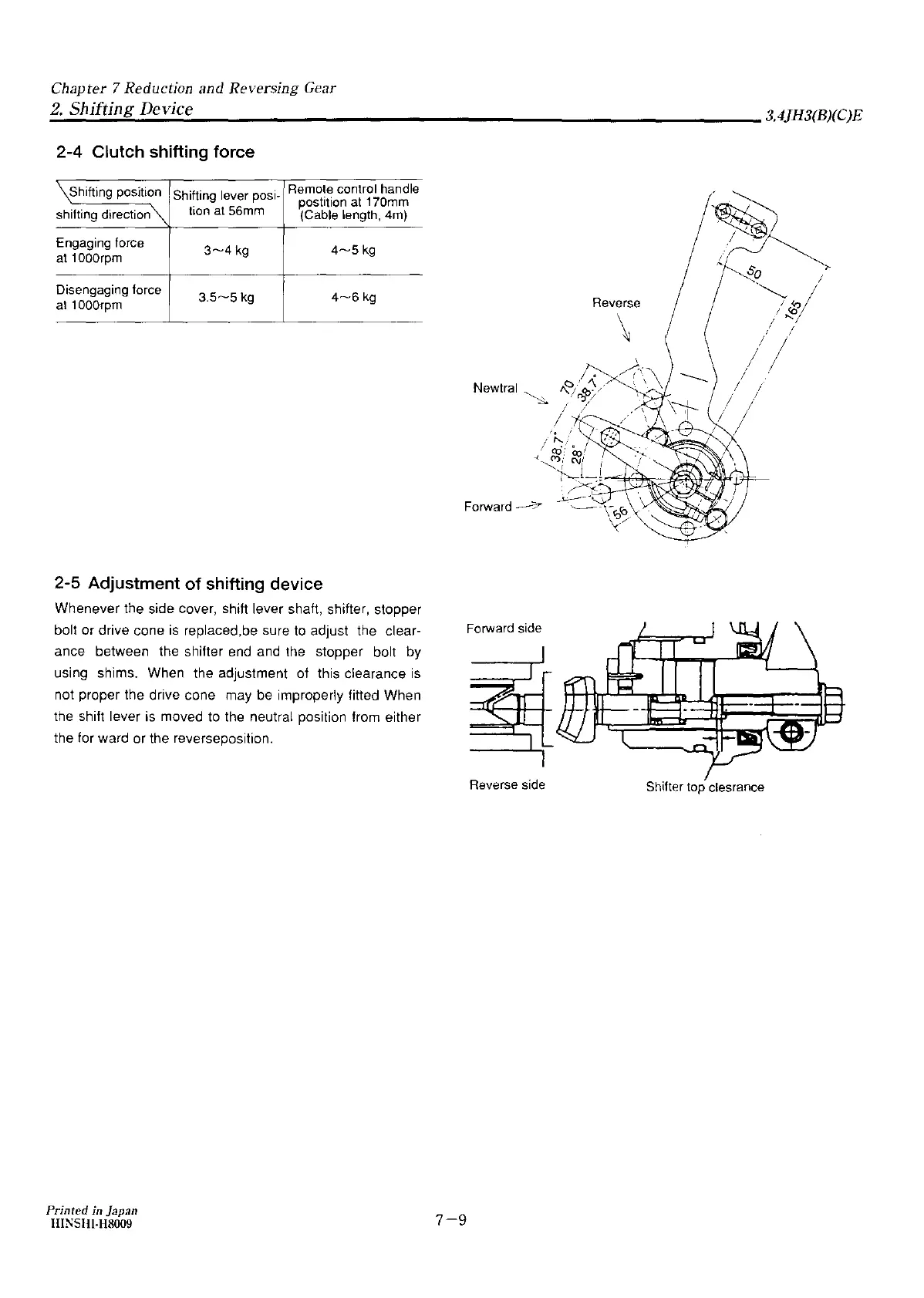

Chapter 7 Reduction and Reversing Gear
.;;;.2;... S;;.;h;..;;1_·ft_in~g;;;..._D_e_v1_·c .... e __________________________ 3.4JH3(B)(C)E
2-4 Clutch shifting force
\shifting position
Shifting lever posi-
Remote control handle
postition
at 170mm
shifting direction""
lion
at 56mm
(Cable length, 4m)
Engaging force
3~4kg
4~5kg
at 1000rpm
Disengaging force
3.5~5 kg
4~6 kg
al 1000rpm
2-5 Adjustment of shifting device
Whenever the side cover, shift lever shaft, shifter, stopper
boll or drive cone
is replaced,be sure to adjust the clear-
ance between the shi1ter end and the stopper bolt by
using shims. When the adjustment of this clearance is
not proper the drive cone may be improperly fitted When
the shift lever is moved to the neutral position from either
the for ward or the reverseposition.
Printed in Japan
m:,,;sm-Hsoo9
Forward side
Reverse side
Shifter top clesrance
7-9
