Yanmar 3JH3E - 9. Electric type Engine Stopping Device (Optional); 9-1 Solenoid

Chapter 9 Electrical
System
_9_.
E_le_c_tr_i_c_T....;y....;p_e_E_n_g1_·n_e_S_t_o_,PP_1_·n_g_D_e_v1_·c_e_(_O
__
p_t1_·0_n_al_1
______________
3,4JH3(B)(C)E

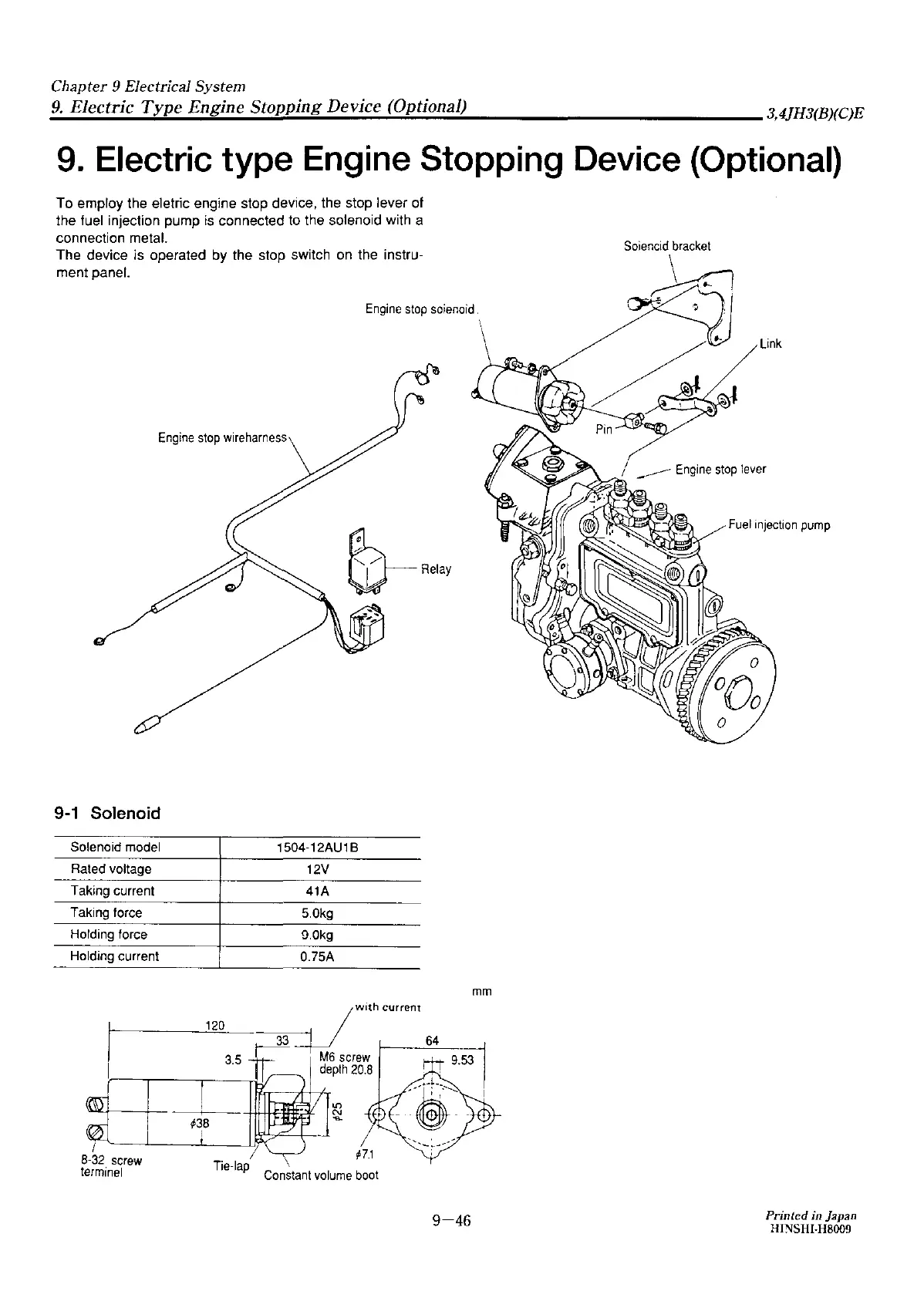

9. Electric type Engine Stopping Device (Optional)
To employ the eletric engine stop device, the stop lever of
the fuel injection pump
is
connected to the solenoid with a
connection metal.
The device is operated
by
the stop switch
on
the instru-
ment panel.
Engine
stop
soienoid.
Engine
s1op
wireharness
9-1
Solenoid
Solenoid model
Rated voltage
Taking current
Taking force
Holding force
Holding current
I
8-32
screw
terminel
1504-12AU1 B
12V
41A
5.0kg
9.0kg
0.75A
}38
I
\
mm
9-46
Link
Fuel
injection pump
