Yanmar 3JH3E - 4-3 Removal of the intermediate shaft

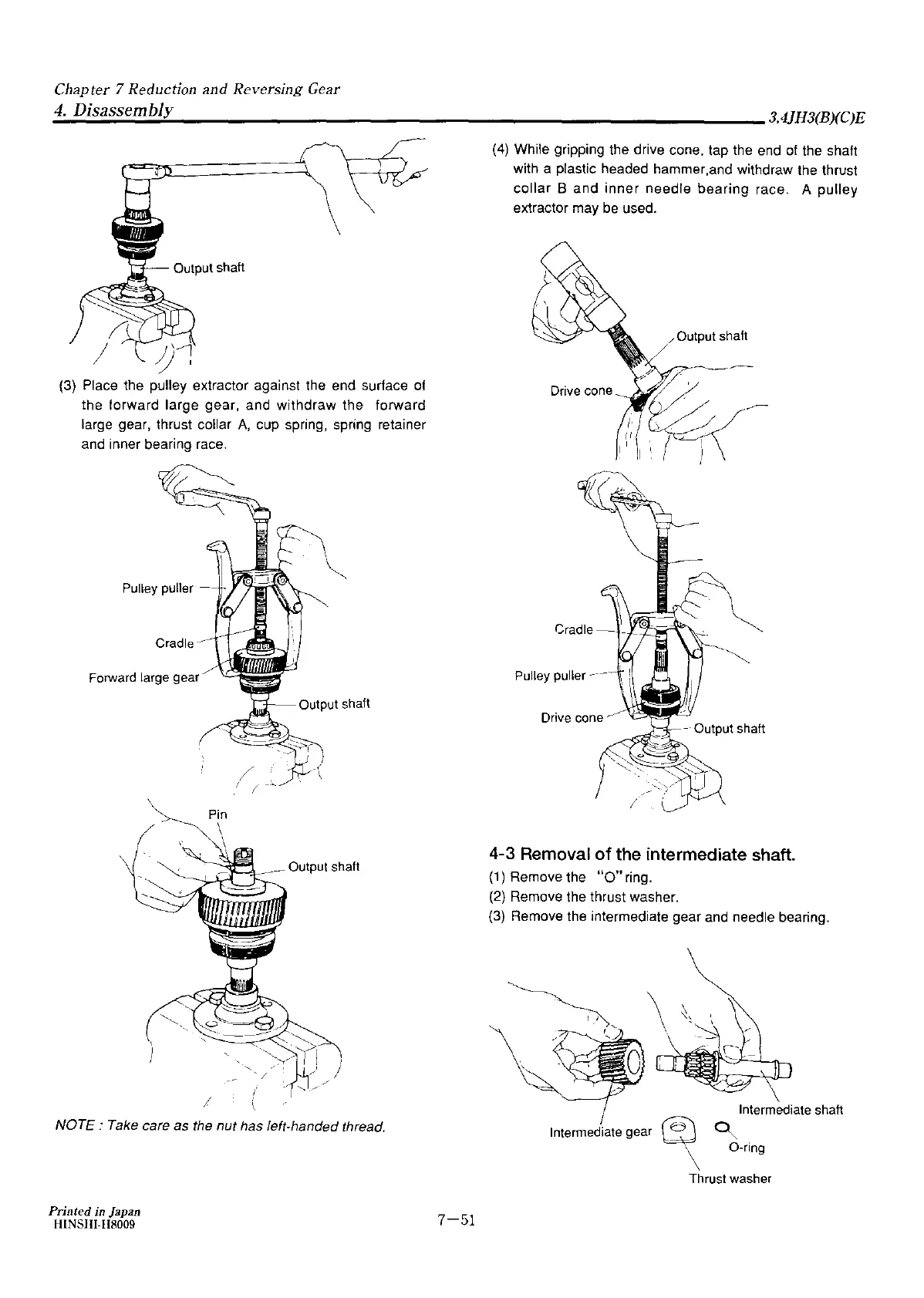

Chapter 7 Reduction and Reversing Gear
~4;... ;;;;;D.,::is::;a::;ss::,:e;.::m::,:b~l.::_Y ___________________________ 3.4]H3(B)(C)E
(3) Place the pulley extractor against the end surface of
the forward large gear, and withdraw the forward
large gear, thrust collar
A. cup spring, spring retainer
and inner bearing race.
Cradle---
Foiward large gear
____ Output shaft
J
I
(
NOTE: Take care as the nut has left-handed thread.
Printed in Japan
HINSIII-118009
7-51
(4) While gripping the drive cone, tap the end of the shaft
with a plastic headed hammer.and withdraw the thrust
collar B and inner needle bearing race. A pulley
extractor may be used.
/ Output shaft
4-3 Removal of the intermediate shaft.
(1) Remove the "O" ring.
(2) Remove the thrust washer.
(3) Remove the intermediate gear and needle bearing.
Intermediate shaft
Intermediate gear ~ °'
'\ 0-ring
Thrust washer
