Chapter 2 Inspection and Servicing of Basic Engine Parts
_4._C_o_11_n_e_c_ti_ng_R_o_d __________________________ 3.4JH3(B)(C)E
mm
Standard Wear limit
Pin pin bushing
26.025~26.038
26.10
inside dia
Piston pin
and bushing
oil clearance
0.025~0.051 0.2
Since the small end is tapered, bush insertion is extremely
difficult Any minor mistake will cause abnormalities such
as twist and bite. Do not insert the bush on-site.
(No piston pin bush spare part is available. It is included in
the con-rod assembly supplied as a spare part.)

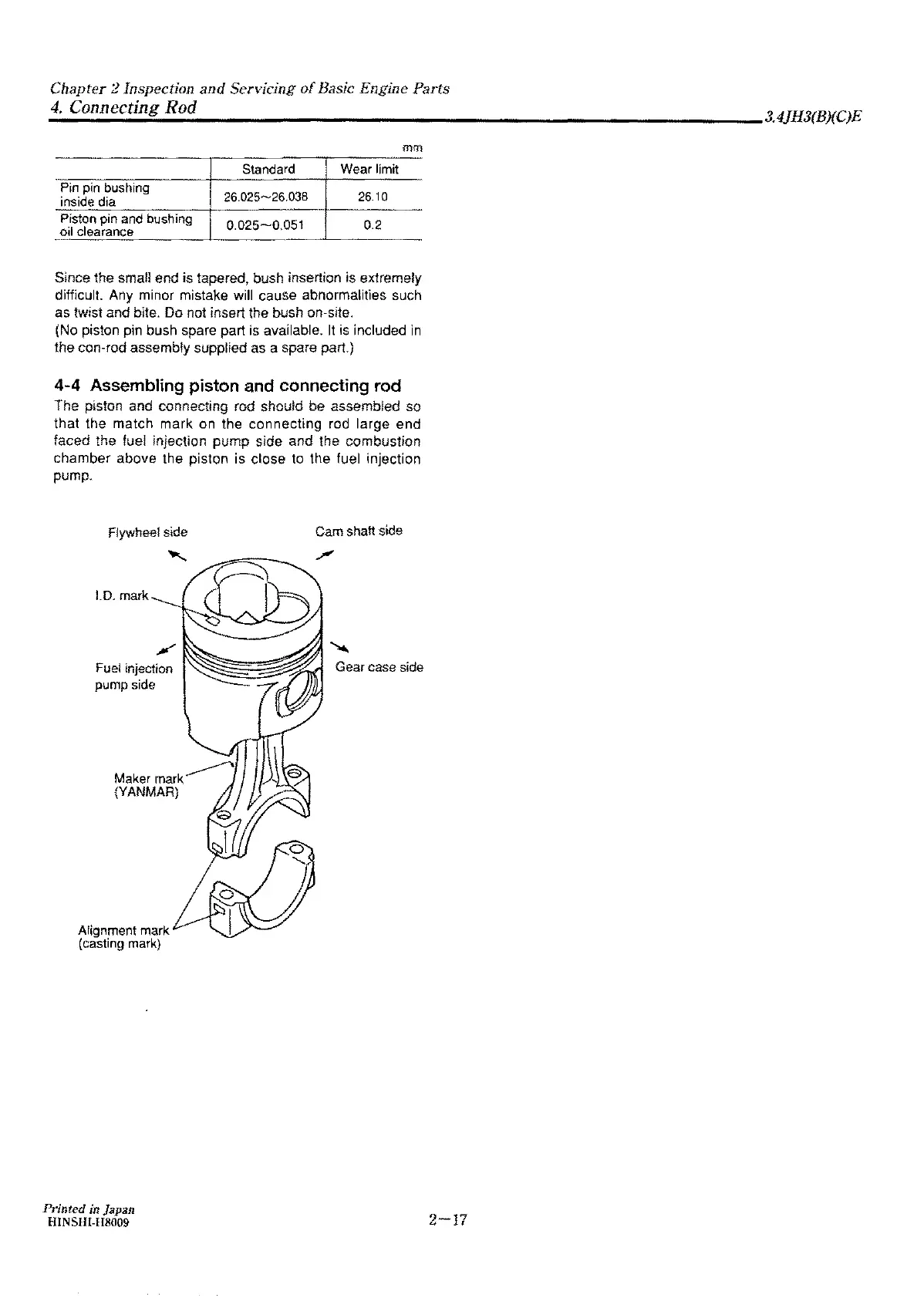

4-4 Assembling piston and connecting rod
The piston and connecting rod should be assembled so
that the match mark on the connecting
rod large end
faced the
fuel injection pump side and the combustion
chamber above the piston is close to the fuel injection
pump.
Flywheel side
'
1.0. mark
Fuel injection
pump side
Alignment mark
(casting mark)
Printed in J;apan
HINSHI-HS009
Cam shaft side
""
Gear case side
2-17
