Yanmar 3JH3E - 5-3 Reassembly of the shiating device

Chapter 7 Reduction and Reversing Gear
_5._R_e_a_s_se_m_b_l.;..y __________________________ 3,4Jll3(B)(C)E

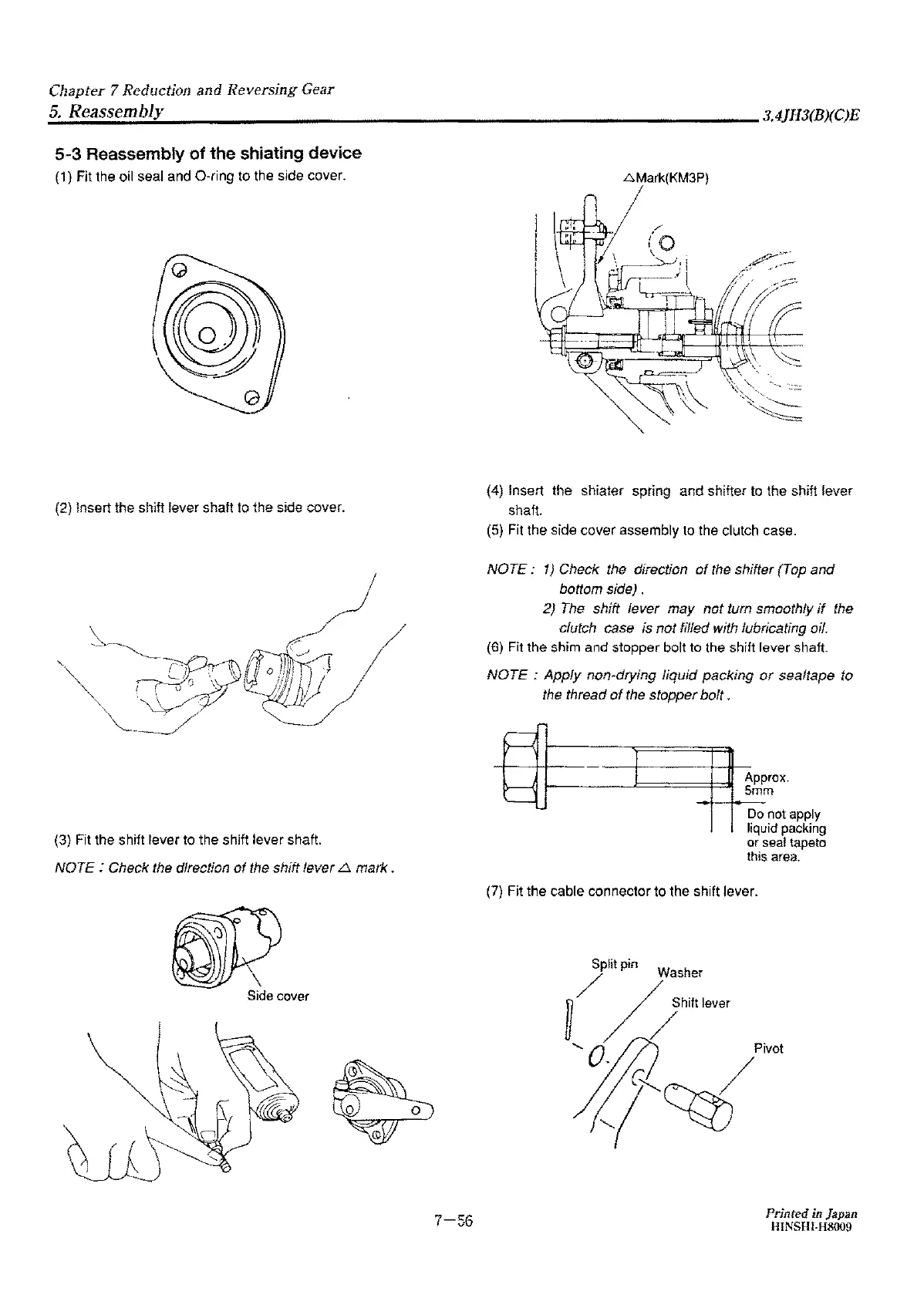

5-3 Reassembly of the shiating device
(1) Fit the oil seal and O-ring to the side cover.
(2}
lnsert the shift lever shaft to the side cover.
(3) Fit the shift !ever to the shift lever shaft.
NOTE : Check the direction of the shift lever L'.'l. mark .
Side cover
7-56
'
L:::.Mark(KM3P)
I
/
. (o
' \
\ ~' i
- _)
er:.:,_
., ;::;:.:;:-
,.;..-
(4) Insert the shiater spring and shifter to the shift lever
shaft.
(5) Fit the side cover assembly to the clutch case.
NOTE: 1) Check the direction of the shifter (Top and
bottom side) .
2) The shift fever may not tum smoothly if the
clutch case
is not filled with lubricating oil.
(6) Fit the shim and stopper bolt to the shift lever shaft.
NOTE : Apply non-drying liquid packing or sealtape to
the thread
of the stopper bolt .
Approx.
5mm
Do not apply
liquid packing
or sea! tapeto
this area.
(7) Fit the cable connec1or to the shift lever.
Printed in Japan
HINSHI-H8009
