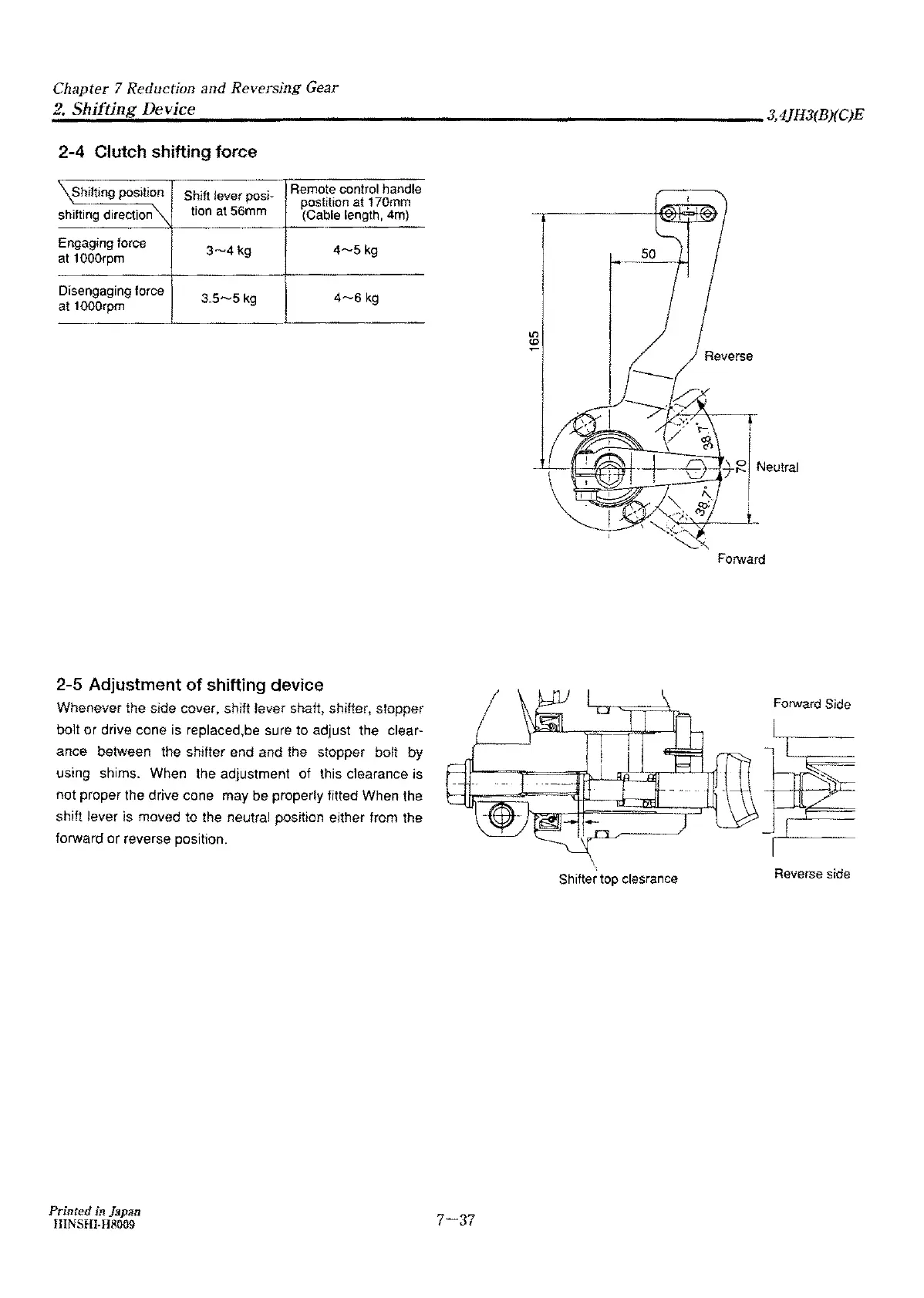

Chapter 7 Reduction and Reversing Gear
,::2·:..;S~h:.:,:i::,:ft~in~g~D~e.,;.;v1:;·c;,:;;,e
__________________________
3,4JH3(B)(C)E
2-4
Clutch shifting force
\ Shifting position
Shift lever posi-
Remote control handle
postition
at
170mm
shifting
direction\
lion at 56mm
(Cable
length,
4m)
Engaging
force
3~4kg
4~5kg
at
1000rpm
Disengaging force
3.5~5
kg
4~6
kg
at
1000rpm
2-5 Adjustment
of
shifting device
Whenever the side cover, shift lever shaft, shifter, stopper
bolt or drive cone is replaced.be sure to adjust the clear-
ance between the shitter end and the stopper bolt
by
using shims. When the adjustment of this clearance is
not proper the drive cone may be properly fitted When the
shift lever is moved to the neutral position either from the
forward or reverse position.
Printed in ]ap,m
HINSH1-H8009
7-37
ll'l
(0
\
Shifter top clesrance
'
lR
Neutral
j
Forward
Forward Side
Reverse side
