Yanmar 3JH3E - 4-4 Dismanting the shifting device

Chapter 7 Reduction and Reversing Gear
4. Disassembly
________________________________ 3,4JH3(B)(C)E

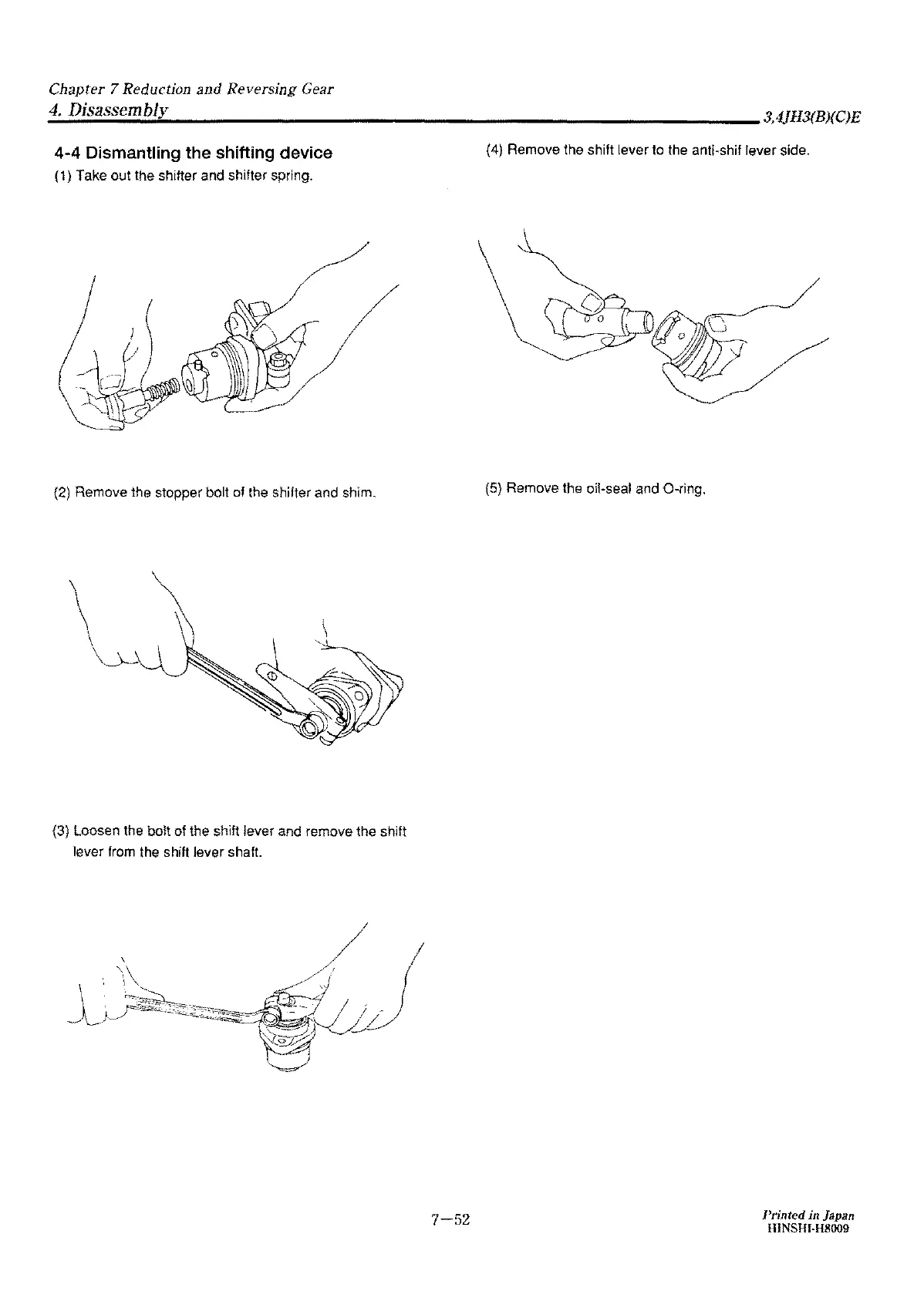

4-4 Dismantling the shifting device
(1) Take out the shifter and shifter spring.
(2) Remove the stopper bolt of the shifter and shim.
{3) Loosen the bolt of the shift lever and remove the shift
lever from the shift lever shaft.
7-52
{4) Remove the shift lever to the anti-shit lever side.
(5) Remove the oil-seal and O-ring.
Printed in Japan
HINSHI-H8009
