Chapter 3 Fuel Injection
Equipment
2.
Governor
____________________________
3,4]H3(B)(C)E
2-2. Disassembly Reassembly and Inspection
of Governor

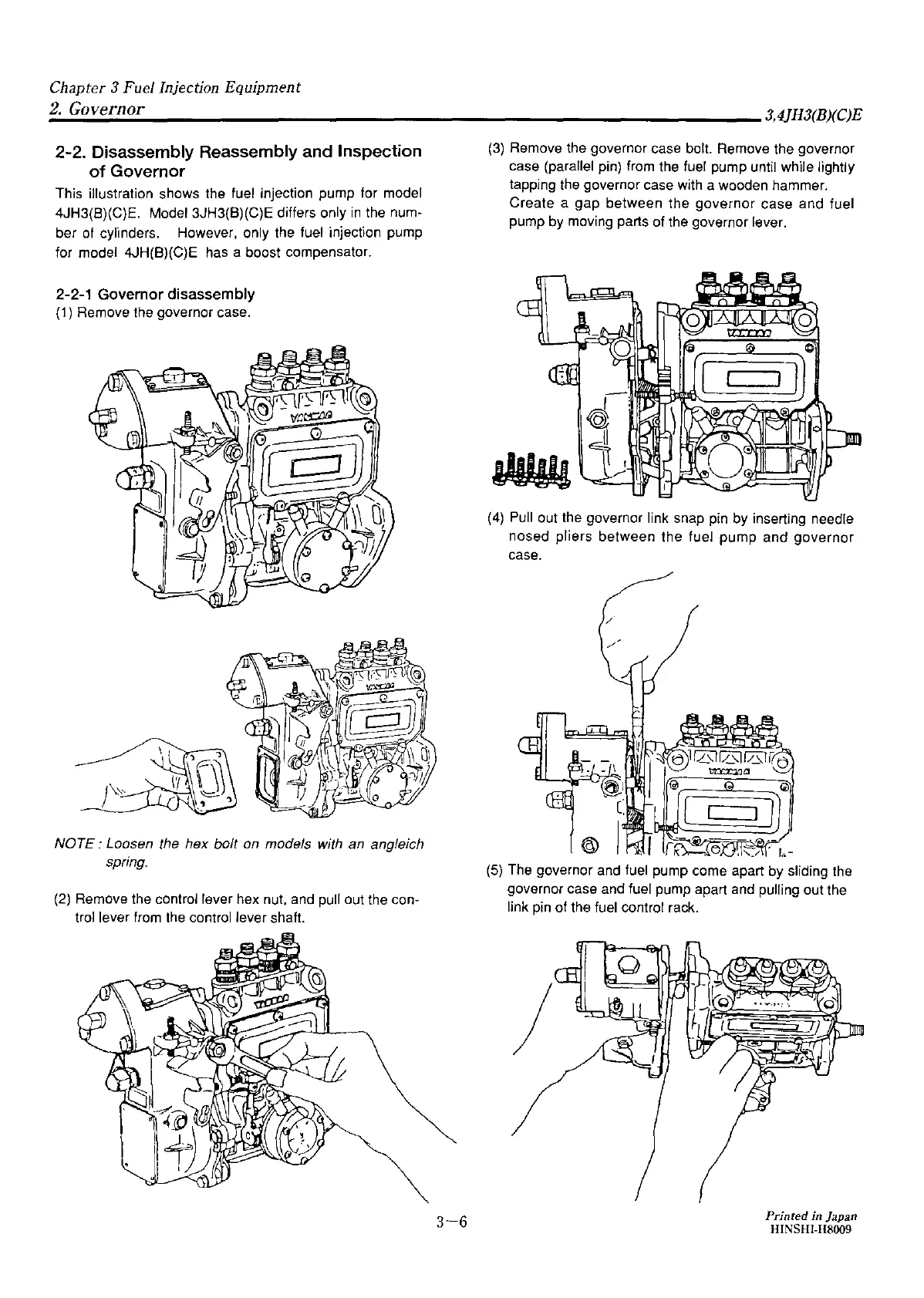

This illustration shows the fuel injection pump for model
4JH3(8)(C)E. Model 3JH3(B)(C)E differs only
in
the num•
ber
of
cylinders. However, only the fuel injection pump
for model 4JH(B){C)E has a boost compensator.
2-2-1 Governor
disassembly
(1)
Remove
the
governor case.
NOTE:
Loosen the hex bolt on models with an angleich
spring.
(2)
Remove the control lever hex nut, and pull out the con-
trol lever from
the
control lever shaft.
3-6
(3)
Remove the governor case bolt. Remove the governor
case (parallel pin) from the fuel pump until while lightly
tapping the governor case with a wooden hammer.
Create a gap between the governor case and fuel
pump by moving parts of the governor lever.
~
(4)
Pull out the governor link snap pin
by
inserting needle
nosed pliers between the fuel pump and
governor
case.
(5)
The governor and fuel pump come apart by sliding the
governor case and fuel pump apart and pulling out the
link
pin
of the fuel control rack.
