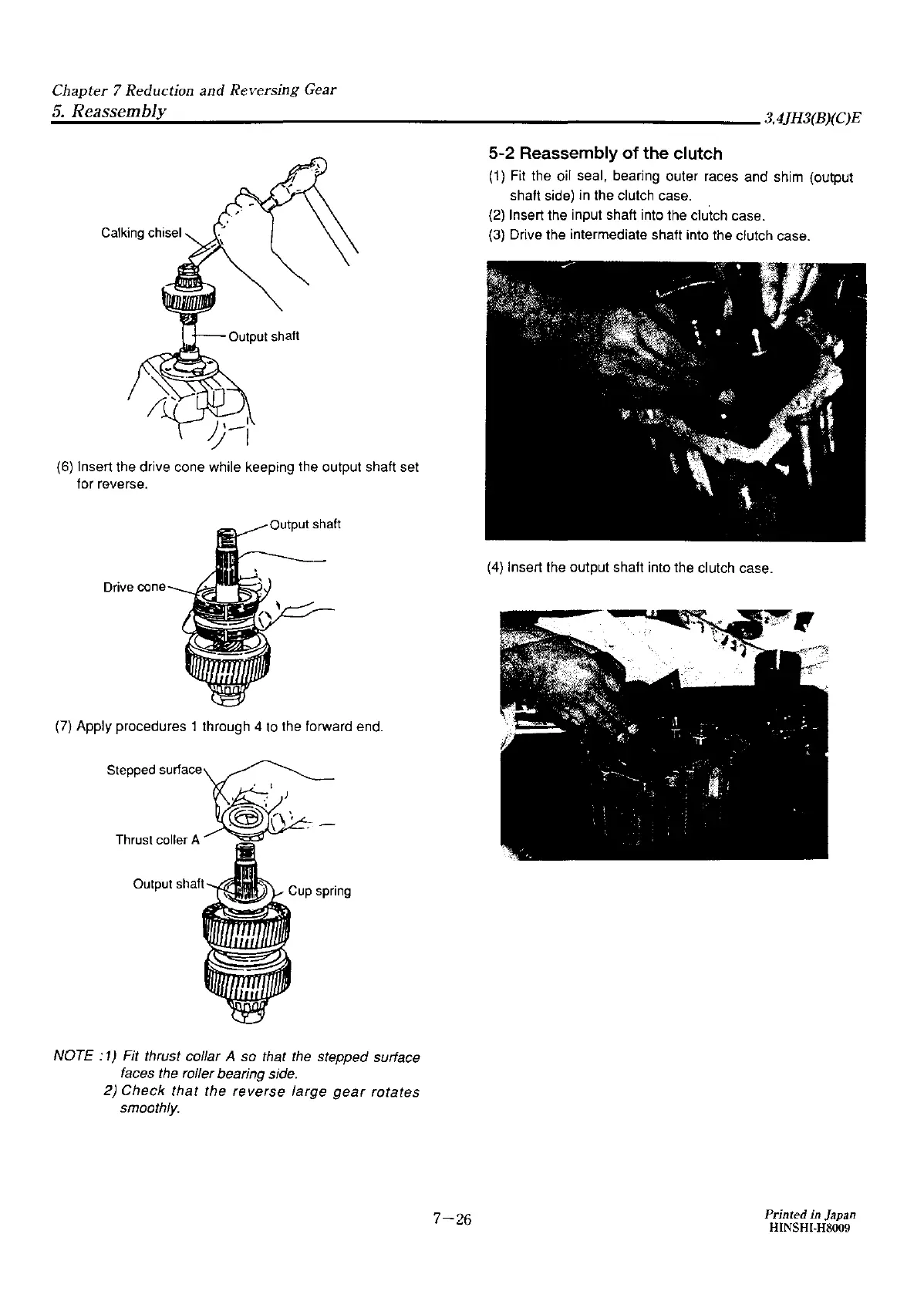

Yanmar 3JH3E - 5-2 Reassembly of the clutch

Chapter 7 Reduction and Reversing Gear
.:::5·:..;R=ea::.:s;.:;s.:;;em=b::a:ly ___________________________ 3_4JH3(B)(C)E
Calking chisel
(6) Insert the drive cone while keeping the output shaft set
for reverse.
Output shaft
(7) Apply procedures 1 through 4
to the forward end.
Stepped surface
Thrust coller A
Output shaft
NOTE : 1) Fit thrust collar A so that the stepped surface
faces the roller bearing side.
2) Check that the reverse large gear rotates
smoothly.
7-26
5-2 Reassembly of the clutch
(1) Fit the oil seal, bearing outer races and shim (output
shaft side) in the clutch case.
(2) Insert the input shaft into the clutch case.
(3) Drive the intermediate shaft into the clutch case.
(4) Insert the output shaft into the clutch case.
Printed in Japan
HINSHI-H8009
