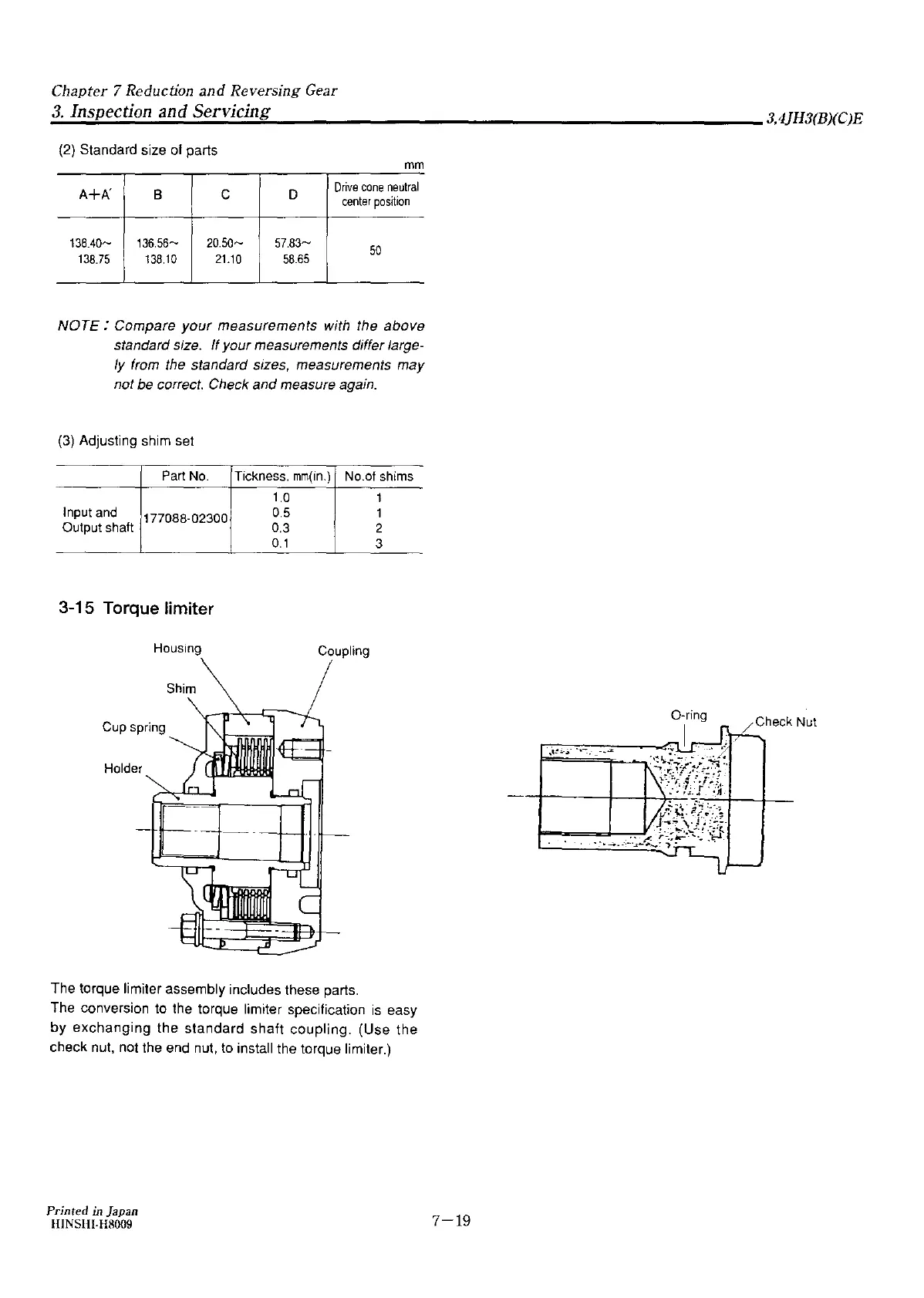

Chapter 7 Reduction and Reversing Gear
~3.:... l~n.:,:;s;,!;p:.:;;e;,:;;,c;;ti~on:.:...;a:.;.:n:,:;:d:...;S:;;.;e:;.:r:...:v..:.ic:;;,;1:.;.:·n~g~----------------------- 3,4JH3(B)(C)E
(2} Standard size of parts
mm
A+A.' B C D
Drive cone ne ~tr al
center position
138.40~ 136.56~ 20.50~ 57.83~
50
138.75 138.10
21.10
58.65
NOTE: Compare your measurements with the above
standard size. If your measurements differ large-
ly from the standard sizes, measurements may
not be correct. Check and measure again.
(3} Adjusting shim set
Part No. Tickness. mm(in.) No.of shims
1.0
1
Input and
17708 8- 02300
0.5
1
Output shaft
0.3
2
0.1
3
3-15 Torque limiter
Housing
Coupling
The torque limiter assembly includes these parts.
The conversion to the torque limiter specification
is easy
by exchanging the standard shaft coupling. (Use the
check nut, not the end nut, to install the torque limiter.)
Printed in Japan
HJNSHI-H8009
0-ring
,.,..,--_-----,,,:, I ..
:,t--~ -~- __ ..,.
7-19
