Chapter 9 Electrical System
;,;;.8;;..;.
A;.;,;;ir~R;.;;.;.;ea;;;.;;t;.;.er;;....;..(O~p:;;,.;t;;;.;io;.;;,n;.;;;a;;;;;;l)
_______________________
3,4JH3(BXC)E

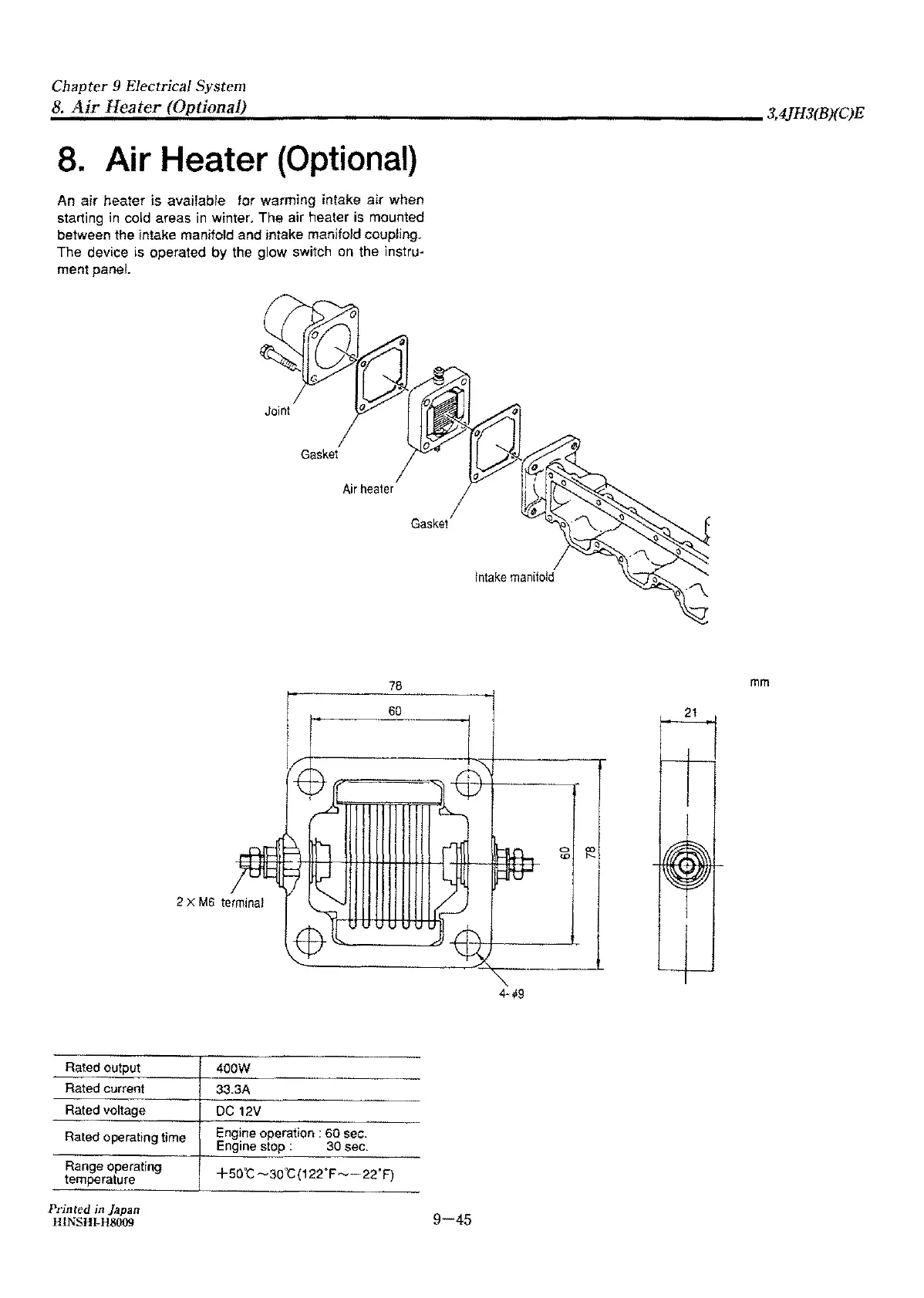

8.
Air Heater
(Optional)
An
air
heater is available tor warming intake
air
when
starting
in
cold areas in winter. The air heater is mounted
between the intake manifold and intake manifold coupling.
The device is operated
by
the glow switch on the instru•
mentpaneL
Joint
Gaske!
Air
healer
Gasket
78
60
2
x
M6
terminal
Rated output
Rated current
Rated voltage
Rated operating time
Range
operating
temperature
Printed
in
Japan
HINSHI-H8009
400W
33.3A
DC
12V
Engine operation :
60
sec.
Engine slop : 30 sec.
+so·c~3o·c(122'F
~-22'F)
9-45
Intake
manilold
mm
