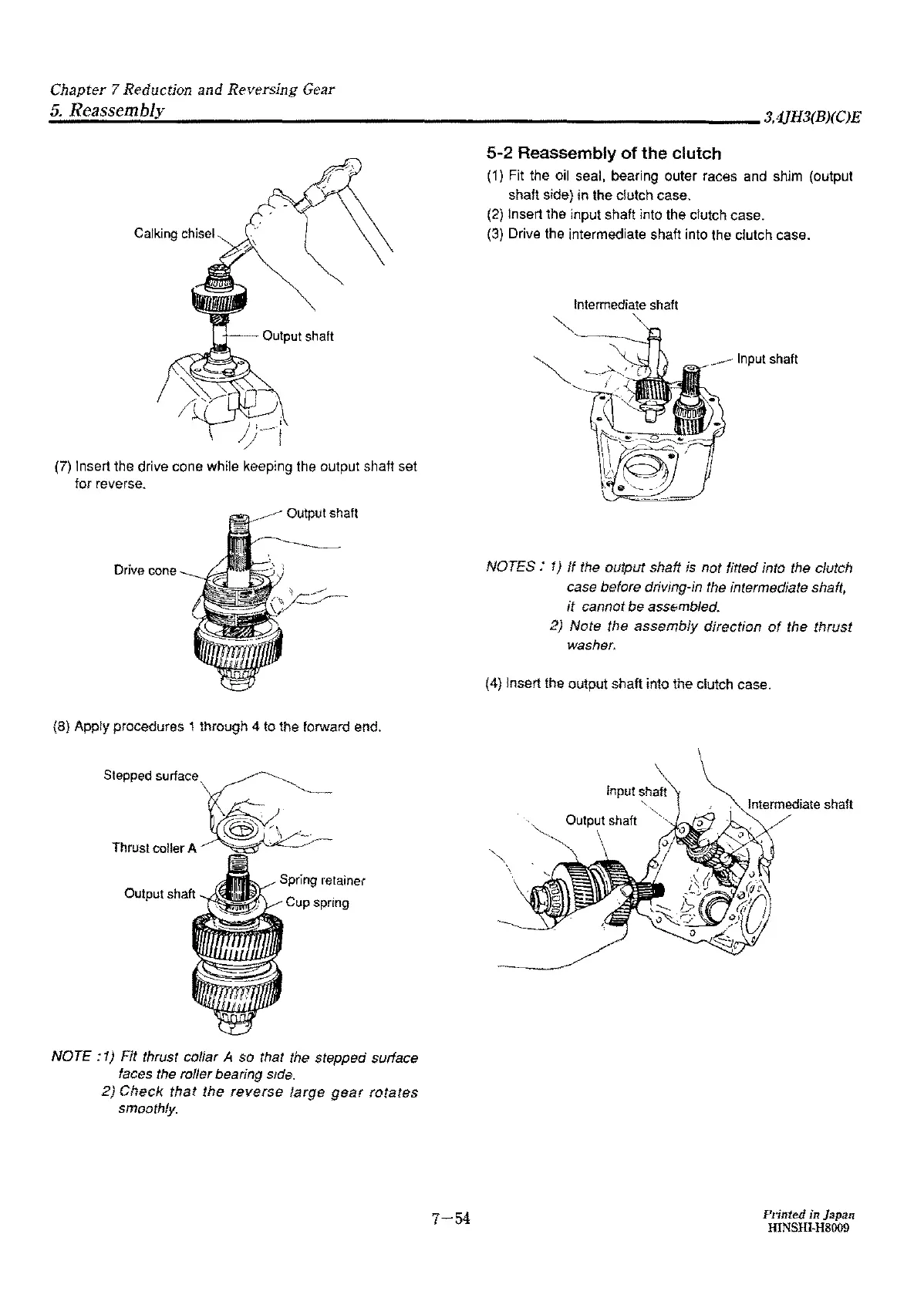

Yanmar 3JH3E - 5-2 Reassembly of the clutch

Chapter 7 Reduction and Reversing Gear
.:;5;... ;.;R:;;;ea::;S;;:;S:;;;em=b;:,IY"'- __________________________ 3_4]H3(B)(C)E
Calking chisel
-- Output shaft
(7) Insert the drive cone while keeping the output shaft set
for reverse.
_ _.-,- Output shaft
Drive cone
(8) Apply procedures 1 through 4 to the forward end.
Stepped surface
...__
@·\.
Thrust roller A · -~--=-~
Spring retainer
Cup spring
NOTE : 1) Fit thrust collar A so that the stepped surface
faces the roller bearing
side.
2) Check that the reverse large gear rotates
smoothly.
7-54
5-2 Reassembly of the clutch
(1) Fit the oil seal, bearing outer races and shim (output
shaft side) in the clutch case.
(2) Insert the input shaft into the clutch case.
(3) Drive the intermediate shaft into the clutch case.
Intermediate shaft
~------~
~~
_..- Input shaft
NOTES : 1) If the output shaft is not fitted into the clutch
case before driving-in the intermediate shaft,
it cannot be ass/iimbled.
2) Note the assembly direction
of the thrust
washer.
(4) Insert the output shaft into the clutch case.
Input
sh~
, Output shaft
'·-~ \
Intermediate shaft
