Chapter 8 Remote Control
_4._R_em_o_te_C_o_n_t_r_ol_A __ d;_·u_s_tm_en_t _____________________ 3,4JH3(B)(C)E

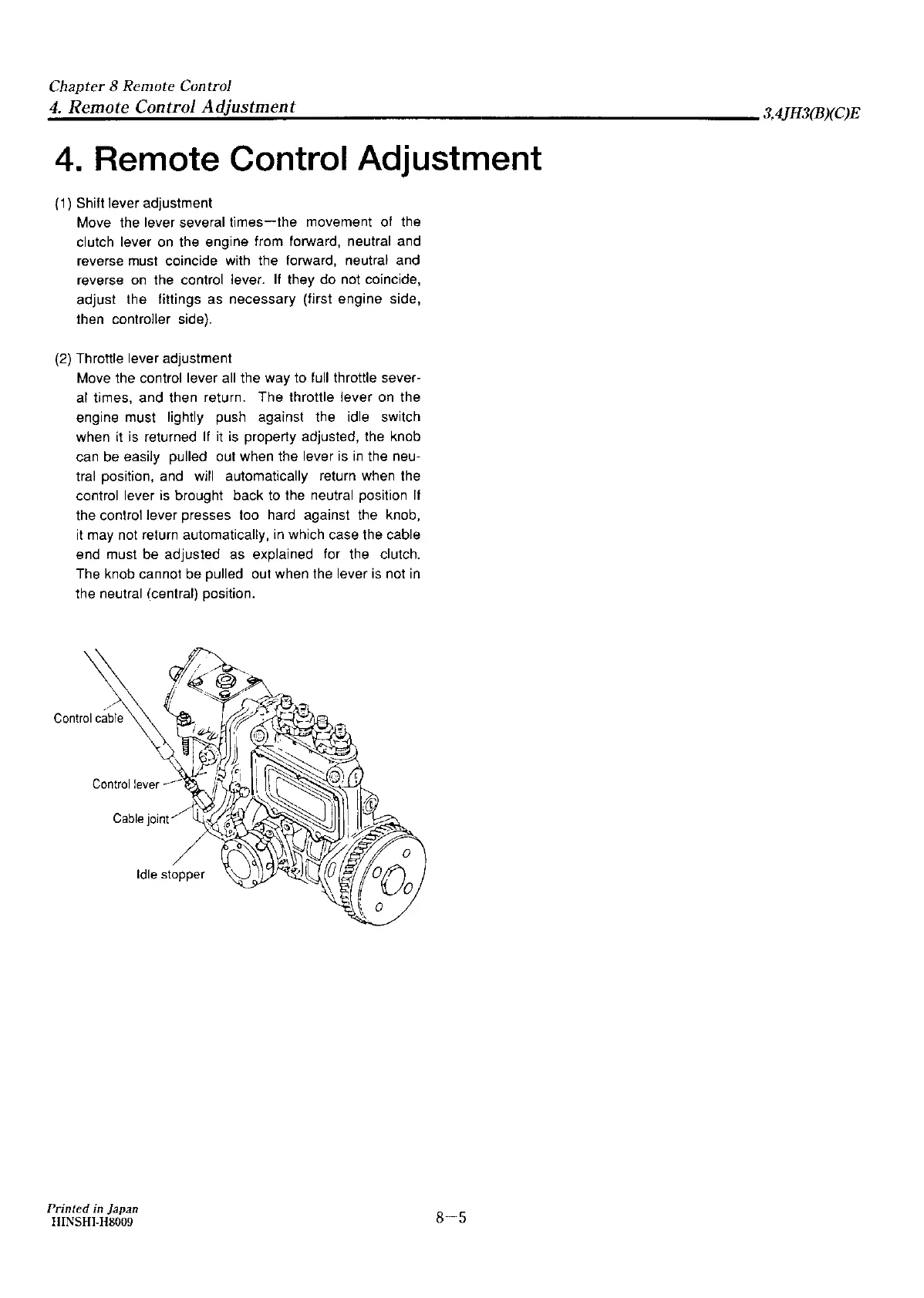

4. Remote Control Adjustment
(1) Shift lever adjustment
Move the lever several
times-the movement of the
clutch lever
on the engine from forward, neutral and
reverse must coincide with the forward, neutral and
reverse
on the control lever. If they do not coincide,
adjust the fittings as necessary {first engine side,
then controller side).
(2) Throttle lever adjustment
Move the control lever all the way to full throttle sever-
al times, and then return. The throttle lever
on the
engine must lightly push against the idle switch
when it
is returned If it is property adjusted, the knob
can
be easily pulled out when the lever is in the neu-
tral position, and will automatically return when the
control lever
is brought back to the neutral position If
the control lever presses loo hard against the knob,
ii may not return automatically,
in which case the cable
end must be adjusted as explained for the clutch.
The knob cannot
be pulled out when the lever is not in
the neutral /central) position.
Idle stopper
Printed in Japan
HrNSHI-H8009
8-5
