Yanmar 3JH3E - 4. Disassembly; 4-1 Dismanting the clutch

Chapter 7 Reduction and Reversing Gear
_4_. D_is_a_ss_e_m_b_l_y ___________________________ 3,4JH3(B)(C)E

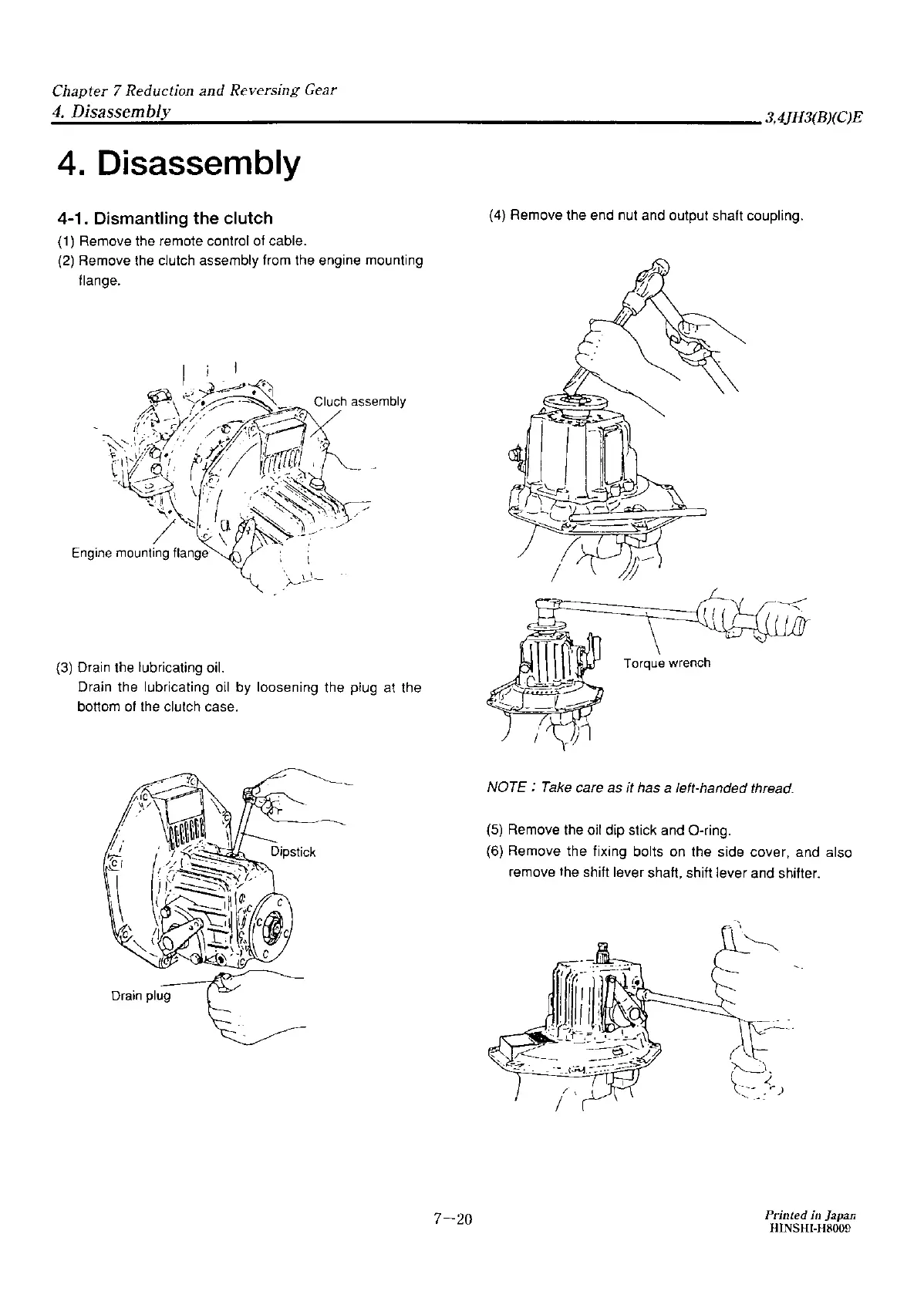

4. Disassembly
4-1. Dismantling the clutch
(1} Remove the remote control of cable.
(2) Remove the clutch assembly from the engine mounting
flange.
{3} Drain the lubricating oil.
Drain the lubricating oil
by loosening the plug al the
bottom
of the clutch case.
Drain plug
7-20
(4) Remove the end nut and output shaft coupling.
Torque wrench
NOTE: Take care as it has a left-handed thread.
(5) Remove the oil dip stick and O-ring.
{6) Remove the fixing bolts on the side cover, and also
remove the shift lever shaft, shift lever and shifter.
[l(~il
_......_.L r-z-r-.:,:
---- ~----~·~
_·- __ {~.
Printed in Japan
HINSHI-H800!l
