Chapter 7 Reduction and Reversing Gear
;:4:..-
;:;:D:;:.:is:::a;;;;ss::.:e~m~b;:.:l:l..y
___________________________
3,4JH3(B)(CJE
(7)

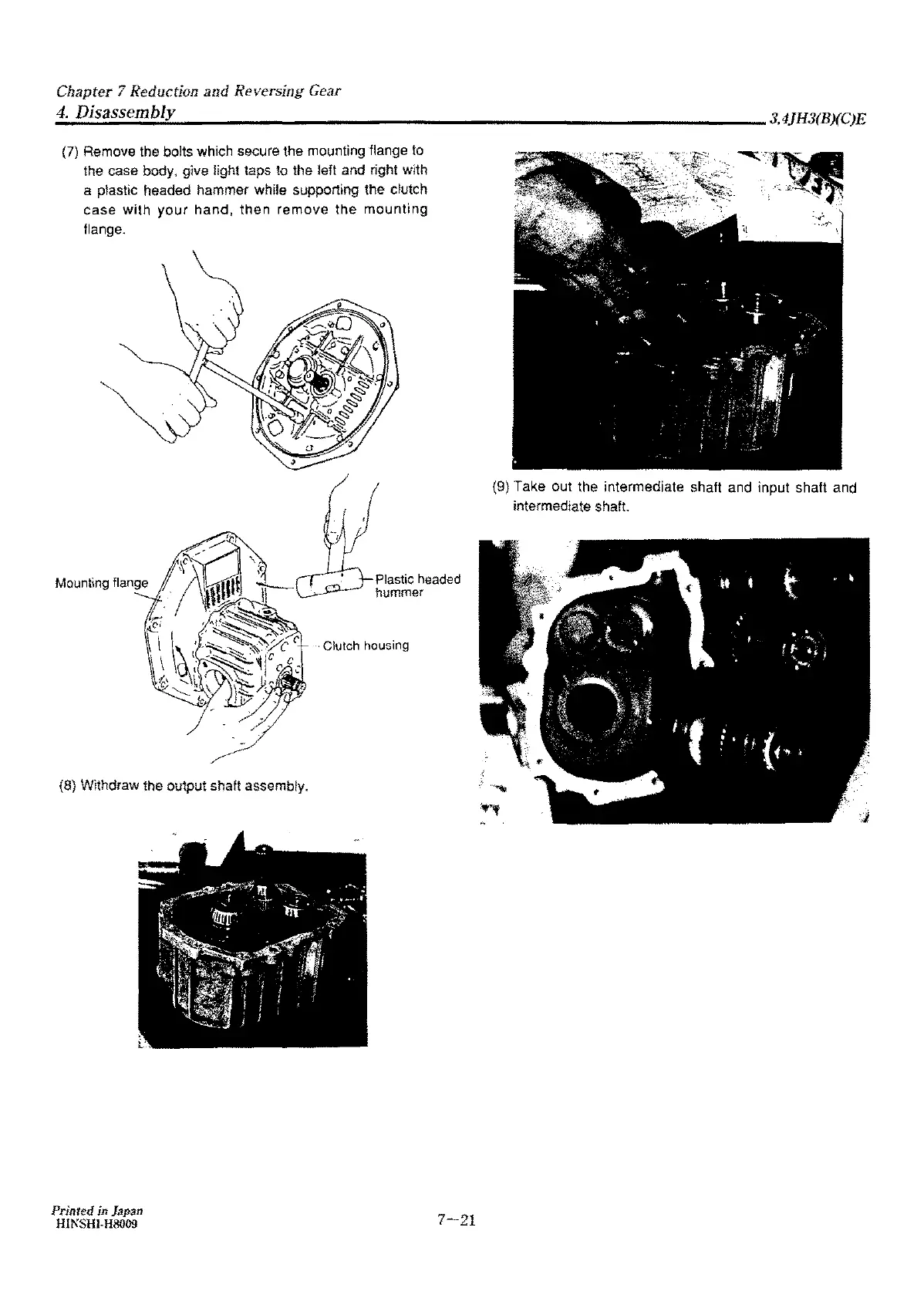

Remove the bolts which secure the mounting flange
to
the case body, give light taps to the left and right with
a plastic headed hammer while supporting the clutch
case
with
your
hand,
then
remove
the
mounting
flange.
Mounting
flange
Plastic
headed
hummer
(8) Withdraw the output shaft assembly.
Printed
in Japan
HINSHl-H8009
Clutch housing
7-21
(9) Take out the intermediate shaft and input shaft and
intermediate shaft.
