Chapter 7 Reduction and Reversing Gear
;;:5;:_,
:.:R;.:;e::;as;;;;s:.::,em=b:.:.IY'--
__________________________
3,4JH3(B)(C)E
5-3

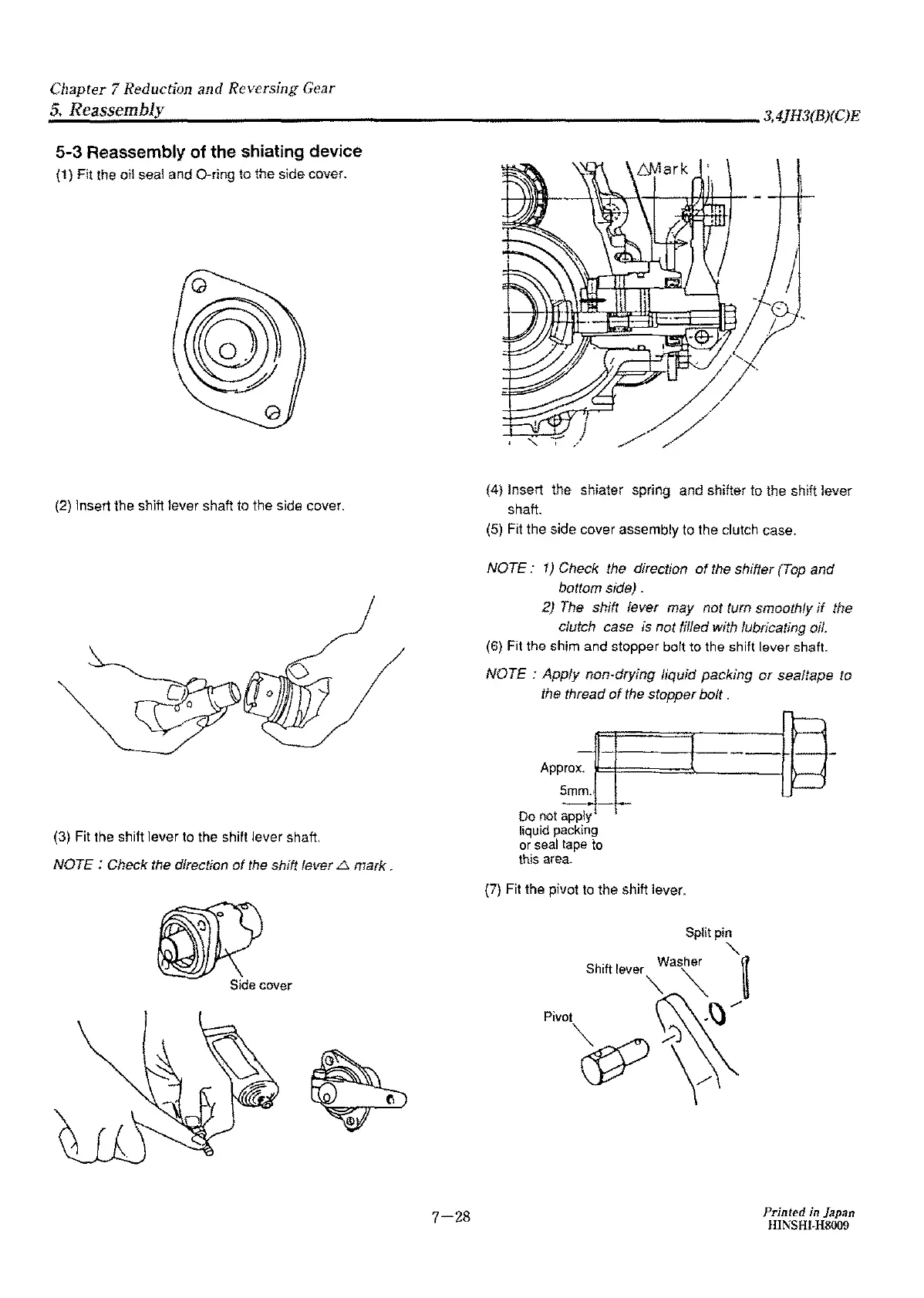

Reassembly of the shiating device
(1) Fit the oil seal and O-ring to the side cover.
(2) Insert the shift lever shaft to the side cover.
(3) Fit the shift lever to the shill lever
shaft
NOTE ; Check the direction
of
the shift lever Ll.
mark.
~
Side
cover
7-28
/
~~0~-
',
/
/
,1/
(4) Insert the shiater spring and shifter
to
the shift lever
shaft
(5) Fit the side cover assembly
to
the clutch case.
NOTE:
1)
Check the direction
of
the shifter (Top and
bottom side) .
2}
The
shift lever may not tum smoothly
if
the
clutch case
is
not filled with lubricating oil.
(6) Fit the shim and stopper bolt to the shift lever shaft.
NOTE : Apply non-drying liquid packing
or
sea/tape to
the thread
of
the stopper bolt .
·t-----;-.------1-1--...J
Approx.
5mm.,
Do not apply
liquid
packing
or
seal
tape
to
this
area.
(7) Fit the pivot to the shift lever.
Split pin
'
Was~
~
Pivot
~\).,.,,
~\
Printed
in
Japan
HINSHI-H8009
