Chapter 4 Intake and Exhaust System
_Z_E_J._Kh_a_u_s_t_S~y_st_e_m __________________________ i-OH~BXC)E
2. Exhaust System
2-1 Construction
There are two types of mixing elbows, the L-type and the
U-type. The mixing elbow is attached to the exhaust
man·
ifold. Refer to the exterior diagrams included here.

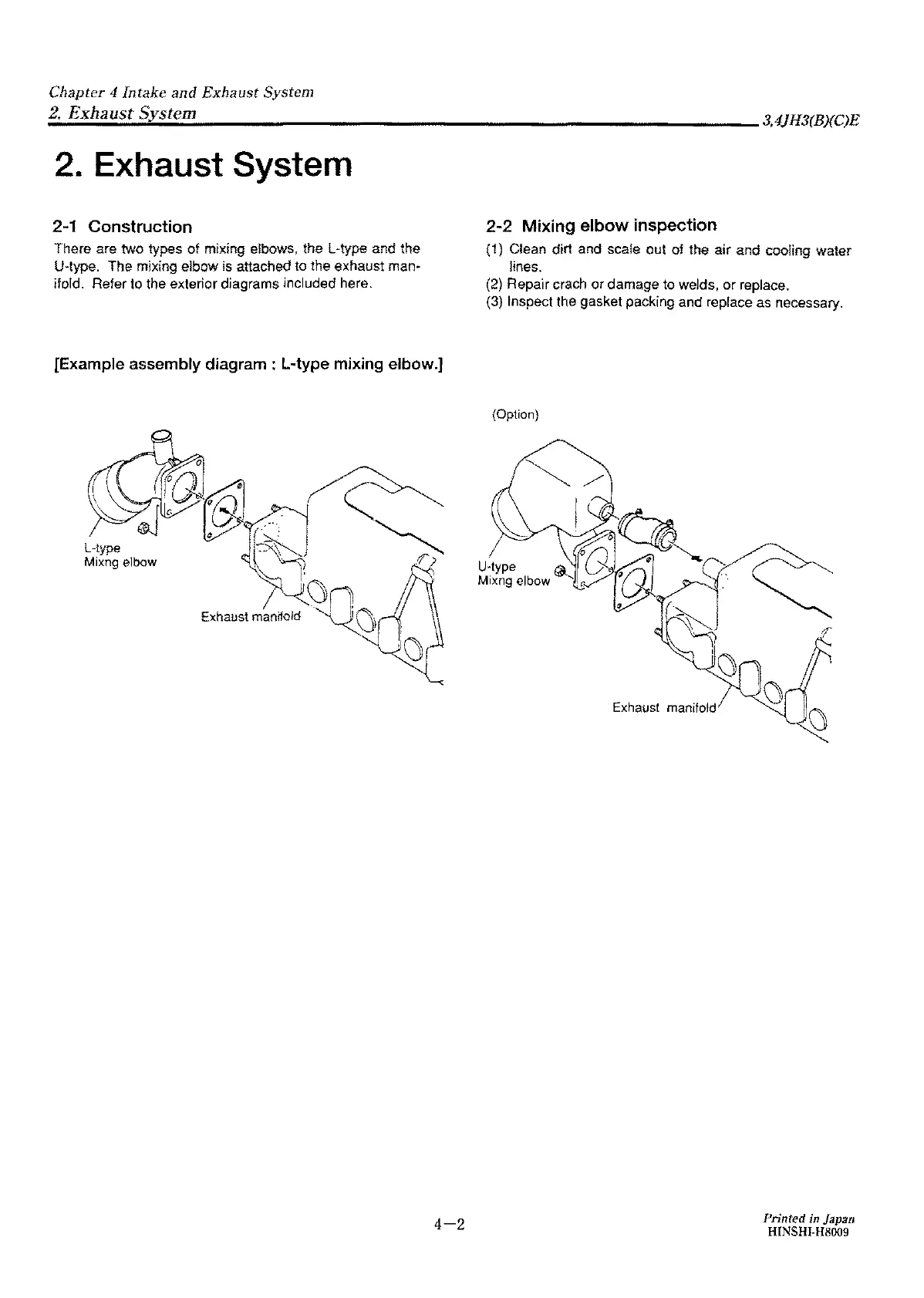

[Example assembly diagram: L~type mixing elbow.]
4-2
2-2 Mixing elbow inspection
( 1) Clean dirt and scale out of the air and cooling water
lines.
(2) Repair crach
or damage to welds, or replace.
(3) Inspect the gasket packing and replace as necessary.
(Option}
U-type
Mixng
elbow
/4 .
Exhaust manifold
Prfored in Japan
HINSHI-H8009
