Chapter 7 Reduction and Reversing Gear
.:2:... S:;:;h~1~·ft~in~g.:....:;D;.:;e..;.v1;.;·c;.:;e __________________________ 3,4JH3(B)(C)E

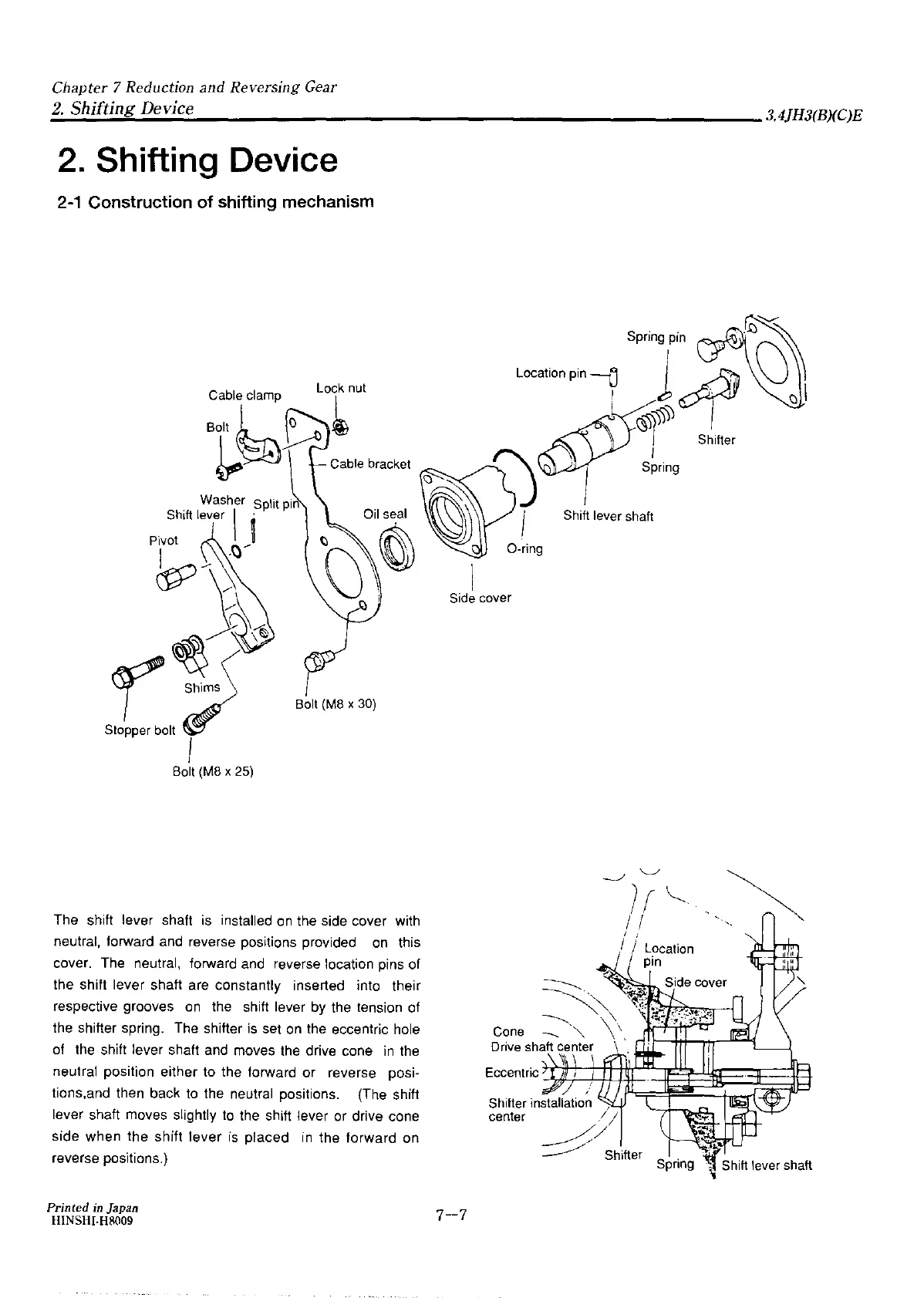

2. Shifting Device
2-1 Construction of shifting mechanism
Washer Split pin
Shift lever l ff
Pivot ")
I ·V
19~~,
~\.
<f ~.\
Stopper bolt ✓
I
Bolt (MS x 25)
Bolt (MS x 30)
The shift lever shaft is installed on the side cover with
neutral, forward and reverse positions provided on this
cover. The neutral, forward and reverse location pins of
the shift lever shaft are constantly inserted into their
respective grooves on the shift lever by the tension of
the shifter spring. The shifter is set on the eccentric hole
of the shift lever shaft and moves the drive cone in the
neutral position either to the forward or reverse posi-
tions.and then back to the neutral positions. (The shift
lever shaft moves slightly to the shift lever or drive cone
side when the shift lever is placed in the forward on
reverse positions.)
Printed in Japan
HINSHI-H8009
7-7
--------- . ~-ID- ✓·
--
~
Eccentric
;
Shifter installation ,
center .
1
/
~/
==-------- Shifter
~"'=-~
